How to Avoid Particle Contamination in High-Precision Cleanroom Transmission?

1. Why Particle Contamination Ruins Cleanroom High-Precision Transmission

For semiconductor, pharmaceutical, precision electronics and aerospace cleanrooms, tiny particle shedding from moving transmission parts is the hidden killer of production yield and product qualification rate. Even 0.1μm micro-particles can cause wafer scratches, sterile drug contamination, inaccurate optical measurement and equipment jitter.

Most cleanroom failures stem from traditional transmission screw nuts, which bring three major contamination risks:

- Lubricant residue pollution:

Ordinary metal and plastic nuts rely on grease lubrication. Volatilization, aging and overflow of lubricants produce continuous chemical residues and floating particles.

- Friction particle shedding:

Rough thread surfaces generate debris during high-frequency reciprocating operation, which falls into the cleanroom working environment.

- Dust accumulation gap:

Unsealed thread structures easily adsorb floating dust, causing secondary particle release during equipment operation.

These defects make traditional components unable to meet ISO 14644-1 Class 1 to Class 1000 ultra-high clean standards.

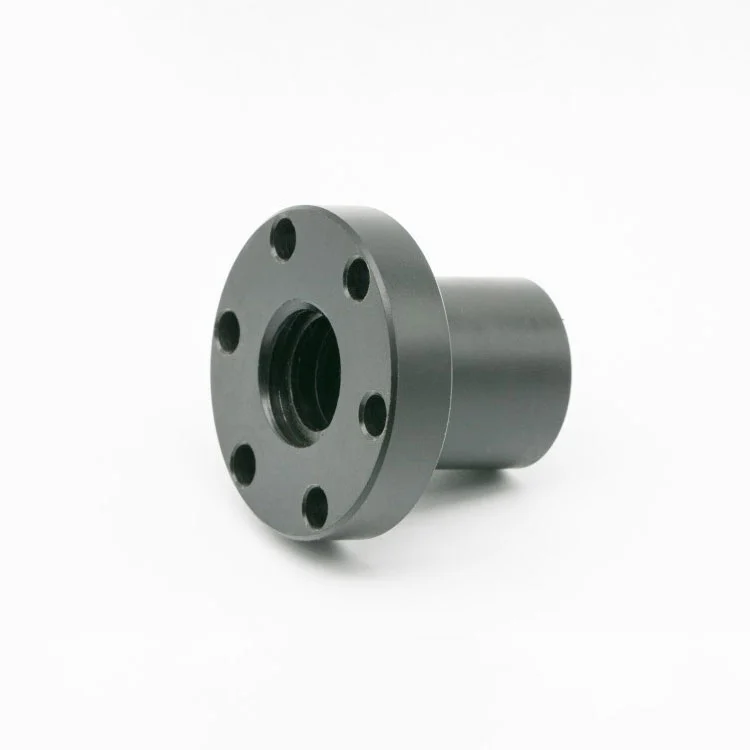

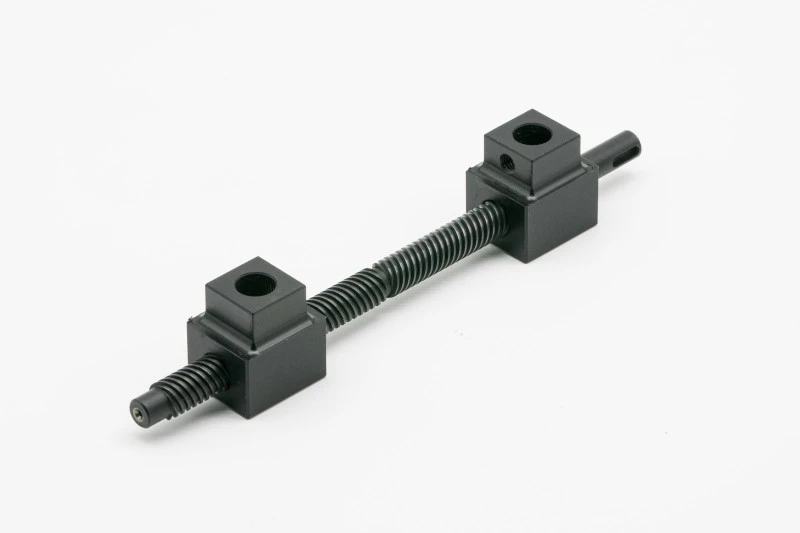

2. Core Solution: Lubricant-Free Modified PEEK Trapezoidal Screw Nut

To completely avoid cleanroom particle contamination, Maitu’s high-purity Peek Trapezoidal Screw Nut for Cleanroom Tools adopts full-process anti-particle design, solving all pain points of traditional transmission parts. It is the ideal upgrade part for high-precision cleanroom tools and equipment.

2.1 Ultra-high Purity Material Eliminates Chemical Contamination

- Adopts ICP-MS tested high-purity modified PEEK, with extremely low metal and alkali metal content, far purer than ordinary PEEK materials.

- Material is non-toxic and chemically inert, resistant to various cleanroom disinfectants and cleaning agents, no degradation and no residue leakage.

2.2 Zero-Lubricant Self-Lubricating Design Avoids Grease Pollution

- Proprietary self-lubricating formula achieves a low friction coefficient of 0.08–0.24, realizing smooth and silent operation without any lubricants.

- Completely eradicates all contamination risks caused by lubricant volatilization, aging and overflow, fully compliant with pharmaceutical and semiconductor cleanroom regulations.

- No regular oil replacement required, greatly reducing cleanroom maintenance frequency and secondary pollution risks.

2.3 Ultra-Smooth Surface Prevents Particle Adhesion

- Adopts precision polishing technology, surface roughness reachesRa ≤ 0.2μm, ultra-smooth surface refuses dust adhesion.

- Integrated sealed thread structure blocks external dust from entering thread gaps, avoiding particle accumulation and friction shedding.

- Ultra-low particle emission: operating particle release ≤1 particle/ft³ (≥0.1μm), meeting Class 1 ultra-high cleanroom requirements.

2.4 High Dimensional Stability Ensures Long-Term Clean & Precise Transmission

- Dimensional tolerance up to ±0.005mm, matching high-precision cleanroom transmission demands without jitter and offset.

- Low thermal expansion coefficient avoids deformation under cleanroom temperature changes, maintaining stable long-term operation accuracy.

3. Main Application Scenarios for Cleanroom Anti-Particle Transmission

This Peek Trapezoidal Screw Nut for Cleanroom Tools is widely used in high-standard clean environments that require zero contamination and high precision:

- Semiconductor equipment:

wafer handling robots, lithography machines, etching equipment

- Pharmaceutical GMP cleanroom:

drug filling machines, tablet presses, sterile packaging equipment

- Precision testing instruments:

CMM, optical measuring tools, particle counters

- Electronics assembly:

SMT placement machines, microelectronic assembly equipment

- Aerospace precision processing:

high-precision component cleanroom processing tools

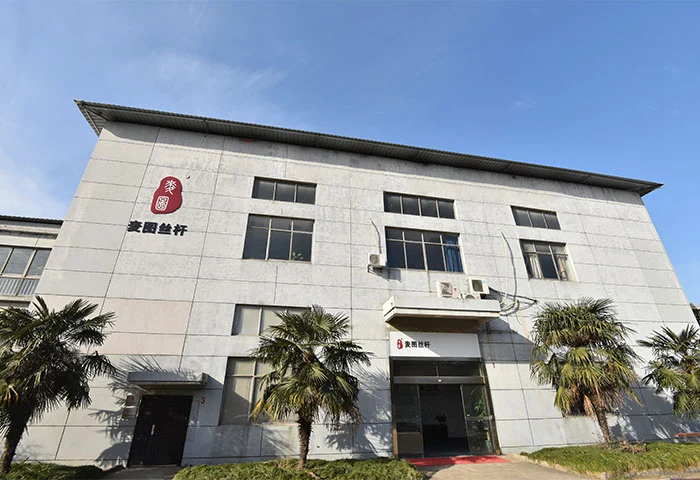

4. Factory Advantages & Custom Support

- Cleanroom production:

Manufactured and packaged in Class 100 dust-free workshop, ready for direct installation without secondary cleaning.

- Full testing support:

Provides ICP-MS purity test, particle emission test and surface roughness test reports.

- Customizable service:

Supports custom size, thread pitch, anti-static treatment and logo marking according to equipment drawings.

5. Final Tips

Particle contamination in cleanroom transmission is avoidable. Replacing traditional lubricated screw nuts with lubricant-free, low-particle, high-purity PEEK trapezoidal screw nuts is the most cost-effective solution to stabilize cleanroom cleanliness, improve product yield and reduce maintenance costs.

Contact us to get professional cleanroom transmission solutions and free product testing!
