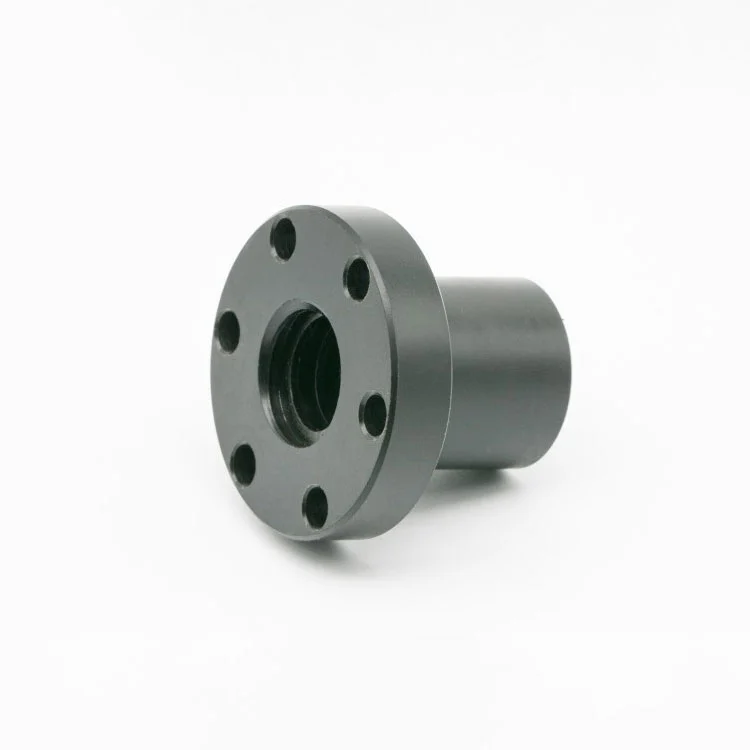

How To Maintain PEEK Trapezoidal Screw Nuts On Textile Production Equipment?

PEEK trapezoidal screw nuts deliver exceptional wear resistance and chemical stability for textile machinery transmission, but their actual service life and performance depend heavily on correct day-to-day maintenance. Textile workshops expose linear drive components to airborne fibers, lubricating oils, finishing chemicals and high humidity. Without proper care, even premium modified PEEK nuts can suffer premature wear, thread blockage or dimensional drift, leading to unexpected machine stops and production losses. Following a structured maintenance routine maximizes component lifespan and preserves transmission accuracy.

Pre-Installation Preparation For Long-Term Performance

Good maintenance starts with correct installation. Poor initial setup is a top cause of uneven wear and early failure.

1. Install in a clean workspace free of loose textile fibers, dust and oil residue. Wipe the mounting surface and matching screw shaft thoroughly to remove contaminants before assembly.
2. Align the nut perfectly with the lead screw to avoid eccentric loading. Misalignment causes accelerated unilateral thread wear and increased operating noise.
3. Fasten to the specified torque value. Over-tightening distorts the nut body and increases friction; loose mounting leads to play and positioning inaccuracy.

Daily & Periodic Cleaning Routine

Fiber ingress is the most common failure mode for textile machinery screw nuts. Regular cleaning prevents buildup inside thread profiles.

1. Daily care: Wipe the nut surface and exposed thread gaps with a clean, lint-free cloth after each production shift to remove surface lint, dust and oil stains.
2. Weekly deep clean: For equipment running in high-oil or heavy-fiber environments such as ring spinning frames, perform a more thorough cleaning once per week to clear accumulated debris from thread grooves.
3. Do not use sharp metal tools to scrape thread surfaces, as they can scratch the PEEK material and create edges that trap more fibers. Avoid high-pressure air blasting, which forces fibers deeper into the thread gap.

Periodic Inspection & Replacement Schedule

Routine inspections catch wear and damage before they cause production downtime.

1. Conduct a full inspection every 4–6 months. Check for thread wear, loose fasteners, structural deformation and abnormal operating noise.
2. Key warning signs of degradation: increased transmission backlash, inconsistent yarn tension, rising operating noise or visible thread surface damage.
3. Replace the nut immediately if abnormal conditions are found. Continuing to run a worn nut risks damage to the matching screw shaft and more costly equipment repairs.
4. Under proper maintenance, textile-grade modified PEEK trapezoidal nuts achieve a service life of 8–12 years, significantly longer than standard plastic or metal alternatives.

Lubrication Guidelines

PEEK material has inherent self-lubricating properties with a friction coefficient of 0.1–0.28. Most operating conditions do not require additional lubrication.

1. For continuous high-load, high-speed (up to 800 cycles per hour) or high-temperature textile applications, a small amount of textile-specific lubricating oil may be applied to further reduce wear.
2. Do not use general-purpose industrial greases or harsh chemical lubricants. Incompatible fluids can degrade the PEEK material and cause premature failure.
3. Wipe excess lubricant from the surface after application to prevent attracting dust and fiber buildup.

Spare Part Storage Best Practices

Improper storage damages PEEK components before they are even installed.

1. Store spare nuts in a dry, well-ventilated warehouse.
2. Avoid long-term exposure to environments above 260°C, high humidity above 90% or heavy oil vapor, which can cause material degradation and dimensional deformation.
3. Keep original packaging intact until installation to protect against dust and contamination.

Maintenance Focus By Textile Process

Different production lines present different environmental stresses; adjust maintenance frequency accordingly.

Spinning machinery (ring spinning, rotor spinning):

Heavy airborne fiber load. Prioritize frequent cleaning to prevent thread blockage.

Weaving machinery (air-jet, rapier looms):

High-speed cyclic operation. Focus on inspecting thread wear and backlash to maintain weft insertion accuracy.

Dyeing & finishing machinery:

High heat, high humidity and chemical exposure. Check for dimensional deformation and material integrity at each inspection.

Winding & warping equipment:

Precision tension control. Verify nut tightness and alignment regularly to avoid material waste.

Common Maintenance Mistakes To Avoid

1. Using high-pressure compressed air to clean fibers — it pushes lint deeper into thread gaps and accelerates wear.
2. Over-lubricating — excess oil traps dust and creates abrasive paste that wears threads faster.
3. Ignoring small alignment errors — minor misalignment causes rapid uneven wear over time.
4. Running nuts past their wear limit — worn nuts damage the more expensive screw shaft, increasing total repair cost.

FAQ

Q1: How often should I clean PEEK trapezoidal nuts on high-speed spinning frames?

A: For high-fiber spinning environments, perform daily surface wiping and a full weekly deep clean to prevent fiber buildup inside the threads.

Q2: Do PEEK screw nuts require regular grease lubrication?

A: No. Modified PEEK has built-in self-lubricating performance. Additional lubrication is only recommended for continuous heavy-load, high-speed operation, and only with textile-compatible lubricating oil.

Q3: What are the clear signs that a PEEK trapezoidal nut needs replacement?

A: Increased transmission backlash, abnormal operating noise, inconsistent product tension or visible thread wear are all indicators. Inspect every 4–6 months to catch issues early.

Q4: Can the nuts be stored in the dyeing workshop environment?

A: No. Long-term exposure to high temperature, high humidity and chemical fumes will degrade the material. Store spare parts in a separate dry, cool warehouse.
