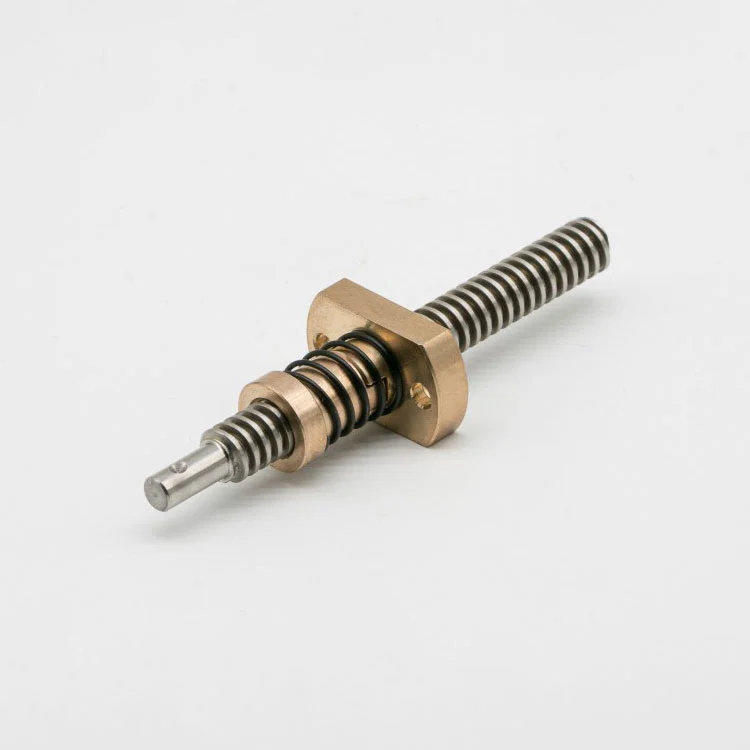

Spring Loaded Anti-Backlash Nut for CNC Machine

As a professional manufacturer focusing on precision trapezoidal screws and nuts, Maitu provides high-performance Spring Loaded Anti-Backlash Nut for CNC Machine, specifically designed to solve the lost-motion error caused by backlash in standard trapezoidal nuts during CNC machine bi-directional movements. According to the specific models of your CNC machines, load requirements, working temperature and positional accuracy demands, we can customize key parameters such as thread specification (30-degree trapezoidal or 29-degree ACME), nut structure, spring preload tension, flange design and material selection. Its innovative spring-loaded design continuously exerts consistent preload, maintaining zero axial play throughout the service life, and matches the high-precision transmission needs of CNC machine tools without increasing excessive torque.

Product Technical Specifications

Note: * indicates special specifications, which can be customized according to the model, load requirements and positional accuracy demands of your CNC machines.

Core Advantages for CNC Machine Applications

1. Spring-loaded dynamic backlash elimination: Adopts advanced spring-loaded compensation mechanism, which continuously exerts consistent preload to eliminate axial play (0.1mm-0.3mm inherent in standard nuts), ensuring zero backlash throughout the service life, and effectively avoiding lost-motion errors in CNC machine bi-directional feed movements, improving machining precision.

2. Expertly calibrated torque balance: After 12+ years of R&D optimization, the preload is precisely adjusted to balance clearance elimination and low driving torque, ensuring high responsiveness of CNC machine feed mechanisms without excessive torque increase or accelerated wear, avoiding the need for oversized motors.

3. CNC-specific wear resistance: Made of wear-resistant bronze alloys or self-lubricating engineering plastics (PEEK/POM), paired with precision-rolled threads, the surface hardness reaches HRC 50-55, reducing wear rate by 50% compared with ordinary anti-backlash nuts, adapting to long-term high-frequency operation of CNC machines.

4. High adaptability to CNC working conditions: It can operate stably in the temperature range of -20℃ to 280℃, resisting the impact of cutting fluid and metal chips in CNC machining environments, ensuring stable transmission and positioning accuracy even in harsh working conditions.

Key Performance Parameters

1. Material options: Available in high-quality bronze alloy (high load-bearing capacity, excellent heat dissipation) and self-lubricating engineering plastics (PEEK/POM, lightweight, corrosion-resistant), matching different CNC machining environments and load requirements.

2. Positional accuracy: Thread precision reaches ISO 4 level, pitch error is less than ±0.003mm, backlash is controlled within 0.01mm, meeting the high-precision positioning needs of CNC milling, turning and engraving machines.

3. Wear resistance & stability: After special surface strengthening treatment, the Spring Loaded Anti-Backlash Nut for CNC Machine has excellent wear resistance and structural stability, and can maintain stable performance under long-term high-frequency operation of CNC machines without deformation or failure.

4. Preload adjustability: Equipped with adjustable preload system, the preload tension can be fine-tuned according to the specific load and accuracy requirements of CNC machines, ensuring optimal performance in different application scenarios.

Our Advantages in CNC Precision Component Manufacturing

1. CNC-specific R&D strength: Our R&D team has 10 technical engineers with more than 10 years of experience in precision transmission components, focusing on solving the backlash and precision problems of nuts in CNC machine applications, and mastering core technologies such as spring-loaded preload calibration.

2. Strict production control: Equipped with 10 professional production lines, including advanced thread rolling machines and high-precision CNC lathes, and a dedicated precision testing workshop. Every Spring Loaded Anti-Backlash Nut for CNC Machine undergoes torque consistency test and backlash detection before leaving the factory to ensure product qualification.

3. Rich customization experience: We have produced more than 16,000 types of precision transmission components, and have rich customization experience for CNC machine-specific nuts, which can be customized according to CNC machine models, thread types (30-degree trapezoidal/29-degree ACME) and accuracy requirements.

4. Professional qualification certification: We have passed ISO 9001 quality management system certification, boasting a portfolio of patents, and our products have been recognized by more than 5,000 domestic and foreign customers, including many CNC machine manufacturers.

One-Stop Customization & Service

1. Professional demand consultation: Our technical team provides one-on-one CNC machine adaptation consultation, deeply understands the model, load, positional accuracy and working environment of your CNC machines, and provides targeted product solutions.

2. Customization process support: For CNC machine-specific customization, we provide 2D/3D drawing design, sample trial production, precision testing and other one-stop services, ensuring that the product fully matches your CNC machine feed and positioning mechanisms.

3. Professional packaging & transportation: Products are packaged in moisture-proof, dust-proof and anti-collision packaging, avoiding damage and contamination during transportation, ensuring that the product performance is not affected.

4. Efficient delivery guarantee: Standard models suitable for common CNC machines are in stock, with a delivery time of 3-7 working days; customized products are delivered within 10-18 working days, with professional logistics to ensure timely arrival.

5. After-sales technical support: Provide 24-month quality guarantee period, and send professional technicians to provide on-site installation, debugging and maintenance guidance for bulk orders, solving your use problems in time.

CNC Machine Use & Maintenance Guide

1. Cleaning specifications: Before installation, use high-purity alcohol and lint-free clean cloth to wipe the Spring Loaded Anti-Backlash Nut for CNC Machine surface and spring mechanism, do not use ordinary cleaning agents or water, so as not to affect the preload performance and thread engagement accuracy.

2. Regular inspection & maintenance: It is recommended to check the preload tension, thread meshing status and wear degree every 6 months (according to the frequency of CNC machine use). If there is any abnormality, adjust the preload or replace the product in time to avoid affecting machining precision.

3. Storage requirements: Store in a clean, dry, low-humidity environment (temperature 10-20℃, humidity ≤30%), avoid contact with cutting fluid, metal chips and corrosive substances, and prevent the spring mechanism from rusting or failing.

4. Installation precautions: Install in a clean environment, wear dust-free gloves during installation, ensure accurate alignment with the CNC machine screw, avoid forced installation, and prevent damage to the spring mechanism and thread structure.

Typical Application Fields

1. CNC milling machines: Used in the feed and positioning mechanisms of vertical and horizontal CNC milling machines, ensuring high-precision movement of the workbench and spindle, improving the surface quality and dimensional accuracy of machined parts.

2. CNC turning machines: Applicable to the tool rest feed mechanism of CNC lathes, eliminating backlash in bi-directional movement, ensuring stable and accurate tool feeding, and reducing machining errors.

3. CNC engraving machines: Used in the X/Y/Z axis transmission mechanisms of CNC engraving machines, ensuring high positional repeatability, adapting to fine engraving and carving needs, and improving engraving precision and efficiency.

4. Other CNC equipment: Suitable for CNC boring machines, CNC grinding machines and other precision CNC equipment, providing reliable anti-backlash transmission support for various linear motion mechanisms.

Common Questions & Answers

1. How does the spring loaded anti-backlash nut improve the machining precision of CNC machines?

Our product uses a spring-loaded mechanism to eliminate the inherent axial play (0.1mm-0.3mm) of standard nuts, avoiding lost-motion errors in CNC machine bi-directional feed movements, and ensuring that the positional accuracy and repeatability meet the high-precision machining requirements of CNC equipment.

2. Can the preload of the product be adjusted according to different CNC machine models?

Yes, we provide an adjustable preload system, and our engineering team can fine-tune the preload tension according to the specific load, accuracy requirements and model of your CNC machine, ensuring optimal performance.

3. Which material is more suitable for my CNC machine: bronze or PEEK?

Bronze alloy is suitable for heavy-load CNC machines (such as CNC milling machines) because of its high load-bearing capacity and excellent heat dissipation; PEEK is suitable for CNC machines in food, medical or semiconductor industries because of its self-lubricating, lightweight and corrosion-resistant properties.

4. What is the service life of the product in long-term CNC machine operation?

Under normal use and regular maintenance, the service life of the product is more than 5 years, which is 50% longer than that of ordinary anti-backlash nuts, adapting to the long-term high-frequency operation needs of CNC machines.

5. Do you provide precision test reports for the product?

Yes, we can provide backlash detection reports, torque consistency test reports and thread precision test reports to meet the audit requirements of your CNC machine production and quality control.

6. How to solve the problem if the product has excessive backlash during use?

Our technical team will provide on-site detection and debugging services for the Spring Loaded Anti-Backlash Nut for CNC Machine, adjust the preload tension or check the wear status, and provide free replacement if there is a product quality problem within the guarantee period.
