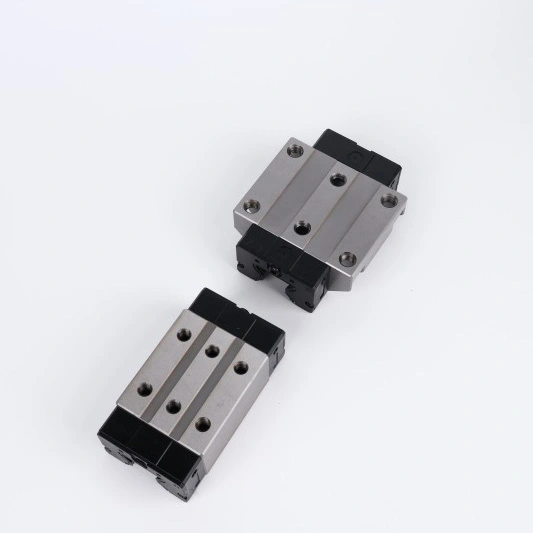

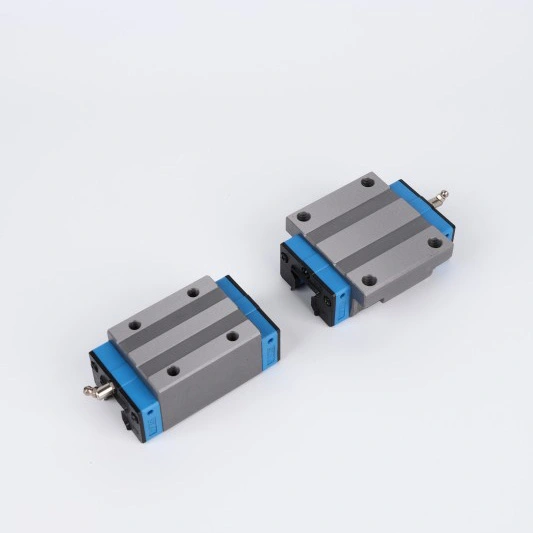

High Series Linear Guide Block Flange Type

FAQ

1. Why are flange-type sliders superior to square sliders in high-load applications?

Flange-type sliders increase the contact area with the worktable through a widened flange face, thus providing better support stability. This design distributes vertical loads and lateral forces more evenly, especially under complex torque loads or high-intensity vibrations. Flange-type sliders significantly reduce deformation, ensuring the operating accuracy of heavy-duty machining centers or large robots.

2. How do Metau's High Series sliders handle debris interference in heavy-duty machining?

We have specifically designed a protection solution for heavy-duty industrial environments. The sliders are equipped with a multi-layer contact seal system and integrated steel scrapers at the front. This combination effectively removes coarse metal shavings and fine dust from the guide rail surface, preventing impurities from entering the ball bearing circulation zone, thereby protecting the internal structure of the bearing steel and extending maintenance intervals in harsh environments.

3. What guarantees are there regarding the installation accuracy of your high-assembly series products?

Metour performs precision grinding on all mounting reference surfaces of the sliders. This ensures perfect flatness and parallelism between the slider and the guide rail, and between the slider and the worktable. Each product strictly adheres to international precision standards, ensuring that the interchangeability and motion consistency of the sliders remain at an extremely high level during replacement or large-scale assembly, meeting the needs of equipment such as precision grinding machines.

Why Choose Maitu？

For the high standards of linear motion systems required in heavy-duty industrial applications, Maitu, with its deep manufacturing expertise and flexible supply chain, has become the trusted choice for global buyers:

1. Heavy-Duty Manufacturing Expertise

Maitu possesses profound technical expertise in linear guides. Our High Series Linear Guide Block Flange Type is designed specifically for heavy-duty machine tools and large-scale automation systems. By optimizing the internal structure of the slider (increasing the ball diameter and circulation loop), our products offer 40% higher load capacity than standard models. Based on 12 years of precision manufacturing experience, we ensure that every product maintains micron-level precision under complex torque loads.

2. Flexible Dual-Source Strategy

We understand the diverse budget and brand requirements of different projects. Maitu offers a unique dual-source solution:

In-house R&D Solutions: We provide Maitu's self-developed series, offering high cost-effectiveness and meeting international precision standards, helping customers optimize procurement costs.

International Brand Partnerships: As an officially authorized partner of several globally renowned guide rail brands, we also provide certified original components from international brands. Whether you prioritize ultimate cost-effectiveness or brand endorsement, we can meet your needs in one stop.

3. Extreme Durability Standards

We insist on using high-performance SUJ2 high-carbon chromium bearing steel and employ an overall quenching process to stabilize the hardness at 58-62 HRC. Combined with a multi-layer contact sealing system and integrated scraper design, the slider maintains an exceptionally long service life even in metal-chipped or heavily contaminated processing environments, significantly reducing equipment downtime for our customers.

4. Rigorous Technical Validation

Every high-assembly flange slider undergoes load distribution analysis, operational accuracy testing, and durability verification before leaving the factory. Our two major production bases in Suzhou and Dongguan strictly adhere to the ISO 9001 quality management system. Through our proprietary ERP system, we achieve full digital traceability from material warehousing to finished product delivery, ensuring that all products delivered to our 5000+ customers worldwide are of the highest quality.

Welcome to contact us and buy our products. We can offer you high quality High Series Linear Guide Block Flange Type for you, you can tell us your requirements!
