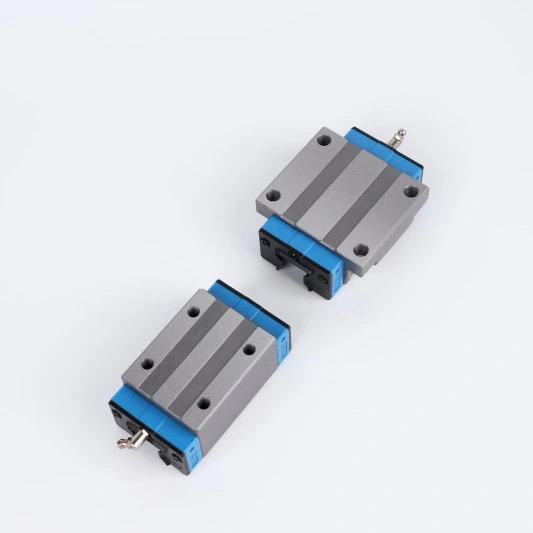

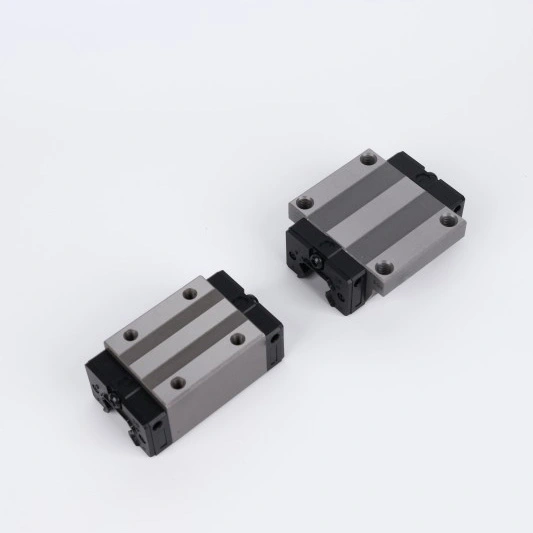

Low Series Linear Guide Block Wide Type

Application Industries

• Compact automation systems and robotics

• Semiconductor manufacturing equipment

• Precision medical devices and instruments

• Electronic assembly automation

• Optical positioning systems

Our Low Series Linear Guide Block Wide Type passes quality verification, including dimensional accuracy testing, load distribution analysis, and running performance validation. Each unit is manufactured in compliance with international precision standards, ensuring reliable performance in applications where space optimization and load capacity are equally critical.

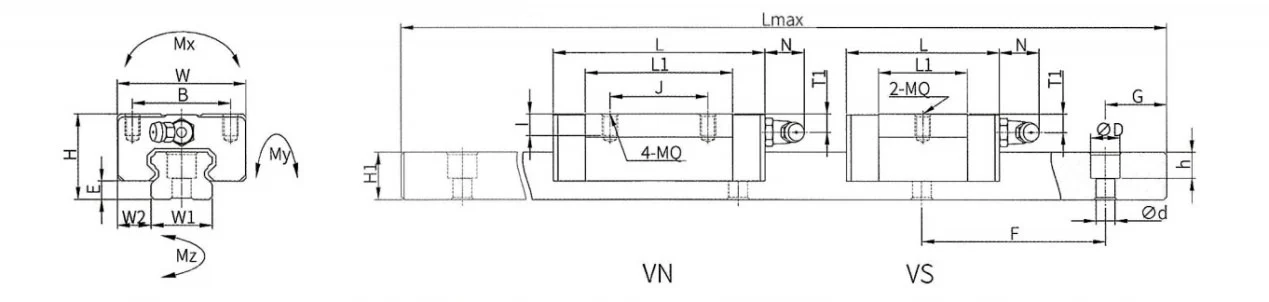

Production Parameters

Why Choose Us?

Choosing Maitu means choosing a technical partner with over 12 years of experience in precision transmission manufacturing. Our strengths in the low-profile, wide-width linear guide block field are reflected in the following four dimensions:

1. Expertise & Heritage: Since its establishment in 2014, Maitu has accumulated rich technical expertise, specializing in ball screws and linear drives for over 12 years. We are not only product manufacturers but also professional manufacturers with capabilities across the entire chain of R&D, production, sales, and service. With over 16,000 production experiences, we understand how to solve customers' complex transmission challenges through precision manufacturing.

2. Innovative Space Optimization: Our Low Series Linear Guide Block Wide Type is specifically designed for space-constrained precision equipment. Through advanced finite element analysis technology, we achieve 20% higher load capacity than traditional low-profile models while reducing installation height by 30%. Maitu is committed to providing you with superior rigidity and vibration absorption performance in compact spaces.

3. Quality Assurance & ERP Tracing: As an ISO 9001 certified company, METU boasts a comprehensive processing and inspection process. From lead screw rolling to slider precision grinding, every step is under strict monitoring. Our self-developed ERP system enables full-process traceability of production, ensuring that every product delivered to over 5,000 customers worldwide meets international precision standards.

4. Customization & Global Support: With two major manufacturing bases in Suzhou and Dongguan, METU has 10 production lines, enabling rapid response to customized needs for various materials (carbon steel, stainless steel, bronze, PEEK, PTFE, etc.) and special end processing. We support orders starting from 1 piece (MOQ: 1 PCS) and provide comprehensive support from drawing review to professional technical confirmation before mass production, ensuring your design is perfectly implemented.

FAQ

1. What are the core advantages of the Low Series Linear Guide Block Wide Type compared to standard guide sliders?

This series of sliders is designed for equipment with height constraints and the need to withstand high torque loads. Its height is approximately 30% lower than the standard series, resulting in a lower center of gravity and smoother operation. The wide-width structure increases the support area, giving it greater torque resistance and stability than traditional sliders in single-axis operation or integration in confined spaces.

2. How does Maitu ensure the fit between sliders and guideways in high-precision applications?

All our slider mounting surfaces undergo high-precision grinding, achieving a hardness of 56-60 HRC. Maitu uses advanced testing equipment to verify the dimensional tolerances and preload levels of each batch. For projects with high precision requirements, we ensure the flatness and consistency of the sliders in high-speed and space-constrained applications through rigorous alignment testing and operational performance verification.

3. Do you support special materials or customization for applications in extreme environments?

Yes. In addition to standard high-strength alloy steel, Maitu has extensive experience in processing special materials. We can provide customized solutions using materials such as stainless steel, PEEK, or PTFE based on your application environment (e.g., semiconductor vacuum chambers or medical cleanrooms), and offer optional integrated multi-lip seals and automatic lubrication interfaces to enhance dustproof and corrosion resistance.

4. What is the MOQ for Meitu? Can I view the production status before delivery?

To support the R&D and prototyping of our global customers, our MOQ is only 1 piece (MOQ: 1 PCS). As a physical factory, we insist on transparent production. During the manufacturing of your Low Series Linear Guide Block Wide Type order, our team can film live videos of the workshop production for you. You can also follow our official Douyin account to learn about the real-time operation of the factory and processing details.
