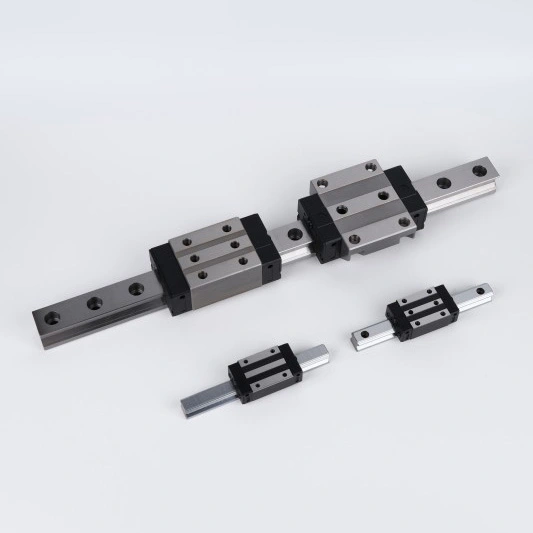

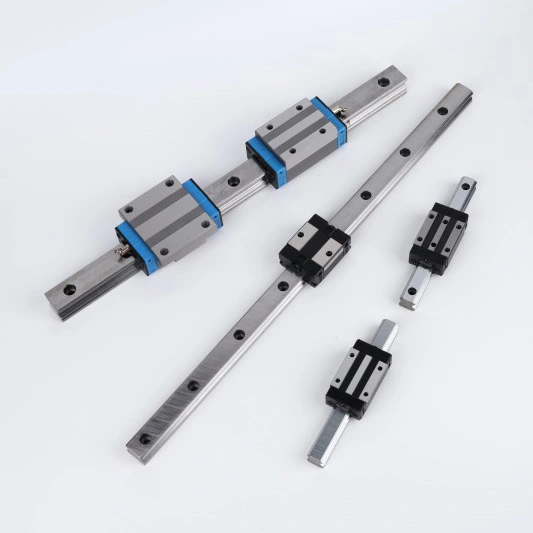

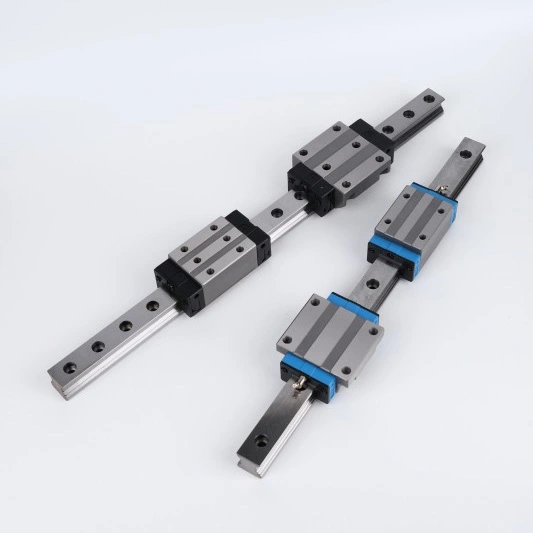

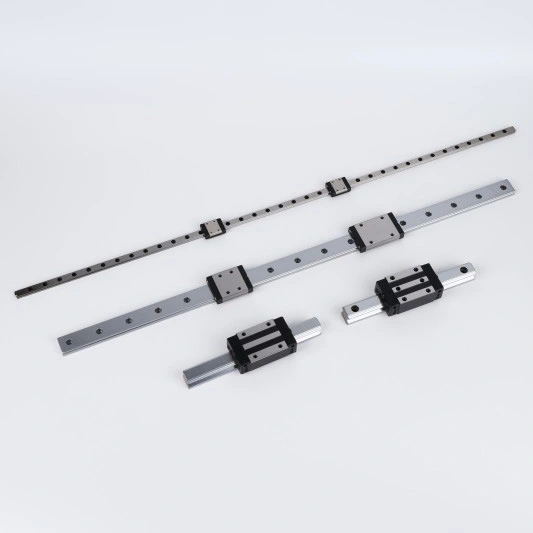

Ultra Precision Linear Guides

Technical Features

• Enhanced Load Capacity: Optimized raceway geometry distributes stress evenly across four contact points

• Ultra Precision Tolerances: Precision-ground mounting surfaces meet strict Ultra Precision-class standards

• Durable Material: High-carbon chromium bearing steel (SUJ2 equivalent), through-hardened to 58-62 HRC

• Maintenance-Free Sealing: Integrated multi-labyrinth seals + optional grease reservoirs for hassle-free use

Why Choose Maitu?

In the semiconductor, medical manufacturing, and high-precision machine tool industries, even micron-level deviations translate into significant economic losses. Maitu, with its exceptional technological foundation and stringent execution standards, has become the preferred partner in the global Ultra Precision Linear Guides field:

1. 12+ Years of Specialized Manufacturing: Since establishing its base in Suzhou in 2014, Maitu has developed over 16,000 specifications of precision lead screws and linear components. We not only master core molding technologies but also deeply understand how to extend this precision to the manufacturing. As a mature manufacturer validated by 5000+ global customers, possessing deep industry know-how, we can provide you with the most professional service and stable product performance.

2. Ultra-Precision Class Accuracy: Our guideways are ISO 9001 quality management system certified, and our manufacturing tolerances are 30% stricter than industry standards. Through precision grinding (Ra 0.4-0.8 μm) and a four-point contact rail design, we ensure that the height deviation (△H) and width deviation (△W) between multiple guide rails are controlled within extremely low ranges at the UP (ultra-precision) level. Each batch comes with a detailed test report, providing reliable and authoritative endorsement for your precision measuring instruments.

3. Dual-Channel Strategic Model Maito offers a unique dual-guarantee model: we have our own independently developed high-performance self-operated brand, providing you with highly competitive "Made in China" cost-effective solutions; at the same time, we are also an officially authorized distributor of several internationally renowned guide rail brands. This dual-channel model ensures that whether your project pursues ultimate cost-effectiveness or requires specific performance parameters of international brands, Maito can meet your needs in one stop, guaranteeing that all international brands are official genuine products.

4. ERP Quality Tracing & Comprehensive Service Relying on our self-developed ERP management system, we have achieved full-process digital traceability from the warehousing of high-carbon chromium bearing steel (SUJ2) raw materials to heat treatment (58-62 HRC), precision grinding, and final inspection. Located in Suzhou and Dongguan, our two major production bases boast 10 production lines, ensuring flexibility for orders starting from just one piece (MOQ: 1 PCS) and stable delivery times for large quantities of ultra-precision products.

FAQ

1. How do METU's "UP Class" guideways perform in terms of actual precision?

According to our production parameter table, for rail lengths ≤500mm, the deviations in △H (height tolerance) and △W (width tolerance) for UP Class are extremely small, typically only 2μm. Compared to standard (N Class) or high-grade (H Class), UP Class guideways exhibit higher consistency in multi-axis operation. We ensure that the straightness and running accuracy of every meter of guideway meets the highest international standards through profile projection and high-precision testing instruments.

2. How do these Ultra Precision Linear Guides maintain long-term reliability in high-intensity industrial environments?

Our UP-grade guideways are made of SUJ2 equivalent high-carbon chromium bearing steel, induction hardened to a hardness of 58-62 HRC. This high hardness, combined with 40% noise reduction and 30% vibration damping, effectively prevents accuracy degradation under long-term high-speed operation. Furthermore, the integrated multi-labyrinth seals and optional automatic lubrication tank extend relubrication intervals to 2,000 km, significantly reducing maintenance costs.

3. How to prevent guideways from rusting or contaminating the environment in precision medical or semiconductor equipment?

For cleanroom or corrosive applications, Metau offers a variety of surface treatment options, including black oxide coating or electroless nickel plating. These processes not only enhance rust resistance but also ensure dust-free surface shedding, meeting the stringent cleanliness requirements of semiconductor manufacturing equipment and high-precision measuring instruments.

4. How does Metau prove that the international brand products it sells are genuine?

As a professional supplier of Ultra Precision Linear Guides, we hold official agency authorizations for multiple international brands. Metau is a comprehensive service provider integrating R&D and distribution. We can provide complete procurement chain documentation and original manufacturer test reports. Through our dual-channel model, you can compare the data differences between Metau's self-developed series and international brands, and our technical engineers will assist you in selecting the solution that best meets your project's accuracy requirements and budget.
