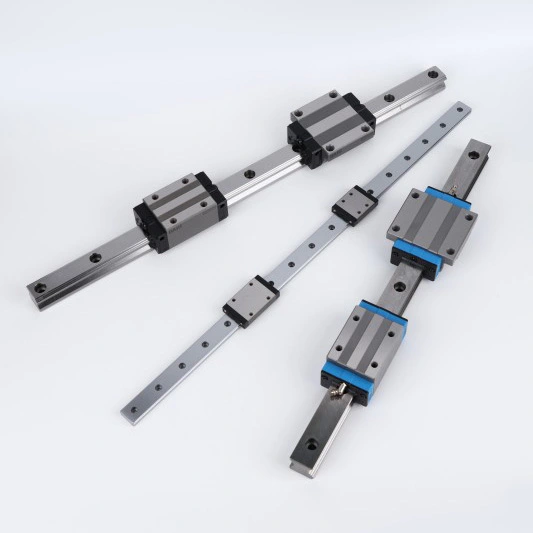

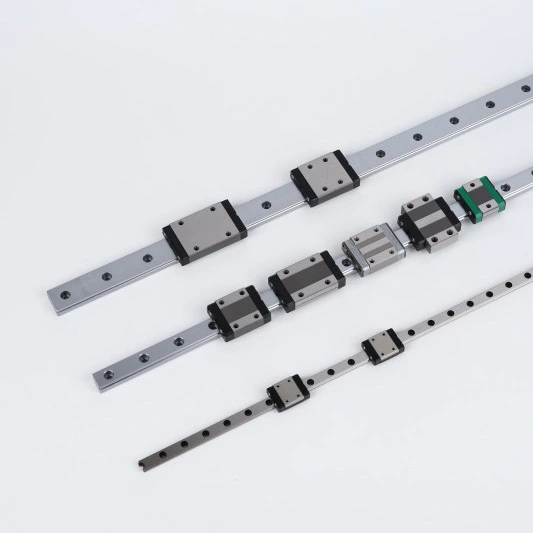

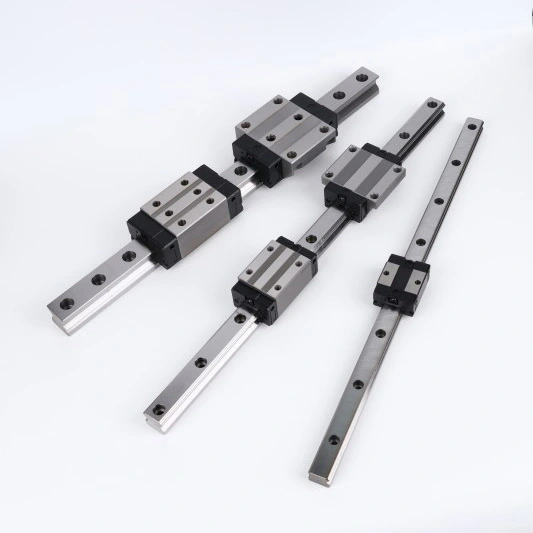

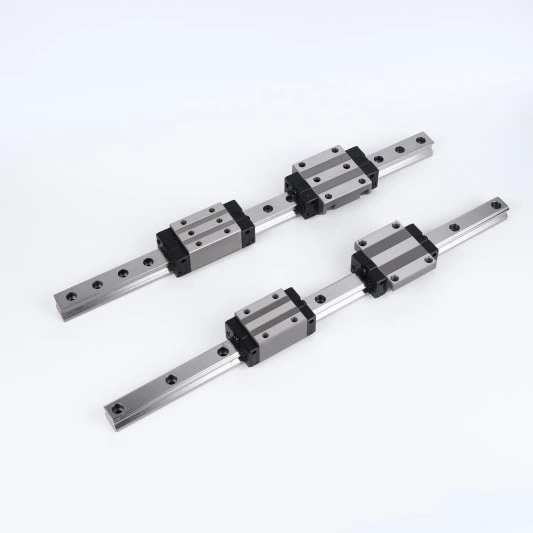

High Level Linear Guides

Maitu’s high-quality High Level Linear Guides are totally a top-tier linear motion beast. They're built specifically for heavy-duty industrial setups—perfect for when you need insane rigidity, pinpoint precision, and reliable long-term performance that never acts up.

This product’s built to international precision standards! In those tough setups where you need it to handle heavy loads and hit pinpoint positioning every time, it performs like a champ—totally checks all the key boxes.

Production Parameters

Why Choose This Products?

Self-Brand + International Authorization

We offer a strategic advantage by combining our self-developed Maitu precision brand with official authorization to distribute world-renowned international linear guide brands. This "dual-track" capability ensures we can provide the perfect balance between cost-effective high-performance solutions and specific global brand interchangeability.

Precision Manufacturing & Tighter Tolerances

Our High Level Linear Guides are engineered with manufacturing tolerances 30% tighter than standard grades. Every mounting surface undergoes rigorous pre-grinding to ensure consistent H-class accuracy, resulting in 40% lower noise and significantly smoother motion for multi-axis configurations.

Industrial-Grade Material & Durability (58-62 HRC)

We never compromise on material integrity. Utilizing high-carbon chromium bearing steel (SUJ2 equivalent) through-hardened to 58-62 HRC, our guides provide the extreme rigidity required for heavy-duty industrial applications. This ensures an extended service life and re-lubrication intervals of up to 2,000 km.

ISO 9001 Certified Quality Control with Traceable Reports

With 12+ years of manufacturing expertise and 10 specialized production lines, Maitu implements a zero-defect quality policy. Every High Level Linear Guide undergoes profile projection analysis and load distribution checks, accompanied by a certified inspection report documenting geometric accuracy.

Global Project Experience & ERP-Backed Reliability

Having served over 5,000 domestic and international customers with an output of 80,000+ pieces, we utilize a self-developed ERP system to trace every manufacturing step. Our dual-base operation in Suzhou and Dongguan ensures robust production capacity and rapid response for global logistics.

FAQ

1. What specific precision standards do your "High Level" Linear Guides meet?

Our High Level Linear Guides are manufactured to meet international precision standards, specifically focusing on H (High), P (Precision), and SP (Super Precision) grades. For example, our H-grade guides maintain a height (ΔH) and width (ΔW) allowance as low as 7μm for lengths up to 500mm, ensuring pinpoint positioning in high-speed automation and medical manufacturing equipment.

2. How do your linear guides perform in challenging or heavy-load environments?

Our guides feature an optimized raceway geometry that distributes pressure evenly across four contact points. This design, combined with SUJ2 equivalent steel and integrated multi-labyrinth seals, allows the system to maintain high rigidity and smooth motion even under heavy moment loads or in environments prone to dust and debris.

3. Can Maitu provide customization for non-standard lengths or surface treatments?

Absolutely. As a professional manufacturer with over 16,000 product types in our history, we offer comprehensive customization. This includes custom rail lengths, specialized end-machining, and advanced surface protections such as Black Oxide coating or Electroless Nickel plating for enhanced corrosion resistance in cleanroom or humid settings.

4. How do you guarantee the quality and accuracy of the guides before shipping?

Each shipment undergoes a rigorous multi-stage inspection process. This includes profile projection analysis, running noise evaluation, and hardness consistency checks. We provide a certified technical inspection report with every order, ensuring the product you receive matches the exact geometric tolerances and performance specs required for your project.
