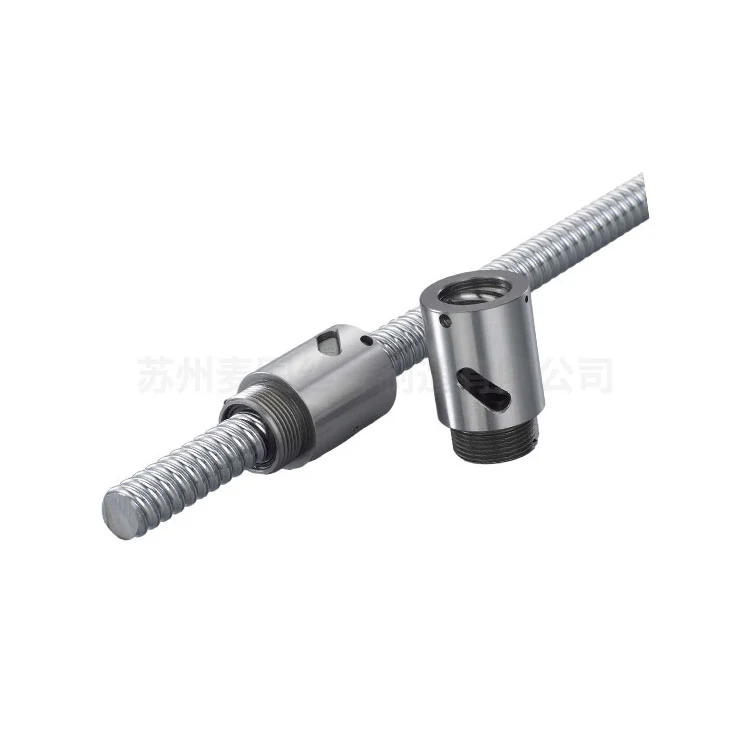

C3 Grade Large Lead Precision CNC Ball Screw
Product Overview
As a professional China manufacturer, Maitu independently develops and produces C3 Grade Large Lead Precision CNC Ball Screw, a high-precision motion control component specially designed for CNC equipment that requires both large lead high-speed operation and ultra-high positioning accuracy (C3 grade).
- C3 precision core: Meets the strictest precision standards for CNC equipment, realizing micron-level positioning accuracy in high-speed operation.
- Large lead optimization: While maintaining C3 grade precision, it achieves long-stroke linear movement per rotation, greatly improving CNC processing efficiency.
- CNC scenario adaptation: Integrated design for CNC machine tools, compatible with high-frequency start-stop and continuous operation working conditions.
Core Performance Traits
- Ultra-high C3 precision: Precision-ground screw shafts, with lead error strictly controlled within C3 grade, ensuring micron-level positioning for CNC equipment.
- High transmission efficiency: Over 90% mechanical efficiency, reducing energy consumption while maintaining C3 precision and large lead performance.
- Large lead & low RPM: Achieves high linear speed without ultra-fast rotation, reducing CNC motor wear and extending equipment service life.
- Stable operation: Equipped with high-precision recirculating ball bearing system, ensuring smooth transmission without jitter in high-precision CNC scenarios.
- C3 grade customization: C3 Grade Large Lead Precision CNC Ball Screw supports personalized adjustment of lead and diameter, matching different high-precision CNC models.
- High structural strength: Solid material processing and special heat treatment, resisting dynamic forces in high-speed, high-precision operation.
- Diversified matching: Multiple nut types available, perfectly adapting to various high-precision CNC machine tool transmission needs.
Technical Specifications
| d | Lead | Beads Da | Precision Grade | Direction (R:Right L:Left) | Standard Screw Code | Available Nut Type |
| 8 | 2-5 | 1.2 | C3 | R/L | SCR00802-SCR00805 | K,BSH |
| 10 | 2-8 | 1.2 | C3 | R/L | SCR01002-SCR01008 | K,BSH,U |
| 12 | 4-10 | 2.5 | C3 | R/L | SCR01204-SCR01210 | V,U,BSH |
| 16 | 5-16 | 2.778 | C3 | R/L | SCR01605-SCR01616 | V,NI,NU,BSH |
Suitable Application Scenarios
- High-precision CNC machine tools (precision milling machines, precision lathes, CNC engraving and milling machines)
- Semiconductor CNC manufacturing equipment (requiring C3 grade positioning accuracy)
- Precision CNC positioning systems and automated CNC assembly lines
- Medical CNC equipment (high-precision transmission and positioning requirements)
- High-precision CNC testing equipment and electronic component processing equipment
- Other CNC scenarios that require both large lead high-speed operation and C3 grade ultra-high precision
- C3 Grade Large Lead Precision CNC Ball Screw is the core component for high-precision CNC equipment to achieve efficient and accurate operation.
Core Competitive Advantages
- C3 precision advantage: Professional precision grinding technology, strictly controlling lead error, leading the industry in high-precision performance.
- Dual performance balance: Perfectly combines C3 grade ultra-high precision with large lead high-speed operation, solving the contradiction between precision and efficiency.
- CNC-specific customization: According to CNC equipment parameters, customize lead, diameter and nut type, ensuring perfect matching and easy installation.
- Strict quality control: ISO 9001 certified, ERP system full-process tracing, ensuring each C3 grade product meets precision standards.
- Stable and durable: Special heat treatment and structural optimization, adapting to long-term high-frequency, high-precision CNC operation.
- Efficient supply guarantee: Two factories with 10 production lines, ensuring fast delivery of C3 grade standard and customized products.
Precision Maintenance Tips
- Precision cleaning: Use professional cleaning agents to remove dust and debris from C3 Grade Large Lead Precision CNC Ball Screw, avoiding affecting C3 precision.
- Special lubrication: Use high-precision lubricating oil, regularly apply in appropriate amount to ensure smooth operation and maintain precision.
- Load control: Strictly follow the rated load to avoid overload operation, which may cause precision deviation or structural damage.
- Storage protection: Store in a dust-free, dry and constant temperature environment to prevent moisture, corrosion and collision from affecting C3 precision.
- Regular calibration: For high-frequency use scenarios, regularly calibrate the precision of the ball screw to ensure it remains at C3 grade level.
Reasons to Choose Maitu
- 12+ years of precision experience: Professional in C3 grade ball screw manufacturing, familiar with high-precision CNC equipment requirements.
- Advanced precision equipment: Equipped with high-precision grinding and testing equipment, ensuring stable production of C3 grade products.
- Full-process quality control: From raw materials to finished products, strict testing to ensure each product meets C3 precision standards.
- Professional customization team: Provide one-stop customization service according to CNC equipment drawings and precision requirements.
- Global after-sales support: Served 5000+ customers, providing professional installation guidance and precision maintenance advice.
Common Questions & Answers
- Q: What is the MOQ for C3 Grade Large Lead Precision CNC Ball Screw?
A: Our MOQ is 1 PCS, which is convenient for customers to test C3 precision performance and match CNC equipment.
- Q: Can the lead and diameter of C3 grade products be customized?
A: Yes, we can customize lead, diameter and nut type according to your CNC equipment parameters and precision requirements.
- Q: What is the difference between C3 grade and other precision grades for CNC ball screws?
A: C3 grade is a high-precision grade, with smaller lead error, suitable for CNC equipment that requires micron-level positioning; it is higher precision than C5 and C7 grades.
- Q: Do you provide precision testing reports for C3 grade products?
A: Yes, each C3 Grade Large Lead Precision CNC Ball Screw is equipped with a precision testing report to ensure it meets C3 grade standards.
- Q: How to maintain the C3 grade precision of the ball screw during use?
A: Regular cleaning, special lubrication and precision calibration can effectively maintain the C3 grade precision of the product.
- Q: What is the delivery time for C3 grade standard and customized products?
A: Standard C3 grade products are in stock for quick delivery; customized products take 7-15 working days, depending on customization requirements.
