Precision Ball Screw Standard Nut
Maitu is an excellent Precision Ball Screw Standard Nut factory. We have established a mature manufacturing supply chain. From production to quality inspection to inventory, we have corresponding scientific management systems. This end-to-end control ensures the stable and reliable performance of all our ball screw products. Please contact us!
The Precision Ball Screw Standard Nut from Maitu factory represents a fundamental component in modern linear motion systems, designed to deliver accurate and efficient conversion of rotary motion to linear movement. This product combines the high efficiency of ball screw technology with the reliability of standardized nut configurations, making it suitable for a wide range of industrial applications.
Key Product Characteristics
High mechanical efficiency exceeding 90%
Precision-ground screw shafts with consistent lead accuracy
Standard nut design optimized for general industrial applications
Recirculating ball bearing system for smooth operation
Available in various accuracy grades (C3 to C7)
Multiple lead and diameter options to match application requirements
Technical Features
Screw Shaft: Manufactured from high-carbon chromium steel with precise thread profiling
Standard Nut: Features optimized ball recirculation system and efficient sealing mechanism
Bearing Balls: Precision-grade chrome steel balls for consistent performance
Mounting Options: Standard flange configurations for easy installation
Manufacturing Capabilities
Maitu maintains complete control over the production process through our integrated manufacturing facility:
In-house material selection and quality verification
Precision thread grinding and heat treatment processes
Comprehensive testing and performance validation
Flexible production capacity for both standard and custom specifications
Quality Assurance
100% dimensional inspection and performance testing
Rigorous noise and vibration analysis
Lifetime testing under simulated operating conditions
Documentation and certification provided with each shipment
Application Range
Industrial automation equipment
CNC machine tools
Precision positioning systems
Medical equipment
Semiconductor manufacturing
General industrial machinery
Maitu's Precision Ball Screw Standard Nut delivers reliable performance backed by our integrated manufacturing capabilities and technical expertise. With stable inventory and flexible production capacity, we provide cost-effective solutions while maintaining consistent quality standards. Our engineering team supports customers in selecting the appropriate configuration for their specific application requirements, ensuring optimal performance and longevity.

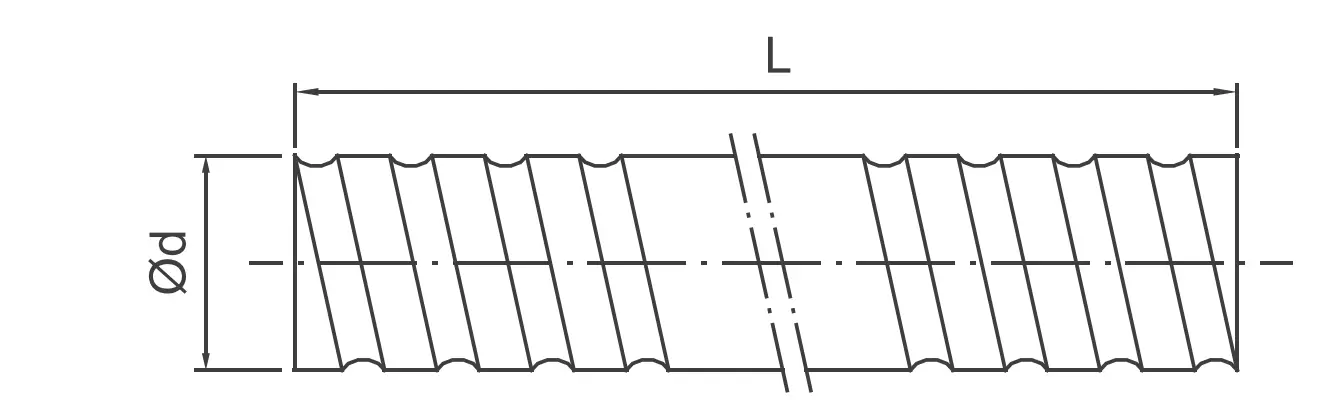

Production Parameters
| Type | Precision Grade | Direction | Start | Standard Screw Code | Available Nut Type | ||
| d | Lead | Beads Da | R:Right L:Left | ||||
| 4 | 1 | 0.8 | C7,C5,C3 | R | 1 | SCRO0401 | K |
| 6 | 0.8 | C7,C5,C3 | R | 1 | SCR00601 | K | |
| 8 | 1 | 0.8 | C7,C5,C3 | R/L | 1 | SCR00801 | K |
| 2 | 1.2 | C7,C5,C3 | R/L | 1 | SCR00802 | K | |
| 2.5 | 1.2 | C7,C5,C3 | R | 1 | SCR0082.5 | K,BSH | |
| 10 | 2 | 1.2 | C7,C5,C3 | R/L | 1 | SCR01002 | K,BSH |
| 4 | 2 | C7,C5,C3 | R | 1 | SCR01004 | K,BSH | |
| 12 | 2 | 1.2 | C7,C5,C3 | R/L | 1 | SCR01202 | K |
| 4 | 2.5 | C7,C5,C3 | R | 1 | SCR01204 | U,BSH | |
| 5 | 2.5 | C7,C5,C3 | R | 1 | SCR01205-A | V,U,BSH,H,A | |
| 10 | 2.5 | C7,C5,C3 | R | 2 | SCR01210-B | V | |
| 14 | 2 | 1.2 | C7,C5,C3 | R/L | 1 | SCR01402 | K |
| 4 | 2.5 | C7,C5,C3 | R | 1 | SCR01404 | BSH | |
| 16 | 2 | 1.2 | C7,C5,C3 | R/L | 1 | SCR01602 | K |
| 4 | 2.381 | C7,C5,C3 | R | 1 | SCR01604(N) | V,I,U,BSH | |
| 5 | 3.175 | C7,C5,C3 | R/L | 1 | SCR01605 | V,NI,NU,BSH | |
| 10 | 3.175 | C7,C5,C3 | R/L | 2 | SCR01610 | V,NI,NU,BSH | |
| 16 | 2.778 | C7,C5,C3 | R | 2 | SCR01616 | Y | |
| 32 | 2.778 | C7,C5,C3 | R | 2 | SCR01632 | Y | |
| 20 | 2 | 1.2 | C7,C5,C3 | R | 1 | SCR02002 | K |
| 4 | 2.381 | C7,C5,C3 | R | 1 | SCR02004(N) | V,I,U | |
| 5 | 3.175 | C7,C5,C3 | R/L | 1 | SCR02005 | V,NI,NU,BSH,H,A | |
| 10 | 3.969 | C7,C5,C3 | R | 1 | SCR02010 | V | |
| 20 | 3.175 | C7,C5,C3 | R | 2 | SCR02020 | V,Y,H,A | |
| 40 | 3.175 | C7,C5,C3 | R | 2 | SCR02040 | Y | |
| 25 | 2 | 1.2 | C7,C5,C3 | R | 1 | SCR02502 | K |
| 4 | 2.381 | C7,C5,C3 | R | 1 | SCR02504(N) | l,U | |
| 5 | 3.175 | C7,C5,C3 | R/L | 1 | SCR02505 | V,NI,NU,BSH,H,A | |
| 6 | 3.969 | C7,C5,C3 | R | 1 | SCR02506 | V,U | |
| 8 | 4.762 | C7,C5,C3 | R | 1 | SCR02508 | V,U | |
| 10 | 4.762 | C7,C5,C3 | R/L | 1 | SCRO2510-A | NI,NU,BSH | |
| 10 | 6.35 | C7,C5,C3 | R | 1 | SCR02510-B | V | |
| 25 | 3.969 | C7,C5,C3 | R | 2 | SCR02525 | Y | |
| 50 | 3.969 | C7,C5,C3 | R | 2 | SCR02550 | Y | |
| 32 | 4 | 2.381 | C7,C5,C3 | R | 1 | SCRO3204(N) | V,I,U |
| 5 | 3.175 | C7,C5,C3 | R/L | 1 | SCRO3205 | V,NI,NU,M,H,A | |
| 6 | 3.969 | C7,C5,C3 | R | 1 | SCR03206 | V,U | |
| 8 | 4.762 | C7,C5,C3 | R | 1 | SCRO3208 | V,U | |
| 10 | 6.35 | C7,C5,C3 | R/L | 1 | SCRO3210 | V,NI,NU | |
| 20 | 6.35 | C7,C5,C3 | R | 1 | SCR03220 | V | |
| 32 | 4.762 | C7,C5,C3 | R | 2 | SCR03232 | Y | |
| 64 | 4.762 | C7,C5,C3 | R | 2 | SCRO3264 | Y | |

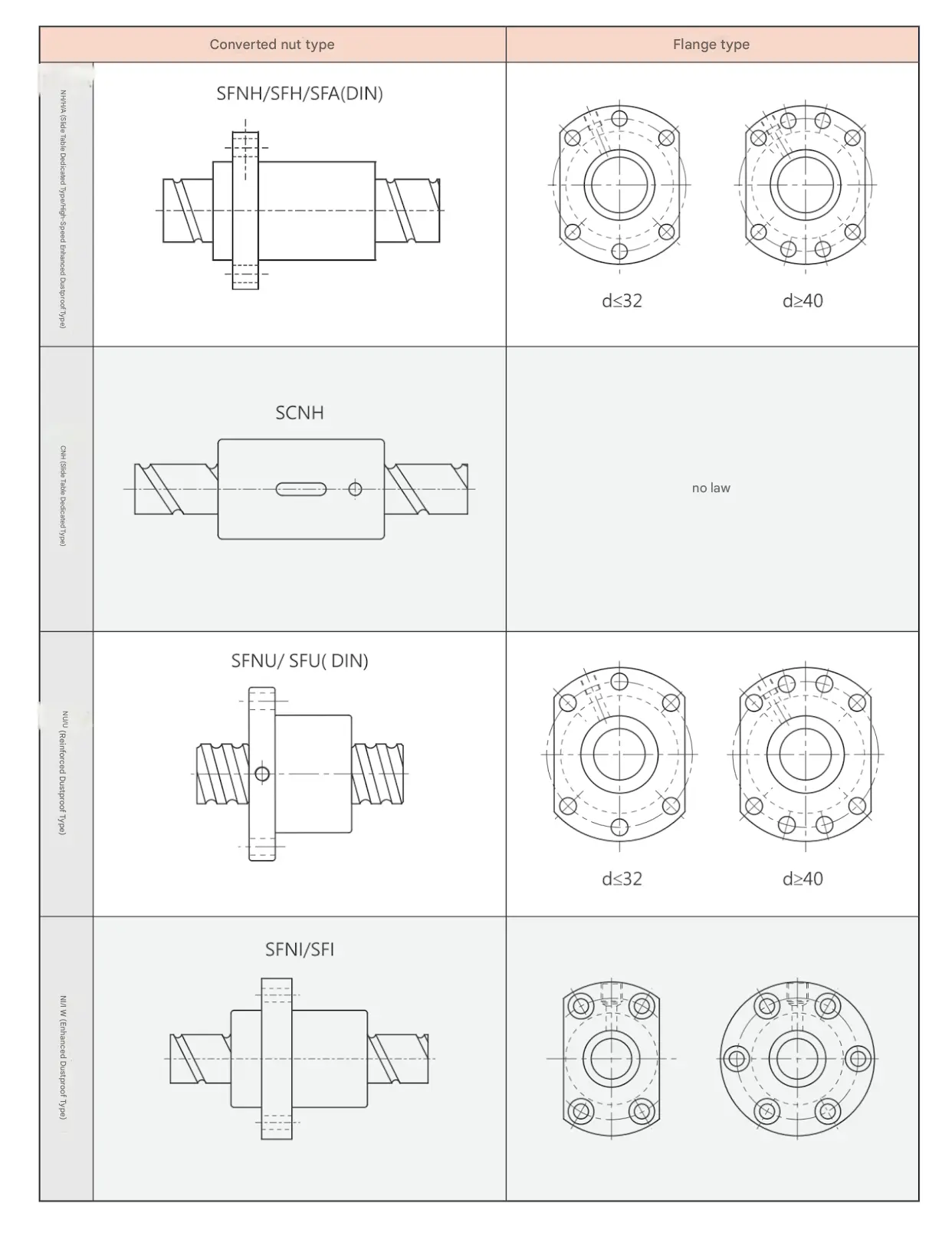

Ball Screw Nut Reference
Why Choose Us?
Expertise & Experience
Suzhou Maitu boasts over 12 years of professional ball screw manufacturing experience, serving more than 5,000 clients worldwide. We have accumulated a design and production library of over 16,000 specifications, and our extensive industry experience ensures we can accurately understand and fulfill your complex engineering needs for Precision Ball Screw Standard Nuts.
Authoritativeness & Trust
We are ISO 9001 quality management system certified. Each ball screw undergoes 100% dimensional inspection, mechanical performance testing, and rigorous noise and vibration analysis before leaving the factory. Coupled with our self-developed ERP system, we achieve end-to-end quality traceability from raw materials to finished products, ensuring a stable mechanical efficiency exceeding 90%.
Precision & Customization
We offer multiple precision grades from C3 to C7 to meet diverse needs from semiconductor equipment to general industrial machinery. We are not only proficient in machining high-carbon chromium steel but also possess the process capabilities to handle stainless steel, brass, and even high-performance new materials such as PEEK and PTFE, supporting highly customized end-face machining.
Reliability: Leveraging our two major production bases in Suzhou and Dongguan, and 10 modern production lines, we possess exceptional flexible manufacturing capabilities. Even for orders with a minimum MOQ of 1 piece (MOQ: 1 PCS), we maintain a high level of attention and responsiveness. By providing real-time production video demonstrations (such as on TikTok or direct video feeds), we help you overcome geographical limitations and build true trustworthiness.
FAQ
1. What is the highest precision grade of Momentive Precision Ball Screws?
Our Precision Ball Screw Standard Nuts are available in three precision grades: C3, C5, and C7. Grade C3 is typically used in CNC machine tools and medical precision instruments where extremely high positioning accuracy is required, while grade C7 offers excellent cost-effectiveness for general automated production lines.
2. Do you support non-standard customization or OEM production based on drawings?
Yes. As a source factory, OEM and non-standard customization are our core business. Our engineering team will rigorously review the details of your drawings, including special lead requirements, end machining shapes, and special nut structures. Before mass production, we ensure all technical parameters are confirmed by both parties.
3. How do you guarantee the quality and delivery time of exported products?
We implement 100% finished product inspection and provide quality certification documents with the goods. To ensure delivery time, we utilize 10 production lines in our two factories in Suzhou and Dongguan for capacity scheduling. For long-term cooperative clients, we manage inventory and production scheduling through our own ERP system, communicating with clients in advance, even before holidays, to ensure a stable supply chain.
4. What solutions can you provide for special environments (such as corrosion or lack of lubrication)?
We have extensive experience in the application of special materials. In addition to standard high-carbon chromium steel, we can also produce ball screws made of stainless steel, or nuts made using new self-lubricating and corrosion-resistant composite materials such as PEEK and PTFE. We also offer various surface treatment processes (such as coating or heat treatment) to extend the lifespan of Precision Ball Screw Standard Nuts in harsh environments.
For more details and other nut types, please contact us.
