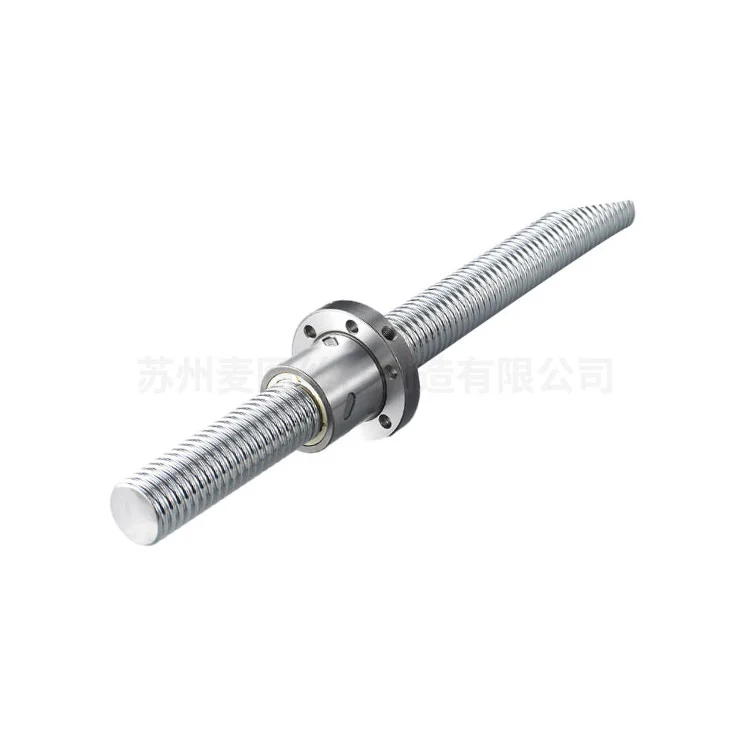

C3 Grade CNC Precision Ball Screw Standard Nut

The C3 Grade CNC Precision Ball Screw Standard Nut is a high-end precision transmission component tailor-made for the core motion mechanism of CNC equipment, focusing on solving the core demands of high-end CNC processing for ultra-precise positioning, efficient transmission and long-term stability. Different from the conventional ball screw nuts that only meet basic transmission needs, this product takes C3 precision grade as the core benchmark, integrates advanced material technology, precision machining technology and structural optimization design, and is specially adapted to the complex working conditions of CNC machine tools such as high-speed operation, frequent start-stop and heavy-load cutting. It is widely used in the fields of ultra-precision machining, semiconductor equipment, precision measuring instruments and aerospace manufacturing, and has become a key support for upgrading the precision level of CNC equipment and improving processing efficiency and product quality.

Key Performance Highlights

Micron-Level Precision Positioning: As a high-precision grade second only to C0 and C1, the C3 Grade CNC Precision Ball Screw Standard Nut strictly controls the lead error within ±0.003mm/300mm, and the cumulative lead error within 1000mm does not exceed ±0.01mm. The axial backlash is precisely controlled between 0.001-0.005mm, and the ball roundness tolerance is ≤0.1μm, which completely eliminates the "positioning lag" and "reverse gap excess" problems of ordinary ball screws, ensuring that the CNC machine tool can achieve stable micron-level positioning accuracy in long-stroke and high-frequency motion processes.

High Rigidity for Heavy-Load Adaptation: Adopting integrated high-rigidity structural design, the elastic modulus reaches more than 200GPa, which can effectively resist the deformation caused by cutting force, feed force and vibration during CNC processing, ensuring that the motion trajectory of the equipment is highly consistent with the programming path. Even in heavy-load cutting scenarios, it can maintain stable precision without deformation, which is especially suitable for high-precision processing of large and heavy parts such as auto parts and engineering machinery parts.

High-Speed Stability & Low Energy Consumption: The raceway curvature radius is optimized to 0.52-0.54 times the ball diameter, and a high-efficiency ball circulation structure is adopted, which makes the transmission efficiency as high as 95% or more, 3-4 times that of ordinary trapezoidal screws. When the feed speed reaches 60-120m/min, the temperature rise is controlled within 15℃, and the precision fluctuation is stable within ±0.5μm, avoiding precision drift caused by high-speed friction and ensuring long-term stable operation of the equipment while reducing energy consumption.

Enhanced Wear & Corrosion Resistance: The nut body is made of high-strength alloy steel, and the raceway surface is subjected to ultra-precision grinding, polishing and special heat treatment (carburizing, quenching and low-temperature tempering) processes. The surface roughness Ra≤0.02μm, and the material hardness reaches HRC≥60, which greatly improves the wear resistance. Optional Corrotect® anti-corrosion coating can effectively resist the erosion of cutting fluid, coolant and other corrosive media, adapting to harsh processing environments and extending the service life of the product.

Universal Compatibility & Customizable Design: It fully complies with international standard dimensions and can directly replace imported C3 grade ball screw nuts, compatible with most CNC machine tool brands at home and abroad, including HAAS, FANUC, Siemens and domestic high-end CNC brands. The product covers a wide range of specifications, with nominal diameter from 5mm to 180mm and lead from 1mm to 120mm; it also supports personalized customization according to customer drawings and equipment requirements, including special end processing, preload adjustment and surface treatment.

Detailed Technical Parameters

Note: The above parameters are the mainstream specifications of the C3 Grade CNC Precision Ball Screw Standard Nut, which are all optimized for high-precision CNC processing scenarios. We can provide personalized parameter customization according to the specific model, processing requirements and working conditions of the customer's CNC equipment, and send professional technical personnel to conduct on-site debugging to ensure that the product perfectly matches the equipment and exerts the best performance.

Unique Competitive Advantages

- Precision Upgrade Advantage: Compared with C5 grade ball screw nuts, the positioning error of this product is reduced by about 40%, and when matched with the machine tool grating ruler closed-loop control, the positioning accuracy can reach ±1μm, which is especially suitable for ultra-precision processing scenarios such as aerospace parts (engine blades, precision gears) and precision molds that require "zero error tolerance". Compared with C7 grade products, the lead error is reduced by 2.9 times, and the axial backlash is reduced by 5 times, avoiding positioning failure in long-stroke processing.

- Efficiency Improvement Advantage: The optimized ball circulation system and raceway design not only improve the transmission efficiency to more than 95%, but also support higher feed speed and acceleration. In precision milling processing, the feed speed can be increased from the traditional 30m/min to 80m/min, the processing efficiency is increased by more than 1.5 times, the processing cycle of a single workpiece is shortened, and the production efficiency of the workshop is comprehensively improved while reducing tool wear.

- Cost-Saving & Long-Life Advantage: Under normal maintenance conditions, the service life of the C3 Grade CNC Precision Ball Screw Standard Nut can reach more than 10,000 hours, which is 2-3 times that of ordinary precision ball screw nuts. The uniform wear performance reduces the number of machine tool shutdowns for maintenance and parts replacement, and also reduces the product rework rate caused by precision degradation, helping customers reduce comprehensive production costs by more than 50%.

- Scenario Expansion Advantage: It breaks through the application limitations of traditional C3 grade nuts, and can be widely adapted to various complex CNC processing scenarios, including high-speed cutting, heavy-load cutting, multi-axis linkage processing, and ultra-precision micro-processing. It is not only suitable for general high-precision CNC machine tools, but also can meet the high-precision transmission needs of special equipment such as semiconductor lithography equipment, three-coordinate measuring machines and medical micro-operation platforms.

- Import Substitution Advantage: Adopting international standard design and advanced manufacturing technology, the product quality and performance are completely comparable to imported C3 grade ball screw nuts, but the price is 30%-50% lower than that of imported counterparts. It can help customers reduce procurement costs on the premise of ensuring processing precision and stability, and realize cost-effective upgrading of CNC equipment accessories without relying on imported products.

Applicable CNC Equipment & Scenarios

- 5-Axis CNC Machining Centers: As the core transmission component of the linear axis, it supports multi-axis linkage ultra-precision processing, and is mainly used in the processing of high-end products such as aerospace parts, precision molds and precision gears. It can ensure the dimensional accuracy and surface quality of parts, and meet the high-precision requirements of complex curved surface processing.

- Ultra-Precision CNC Grinding Machines: It is used for the linear motion transmission of the workbench and grinding head, which can effectively ensure the grinding precision of the workpiece. It is suitable for the precision grinding of hard materials such as alloy steel, ceramics and sapphire, and meets the high-precision requirements of parts in the precision instrument and semiconductor industries.

- High-Precision CNC Lathes: Adapt to the working environment of high-speed and heavy-load turning, with strong rigidity and wear resistance, ensuring the stability of the feed system during high-load operation. It is suitable for the precision turning of large and heavy parts such as auto parts, engineering machinery parts and marine parts.

- Precision CNC Engraving & Milling Machines: It is used for the linear motion of the engraving and milling head, with high positioning accuracy and smooth operation, which can realize the fine engraving and milling of small and complex parts. It is widely used in the fields of precision mold engraving, electronic component processing, medical device processing and craft production.

- Special Precision CNC Equipment: It is also applicable to special CNC equipment such as CNC EDM machines, semiconductor lithography equipment, three-coordinate measuring machines and medical micro-operation platforms. It provides stable and precise linear motion support, ensuring the normal operation and processing/operation precision of the equipment, and is an indispensable core component for "zero error tolerance" scenarios.

Operation & Maintenance Guidelines

- Standard Installation Requirements: When installing the C3 Grade CNC Precision Ball Screw Standard Nut, it is necessary to ensure that the coaxiality of the screw is ≤0.02mm, the straightness is ≤0.01mm/m, and the parallelism between the screw and the guide rail is ≤0.02mm/m to avoid installation deviation leading to precision loss. The installation torque should be uniform, and it is strictly forbidden to knock or squeeze the nut to prevent damage to the internal ball and raceway.

- Scientific Lubrication Management: It is recommended to add special lithium-based lubricating grease every 400 hours of operation, and clean the raceway with a clean lint-free cloth before refueling to remove impurities and old lubricating grease. It is strictly forbidden to use incompatible lubricants, so as not to damage the sealing mechanism and internal components, and ensure the smooth operation of the ball circulation system.

- Regular Inspection & Maintenance: Conduct a comprehensive inspection every 10 days, focusing on checking the wear of the ball and raceway, the integrity of the sealing ring, the tightness of the installation bolt and the lubrication status. If any abnormal wear, looseness or damage is found, it should be adjusted, repaired or replaced in time to avoid affecting the processing precision and causing equipment failure.

- Load & Speed Management: During use, the axial load should not exceed 75% of the rated dynamic load, and the operating speed should not exceed the rated speed to avoid excessive wear of the raceway and ball, and prevent the screw from deforming due to overload, which will affect the precision and service life of the product. It is strictly forbidden to operate with overload or overspeed for a long time.

- Storage & Transportation Protection: When storing, it should be placed in a dry, clean and ventilated environment, the surface should be coated with anti-rust oil, and it should be placed horizontally to prevent collision and deformation; during transportation, it should be properly packaged with shock-proof and moisture-proof materials to avoid collision, extrusion and moisture, and protect the precision of the product from damage.

Comprehensive Service Support

- Professional Customization Service: We have a professional R&D team composed of senior engineers with more than 15 years of experience in precision ball screw research and development. We can provide personalized customization schemes according to the customer's CNC machine tool model, processing requirements and drawings, including non-standard size customization, preload adjustment, special surface treatment and other services, and complete the design and production of customized products efficiently.

- Strict Quality Control System: Each C3 Grade CNC Precision Ball Screw Standard Nut undergoes 100% precision testing, wear resistance testing, vibration noise testing and corrosion resistance testing before leaving the factory, and is equipped with a professional precision inspection report to ensure that each product meets the C3 grade precision standard and international quality requirements. The full-process quality traceability system can track the production, processing and inspection information of each product.

- One-Stop Technical Guidance: We provide one-stop technical services including pre-sales consultation, product selection, on-site installation guidance, debugging and after-sales maintenance. Our technical engineers can provide professional solutions according to the customer's processing scenarios, help customers choose the most suitable products, and solve various technical problems encountered in the use process in a timely manner.

- Efficient Delivery Guarantee: With two advanced production bases and 12 professional production lines, we have sufficient inventory reserves for standard products, and the delivery cycle is 1-2 working days; for customized products, the delivery cycle is 4-6 working days, which can flexibly meet the delivery needs of different order quantities and ensure that customers' production progress is not affected.

- Extended After-Sales Guarantee: We provide a 24-month quality guarantee period, which is much longer than the industry average (12 months). During the guarantee period, if there is any quality problem caused by the product itself, we will provide free repair or replacement. We also provide long-term technical consultation and maintenance guidance to help customers extend the service life of the product and reduce maintenance costs.

FAQ & Professional Solutions

- What are the core differences between C3 grade and other precision grades (C5, C7) in CNC applications? The core difference lies in the lead accuracy and axial backlash: compared with C7 grade, C3 grade has 2.9 times higher lead accuracy and 5 times smaller axial backlash, which is suitable for high-precision processing scenarios; compared with C5 grade, C3 grade has 40% less positioning error and higher stability during high-speed operation. C7 grade is suitable for ordinary CNC machinery, C5 grade is suitable for general precision CNC machinery, and C3 grade is suitable for high-precision CNC machinery and special precision equipment that require "zero error tolerance".

- Can this product directly replace imported C3 grade ball screw nuts? Yes. Our products adopt international standard design, with the same dimensions, installation specifications and precision performance as imported products, and can directly replace imported accessories without modifying the equipment. At the same time, we can adjust the product parameters according to the characteristics of imported CNC machine tools to ensure perfect matching, and the price is more competitive, which is an ideal choice for imported substitution.

- How to solve the problem of precision degradation during use? The main reasons for precision degradation are improper installation, insufficient lubrication, impurity entry or excessive wear. First, check the installation parallelism and coaxiality, adjust and fix it if there is deviation; then clean the raceway and add special lubricating grease; if the ball or raceway is severely worn, it is recommended to replace the nut in time, and our technical team can provide on-site replacement and debugging services.

- Is there a minimum order quantity for customized products? What is the customization cycle? There is no minimum order quantity for customized products, and we support small-batch customized orders with a minimum order quantity of 1 piece. The customization cycle is 4-6 working days, which can flexibly meet the personalized needs of customers for small-batch, multi-specification customized products, whether it is a single customized product or a small-batch trial order, we can provide high-quality products and services.

- How to choose the appropriate model and parameters for my CNC machine tool? You only need to provide the model of the CNC machine tool, the processing scenario (such as milling, turning, grinding), the required positioning accuracy and load requirements, and our technical team will recommend the most suitable product model and parameters for you. If you have drawings, we can also customize according to the drawings to ensure that the product perfectly matches your equipment and exerts the best performance.

Welcome to contact us for our quality C3 Grade CNC Precision Ball Screw Standard Nut!
