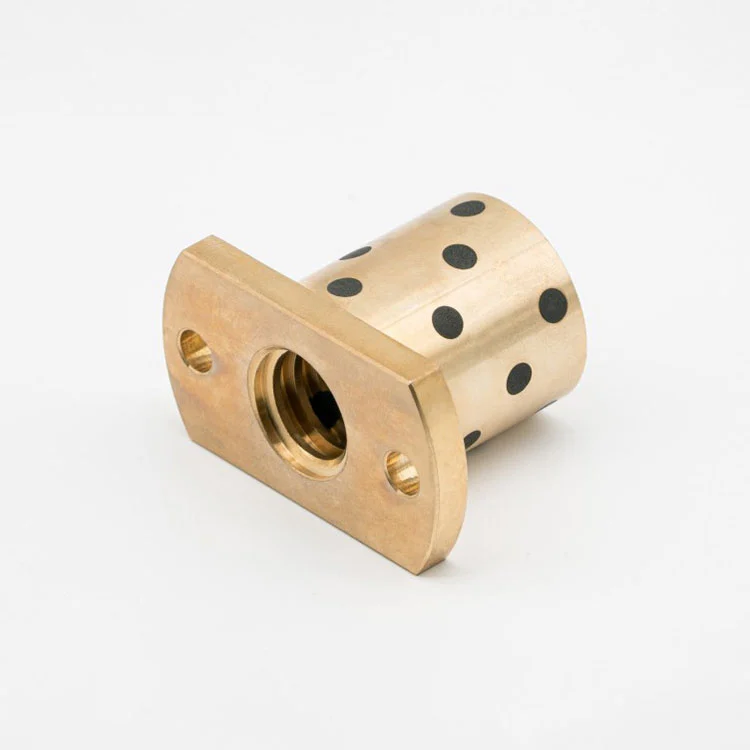

Oil-Free Trapezoidal Nut for Semiconductor Tools

As an R&D-oriented manufacturer integrating production and sales, Maitu provides high-precision Oil-Free Trapezoidal Nut for Semiconductor Tools, solving the core pain points of lubricant contamination and low precision in semiconductor tool transmission. We can customize key parameters such as thread precision, overall size, and material composition according to the specific models and working conditions of your semiconductor tools. Its oil-free design eliminates the risk of lubricant volatilization and contamination, ensuring the integrity of semiconductor wafers and components.

Product Technical Specifications

Note: * indicates special specifications, which can be customized according to the precision and operation requirements of semiconductor tools.

Key Product Traits

Ultra-clean oil-free design: Adopts integrated solid lubrication technology, no lubricant volatilization or leakage, completely meeting the Class 100/1000 clean room requirements of semiconductor manufacturing, avoiding contamination of wafers and precision components.

High-precision transmission: The thread is processed by high-precision CNC equipment, with a precision error of less than ±0.005mm, matching the high-precision movement needs of semiconductor tools such as wafer handling and positioning.

Low-noise operation: The optimized structural design and smooth thread meshing of the Oil-Free Trapezoidal Nut for Semiconductor Tools reduce the operating noise to less than 35dB, avoiding interference with the sensitive detection equipment in semiconductor workshops.

Technical Performance Specifications

Material Precision: Utilizes a high-purity bronze alloy combined with composite solid lubricants. Subjected to rigorous purification processes to ensure zero residue, the material meets the stringent purity standards required by the semiconductor industry.

Wear Resistance: Features a specialized surface-hardening treatment that achieves a surface hardness of HRC 45–50. Compared to standard oil-free nuts, the wear rate is reduced by 40%, thereby ensuring the long-term, stable operation of semiconductor tooling.

Temperature Adaptability: Capable of stable operation within a temperature range of -20°C to 300°C, effectively accommodating the temperature fluctuations experienced by semiconductor equipment during heating, cooling, and normal operational cycles.

Corrosion Resistance: The surface undergoes anti-corrosion and anti-oxidation treatments, providing resistance against the corrosive effects of chemical reagents and cleaning agents commonly used in semiconductor fabrication facilities, thereby ensuring the product's longevity.

Our Core Competitiveness

1. Semiconductor-specific R&D: Our R&D team has 5 senior engineers with more than 8 years of experience in semiconductor transmission components, focusing on solving the precision and cleanliness problems of semiconductor tool nuts.

2. Precision production control: Equipped with 3 high-precision production lines dedicated to semiconductor components, combined with strict quality inspection procedures, each Oil-Free Trapezoidal Nut for Semiconductor Tools undergoes 5 rounds of precision testing before leaving the factory.

3. Customization expertise: We have customized more than 2,000 types of precision transmission components for semiconductor equipment manufacturers, mastering the core needs of different semiconductor tool models (such as etching machines, lithography machines).

4. Qualification certification: We have passed ISO 9001 and ISO 14644-1 (cleanroom standard) certification, and our products meet the international semiconductor industry standards, and have been recognized by many well-known semiconductor equipment companies.

Customized Service System

1. Precision consultation service: Our professional technical team provides one-on-one consultation, deeply understands the working parameters and precision requirements of your semiconductor tools, and provides personalized product solutions.

2. Customization process guarantee: For semiconductor tool-specific customization, we provide 2D/3D drawing design, sample trial production, precision testing and other one-stop services, ensuring that the product fully matches your equipment.

3. Clean packaging service: Products are packaged in vacuum clean packaging, avoiding contamination during transportation and storage, and meeting the clean requirements of semiconductor workshops.

4. Rapid delivery support: Specialized production lines for semiconductor components ensure that standard precision products are delivered within 3-5 working days, and customized products are delivered within 8-15 working days.

5. After-sales technical support: Provide 18-month quality guarantee period, and send professional technicians to provide on-site installation, debugging and maintenance guidance for bulk orders.

Clean Use & Maintenance Tips

1. Cleaning requirements: Use clean, lint-free soft cloth dipped in high-purity alcohol to wipe the surface, do not use ordinary cleaning agents, so as not to damage the solid lubricant layer and cause contamination of the Oil-Free Trapezoidal Nut for Semiconductor Tools.

2. Regular inspection: It is recommended to check the thread precision and meshing status every 6 months. If there is any wear or precision deviation, it should be replaced in time to avoid affecting the operation precision of semiconductor tools.

3. Storage conditions: Store in a clean, dry, dust-free environment with a temperature of 15-25℃ and humidity of 40%-60%, and avoid contact with chemical reagents and corrosive substances.

4. Installation requirements: Install in a clean room, wear clean dust-free gloves during installation, avoid direct contact with the product surface, and ensure that the installation process is free of dust and impurities.

Application Scenarios

1. Semiconductor lithography machines: Used in the precision lifting and positioning mechanisms of lithography machines, ensuring high-precision transmission and clean operation, avoiding affecting the lithography effect of wafers.

2. Etching and deposition equipment: Applicable to the transmission components of etching machines and thin film deposition equipment, adapting to the high-temperature and corrosive environment in the equipment, ensuring stable operation.

3. Wafer handling equipment: Used in the lifting and conveying mechanisms of wafer handling robots, realizing oil-free, low-noise operation, protecting the surface of wafers from contamination.

4. Semiconductor testing equipment: Suitable for the precision adjustment components of semiconductor testing equipment, meeting the high-precision requirements of testing and ensuring the accuracy of test results.

FAQ

1. What is the precision level of the Oil-Free Trapezoidal Nut for Semiconductor Tools?

Our product precision level reaches ISO 3, with a thread pitch error of less than ±0.005mm, fully meeting the high-precision requirements of semiconductor tools.

2. Can the product be used in Class 100 clean rooms?

Yes, our product has passed cleanroom certification, no lubricant volatilization or dust generation, and can be safely used in Class 100 and higher-level clean rooms of semiconductor workshops.

3. Can you customize the product according to the special size of our semiconductor tools?

Yes, we can customize the overall size, thread specifications, flange design and other parameters according to your equipment drawings and precision requirements, and provide sample trial production.

4. What is the service life of the product in semiconductor tool operation?

Under normal use and regular maintenance, the service life of the product is more than 5 years, which is 40% longer than that of ordinary oil-free nuts.

5. Do you provide relevant certification documents for semiconductor industry?

Yes, we can provide ISO 9001, ISO 14644-1 certification documents and product precision test reports to meet the audit requirements of semiconductor manufacturers.

6. How to solve the problem if the product has precision deviation during use?

We provide on-site technical support, and our technicians will go to the site to debug and adjust, and replace the product for free if there is a quality problem within the guarantee period.
