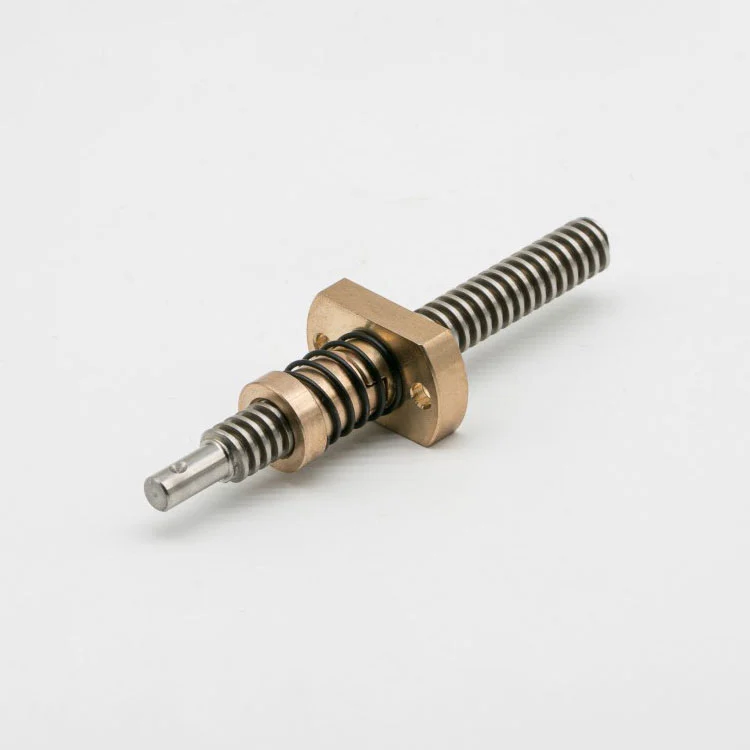

Anti-Backlash Trapezoidal Nut for 3D Printer Builds

Adhering to the concept of "precision matching, flexible customization", Maitu provides all-round customization services for the Anti-Backlash Trapezoidal Nut for 3D Printer Builds. According to your 3D printer type (FDM, SLA, SLS), Z-axis lifting load, print speed, layer thickness requirements and installation space size, we can customize key parameters such as trapezoidal thread specification (metric/inch), nut overall dimension, split-type structure design, spring preload intensity and material selection. The product adopts a compact integrated structure, which is perfectly compatible with the trapezoidal lead screws of mainstream 3D printers (including desktop and industrial models), and can be directly installed and replaced without modifying the original transmission structure, greatly reducing the difficulty of equipment upgrade and maintenance.

Product Technical Specifications

Note: * indicates special specifications, which can be customized according to your 3D printer model, print precision requirements, Z-axis load and installation space. We can flexibly adjust the spring preload intensity to match the different print speeds and layer thickness needs of FDM, SLA and SLS 3D printers, ensuring optimal anti-backlash effect and transmission stability.

Highlighted Features & 3D Printing-Specific Advantages

1. Precision anti-backlash with spring compensation: Adopts split-type trapezoidal thread structure combined with high-elasticity precision spring preload technology — the core design of splitting the nut into two parts and using a spring to push them apart to closely fit the lead screw teeth — which can flexibly eliminate axial backlash (controllable within 0.005-0.01mm), fundamentally solving the problem of Z-axis sag and positioning deviation caused by nut backlash, and avoiding 3D printing defects such as layer misalignment and step lines, ensuring stable print quality batch after batch.

2. Stable transmission with adjustable preload: The built-in precision spring has excellent fatigue resistance, which can maintain stable preload force for a long time (no obvious backlash after 8,000+ hours of continuous operation), and the preload intensity can be adjusted according to the 3D printer’s load and precision requirements, balancing anti-backlash effect and transmission smoothness, avoiding excessive torque that affects the service life of the stepping motor.

3. Wear-resistant & consumable-resistant performance: Targeting the working environment of 3D printers (such as consumable residues, hot bed radiation), the surface of the Anti-Backlash Trapezoidal Nut for 3D Printer Builds is treated with special wear-resistant and anti-adhesive coating, which can effectively resist the erosion of PLA, ABS and other consumable residues, and maintain stable performance in the temperature range of -10℃ to 140℃, avoiding thread jamming caused by residue adhesion.

4. Cost-effective & easy to maintain: Compared with zero-play nuts, this product has a more reasonable cost and stronger adaptability, which is suitable for large-scale popularization and application; the split-type structure is easy to disassemble and maintain, and the spring can be replaced independently when worn, reducing the maintenance cost of 3D printer equipment.

Performance Metrics & Quality Control Standards

1. 3D printing-adapted material selection: Optional POM engineering plastic (self-lubricating, lightweight, cost-effective) and reinforced bronze alloy (high load-bearing, wear-resistant) materials, among which POM material is especially suitable for desktop 3D printers, with excellent self-lubricating performance and low friction, while reinforced bronze alloy is suitable for industrial-grade 3D printers with high load requirements, fully matching the working characteristics of different 3D printer types.

2. Precision control indicators: Thread precision reaches ISO 4 level, pitch error is less than ±0.004mm, backlash can be stably controlled within 0.005-0.01mm, and the positional repeatability is ≤±0.006mm, meeting the precision requirements of most 3D printing scenarios, including desktop hobby printing, prototype manufacturing and small-batch production.

3. Durability & service life: After surface strengthening treatment, the wear resistance is 65% higher than that of ordinary trapezoidal nuts, and the service life can reach more than 3.5 years under normal use and regular maintenance; the built-in precision spring adopts high-elasticity alloy material, which can resist fatigue deformation, ensuring long-term stable anti-backlash performance.

4. Wide compatibility & easy installation: The standardized flange design of the Anti-Backlash Trapezoidal Nut for 3D Printer Builds is compatible with mainstream 3D printer models (such as Creality Ender series, Prusa, Anycubic), and is perfectly matched with 8mm T8 and other common trapezoidal lead screws in 3D printers, which can be directly installed and replaced without modifying the original equipment structure, improving installation efficiency.

Maitu’s Core Advantages in 3D Printer Anti-Backlash Components

1. Scenario-oriented R&D capability: Our R&D team has 7 senior engineers with more than 7 years of experience in 3D printer transmission components, focusing on the R&D and optimization of anti-backlash technology for 3D printing scenarios, mastering core technologies such as split-type thread design and spring preload calibration, and optimizing the product structure according to the characteristics of 3D printer transmission to avoid excessive torque and noise.

2. Strict quality inspection process: Equipped with professional production lines and precision testing equipment for 3D printer anti-backlash nuts, each product undergoes strict backlash detection, spring preload test, wear test and high-temperature resistance test before leaving the factory, with a qualification rate of 100%, ensuring that each nut can meet the stable operation requirements of 3D printers.

3. Rich customization experience: Having provided customized anti-backlash solutions for more than 2,800 3D printer manufacturers and users, we have rich experience in matching different types of 3D printers (FDM, SLA, SLS), and can customize products according to the specific parameters and print requirements of your equipment, ensuring perfect adaptation.

4. Authoritative certification & market recognition: Passed ISO 9001 quality management system certification and RoHS environmental certification, with a number of patents related to anti-backlash transmission technology, serving domestic and foreign 3D printer brands and hobby users, and the products have been highly recognized for their stability and cost-effectiveness.

Customization Process & Full-Service Support

1. Demand communication & program design: Our professional technical team provides one-on-one consultation, deeply understands your 3D printer model, print precision, Z-axis load, installation space and other requirements, and provides targeted product customization plans, including material selection, preload intensity adjustment and structural design, to ensure the product matches your equipment perfectly.

2. Sample trial production & performance testing: According to the confirmed customization plan, we complete 2D/3D drawing design, carry out sample trial production, and test the sample on the corresponding 3D printer to verify the anti-backlash effect, transmission smoothness and installation compatibility, and adjust and optimize until it meets your requirements before mass production.

3. Packaging & transportation protection: Adopt anti-static, moisture-proof and anti-collision packaging, which can effectively prevent the Anti-Backlash Trapezoidal Nut for 3D Printer Builds from being damaged during transportation and avoid static electricity affecting the electronic components of the 3D printer; cooperate with professional logistics companies to ensure timely and safe delivery of products.

4. Efficient delivery commitment: Standard models suitable for mainstream 3D printers are in stock, with a delivery time of 1-3 working days; customized products are delivered within 6-10 working days, effectively shortening your equipment maintenance and upgrade cycle, ensuring the normal progress of 3D printing work.

5. After-sales service & technical support: Provide 24-month quality guarantee period, professional technicians provide online and on-site technical support, timely solve the installation, debugging and use problems of the product; provide free replacement of damaged parts (including springs) within the guarantee period, ensuring worry-free use.

Installation Guide & Daily Maintenance Tips

1. Installation steps: Before installation, clean the thread surface of the nut and the matching lead screw with a lint-free cloth dipped in anhydrous ethanol to remove dust, oil stains and consumable residues, ensuring tight meshing; install the nut on the lead screw smoothly, adjust the preload intensity according to the equipment requirements, and firmly fix the flange to the 3D printer’s moving part to avoid loose installation that affects the anti-backlash effect.

2. Regular maintenance: It is recommended to check the backlash, spring preload status and thread cleanliness every 2.5 months (adjust according to the printing frequency); if consumable residues or dust are found, clean them in time; add a small amount of special lubricating oil every 5 months to reduce friction and extend the service life of the nut and lead screw.

3. Storage requirements: Store in a clean, dry and anti-static environment (temperature 10-25℃, humidity ≤40%), avoid contact with high temperature, corrosive substances and 3D printing consumables, prevent thread deformation and spring fatigue, and ensure the anti-backlash performance of the product.

4. Usage precautions: During the operation of the 3D printer, avoid excessive load on the Z-axis and violent movement of the X/Y axis, and do not disassemble the nut at will to prevent damage to the split-type structure and spring; avoid foreign objects entering the thread gap to prevent transmission jamming and affect print precision.

Applicable 3D Printer Models & Application Scenarios

1. Desktop FDM 3D printers: Applicable to the Z-axis lifting mechanism and X/Y axis feed mechanism of desktop FDM 3D printers (such as Creality Ender 3/5, Prusa i3), effectively eliminating backlash, ensuring stable layer thickness and precise positioning, improving the surface finish of printed models, and suitable for hobby printing, DIY production and small-batch trial production.

2. Industrial FDM/SLA/SLS 3D printers: Suitable for the precision transmission mechanism of industrial-grade 3D printers, with stable anti-backlash performance and high load-bearing capacity, adapting to the long-term continuous printing needs of industrial production, ensuring the consistency and dimensional accuracy of printed parts, and applicable to prototype manufacturing, mold making and industrial parts production.

3. Hobby & DIY 3D printers: The Anti-Backlash Trapezoidal Nut for 3D Printer Builds is suitable for customized DIY 3D printers and hobbyist equipment, with cost-effective advantages and easy installation and maintenance, which can effectively upgrade the print precision of the equipment without high cost, meeting the needs of hobbyists for high-quality printing.

4. Educational & research 3D printers: Applicable to 3D printers used in education and scientific research fields, with stable performance and adjustable preload intensity, which can meet the different precision requirements of teaching demonstration and scientific research experiments, and help improve the efficiency and quality of teaching and research.

FAQ & Technical Support

1. What is the difference between this anti-backlash trapezoidal nut and the zero-play trapezoidal nut for 3D printers? The zero-play nut pursues absolute clearance-free (0μm), which is suitable for high-precision printing scenarios but has higher cost; this product adopts spring preload compensation technology, which can flexibly eliminate backlash (0.005-0.01mm), with more reasonable cost and stronger adaptability, suitable for most 3D printing scenarios, and easier to maintain.

2. Can this product be adapted to the 8mm T8 lead screw commonly used in 3D printers? Yes, our standard models are perfectly compatible with 8mm T8 trapezoidal lead screws (2mm pitch, 8mm lead) commonly used in 3D printers, and can also be customized according to other specifications of lead screws to ensure direct installation and matching.

3. Can the preload intensity be adjusted after installation? Yes, the product is designed with an adjustable preload structure, which can flexibly adjust the spring preload intensity according to the 3D printer’s load and print precision requirements after installation, balancing anti-backlash effect and transmission smoothness.

4. How to judge whether the anti-backlash effect of the nut is normal during use? After installation, manually move the 3D printer’s Z-axis and X/Y axis, and there should be no obvious clearance or shaking; during printing, observe the layer thickness consistency and model surface smoothness, if there is no layer misalignment or step lines, it indicates that the anti-backlash effect is normal.

5. What is the service life of the built-in spring? The built-in precision spring adopts high-elasticity alloy material, which can maintain stable performance for more than 3.5 years under normal use, and can be replaced independently when worn, reducing the maintenance cost of the product.

6. Do you provide technical guidance for bulk orders? Yes, for bulk orders, we will send professional technicians to provide on-site installation, debugging and maintenance guidance, and provide detailed installation and maintenance manuals, ensuring that the Anti-Backlash Trapezoidal Nut for 3D Printer Builds can play the best anti-backlash performance in your 3D printers.
