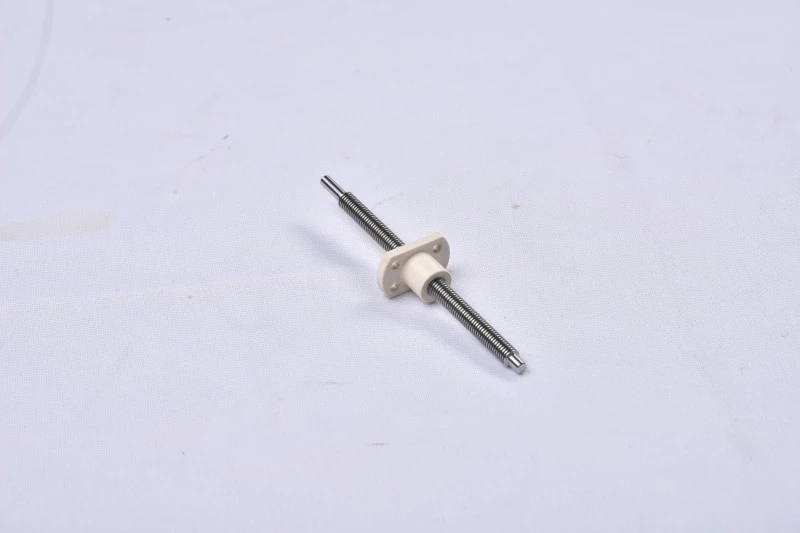

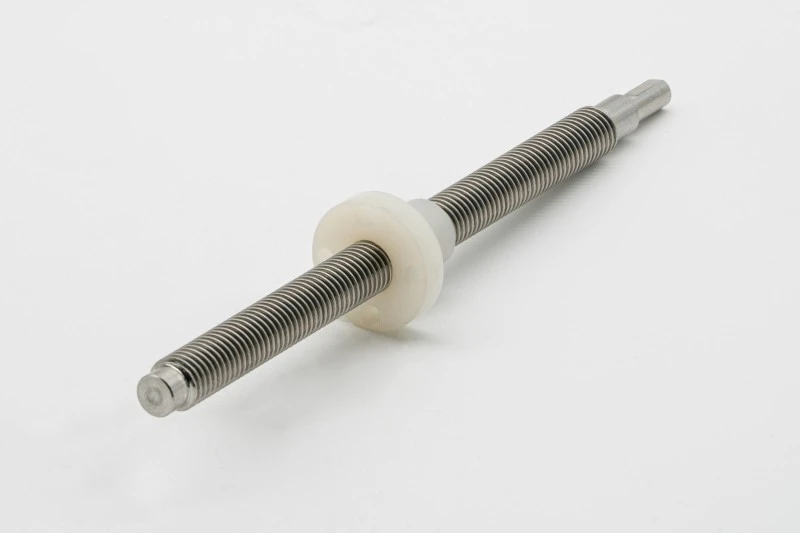

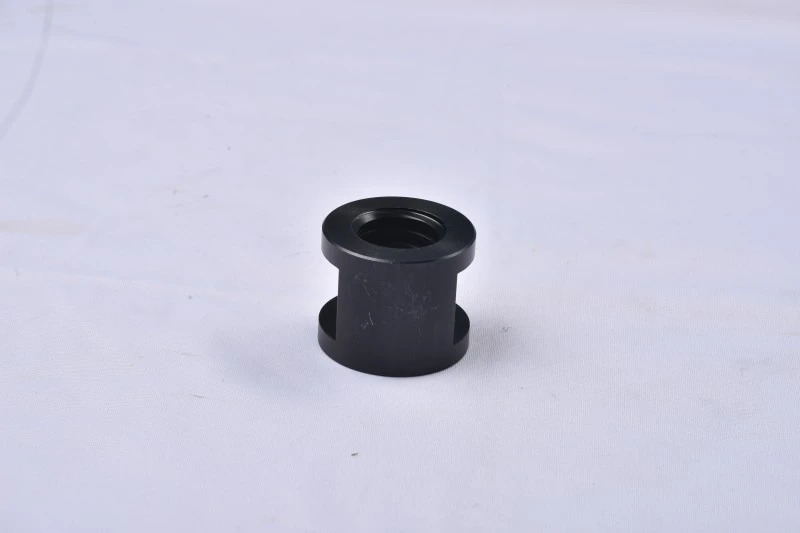

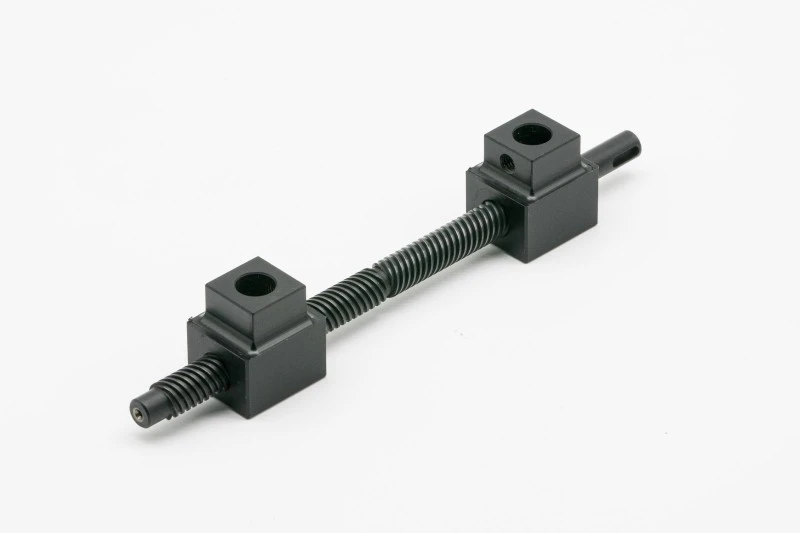

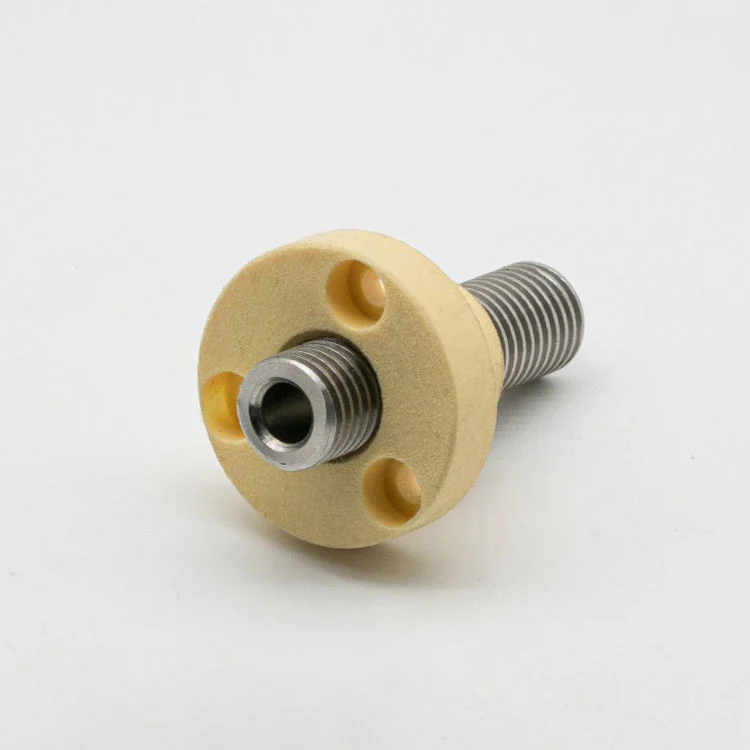

Peek Trapezoidal Screw Nut for Power Supplies

Adopting micro-precision thread shaping technology and anti-static surface treatment, the Maitu factory's Peek Trapezoidal Screw Nut for Power Supplies achieves zero clearance fit with the screw, ensuring smooth and non-jitter transmission even during long-term low-speed operation (≤150 RPM), which is consistent with the low-speed heavy-load transmission characteristics of power supply equipment. Its integrated anti-dust structure prevents electrical dust and debris from entering the thread gap, avoiding transmission jamming and contact failure.

Product Parameter Table

Core Performance Breakthroughs

1. Ultra-High Electrical Insulation: The product is made of power-supply-specific modified PEEK material, with electrical insulation resistance up to 10¹⁴Ω·cm and breakdown voltage ≥35kV/mm, fully complying with IEC electrical safety standards. It effectively isolates electrical circuits, prevents leakage and short-circuit risks caused by transmission component contact, and ensures the safe operation of power supply equipment—solving the key safety hazard of traditional metal nuts being prone to electrical conduction.

2. Stable Low-Speed Load Transmission: Optimized for the low-speed continuous operation characteristics of power supply equipment (≤150 RPM), the product adopts precision thread shaping technology to achieve zero clearance fit with the screw, ensuring smooth, non-jitter transmission even under long-term low-speed load. Its low friction coefficient (0.09-0.26) reduces energy loss, avoiding transmission jamming and switching failure caused by wear—common issues in power supply transmission systems.

3. Anti-Corrosion & Anti-Dust Protection: Equipped with anti-static and anti-corrosion surface treatment, the product can resist mild corrosive media (such as electrical cleaning agents) and prevent electrical dust accumulation. This avoids material degradation and thread blockage caused by dust and corrosion, ensuring stable transmission performance in power supply cabinets and harsh outdoor power supply environments, and reducing equipment failure rate.

4. Compact & Lightweight Design: With a density of only 1.32g/cm³, the product features a compact structural design, perfectly adapting to the narrow installation space of power supply cabinets, UPS power supplies, and power transformers. Its excellent mechanical properties (tensile strength of 98-118MPa) ensure stable load-bearing capacity despite its small size, meeting the low-load, high-stability transmission needs of power supply equipment without increasing the overall weight of the device.

5. Long-Life & Low-Maintenance: The modified PEEK material has excellent wear resistance, which is 3-4 times that of ordinary PEEK materials and 4-5 times that of traditional plastic nuts. Under normal use and regular maintenance, the service life can reach 9-13 years, effectively reducing the frequency of component replacement and maintenance costs for power enterprises—addressing the pain point of frequent maintenance of power supply transmission components.

Applicable Power Supply Scenarios

1. UPS Power Supplies: Widely used in the transmission mechanism of UPS power supplies, including the switching mechanism of backup power supply and the adjustment mechanism of voltage stabilizers. The Peek Trapezoidal Screw Nut for Power Supplies’ high electrical insulation and stable transmission ensure smooth switching between main power and backup power, avoiding power supply interruption caused by transmission failure, and ensuring the normal operation of key equipment.

2. Power Transformers: Suitable for the transmission and adjustment mechanism of power transformers, such as the position adjustment of iron cores and windings. Its compact design fits the internal structure of transformers, while its anti-corrosion and dust-proof performance adapts to the long-term stable operation of transformers in power stations, avoiding transmission jamming caused by dust accumulation.

3. Switching Power Supplies: Applied to the transmission mechanism of switching power supplies, including the adjustment of output voltage and current. The product’s low friction and stable transmission ensure precise adjustment of electrical parameters, improving the stability and efficiency of switching power supplies, and reducing energy loss during operation.

4. Distribution Cabinets & Power Control Panels: Ideal for the transmission mechanism of distribution cabinets, power control panels, and circuit breakers, such as the opening and closing mechanism of circuit breakers and the adjustment mechanism of contactors. Its high electrical insulation and anti-dust design prevent electrical leakage and contact failure, ensuring the safe and stable operation of power distribution systems.

5. Outdoor Power Supply Equipment: Customizable to match the transmission needs of outdoor power supply equipment, such as solar power inverters, wind power control systems, and outdoor distribution boxes. Its anti-corrosion, anti-dust, and high-temperature resistance (continuous use temperature up to 250℃) adapt to harsh outdoor environments, ensuring stable transmission in extreme weather conditions.

Our Core Competence

- Power-Specific R&D Strength: We have a dedicated R&D team focusing on power supply transmission components, mastering the core technology of modified PEEK materials for power supply scenarios. We deeply understand the safety and stability requirements of power supply equipment, and conduct targeted optimization of product insulation, dust resistance, and transmission performance to ensure full compatibility with power supply operating environments.

- Strict Electrical Safety Testing: From raw material selection to finished product delivery, we implement a full-process quality control system, with professional electrical safety testing equipment to detect insulation resistance, breakdown voltage, and anti-static performance. Each product passes strict safety tests before leaving the factory, ensuring compliance with IEC electrical safety standards and avoiding safety hazards in power supply systems.

- Rich Matching Experience: We have provided customized PEEK transmission components for more than 3,000 power supply manufacturers, power stations, and electrical equipment integrators worldwide, covering UPS power supplies, transformers, and distribution systems. We have rich experience in matching different types of power supply equipment and can quickly respond to personalized customization needs.

- Safety-First Product Design: Our product design of this Peek Trapezoidal Screw Nut for Power Supplies adheres to the "safety first" principle, integrating electrical insulation, anti-dust, and anti-corrosion functions into the overall structure, effectively solving the core pain points of power supply transmission. Compared with ordinary industrial components, our products are more targeted to power supply scenarios, ensuring the safe and stable operation of power supply equipment.

- Professional Technical & After-Sales Support: Our after-sales team has professional knowledge of power supply equipment, providing 24-hour technical consultation and on-site service, including product installation guidance, insulation testing, and fault handling. We also provide regular maintenance advice to help power enterprises extend product service life and reduce maintenance costs.

Customization & Technical Support System

- Power-Specific Customization Service: According to your power supply equipment drawings, parameters, insulation requirements, and installation space, our technical team will develop exclusive customization plans, including size, thread specification, insulation optimization, and anti-dust structure design. This Peek Trapezoidal Screw Nut for Power Supplies ensures that the product perfectly matches your equipment, meeting the safety and stability requirements of power supply transmission.

- Free Sample Testing & Safety Verification: We provide free sample testing for customers, and can issue professional test reports (including insulation resistance, breakdown voltage, and wear resistance tests) to help customers verify product performance and compatibility with their power supply equipment before placing orders, reducing purchase risks.

- OEM/ODM Cooperation for Power Manufacturers: We support OEM and ODM cooperation models suitable for power supply manufacturers, can customize product packaging and print brand logos, and provide full-process technical support and after-sales service, helping customers build their own brand advantages in the power supply equipment market.

- Electrical Safety Training & Guidance: We provide on-site electrical safety training and technical guidance for customers, helping power enterprises master product installation, insulation testing, and maintenance skills, ensuring the safe operation of products in power supply systems and avoiding safety accidents caused by improper operation.

- Efficient Delivery & Anti-Static Packaging: Equipped with 15 precision production lines, we formulate scientific production schedules according to customer orders, ensuring on-time delivery. We adopt anti-static, dust-proof packaging to avoid product damage and static accumulation during transportation, ensuring that products can be directly installed and used in power supply equipment.

Installation & Maintenance Guidelines

- Safety Installation Requirements: Before installation, cut off the power supply and ensure that the equipment is in a power-off state to avoid electrical safety hazards. Install in a clean, dust-free environment, align the nut with the screw accurately, fasten it with the specified torque, avoid eccentric installation or over-tightening, so as not to damage the thread and affect insulation performance.

- Regular Dust Cleaning: After long-term use, clean the surface of the nut and the thread gap with an anti-static cloth to remove accumulated electrical dust and debris. For outdoor power supply equipment, clean it once a month to avoid thread blockage and contact failure, ensuring stable transmission.

- Storage Conditions: Store the Peek Trapezoidal Screw Nut for Power Supplies in a dry, clean, anti-static warehouse, avoid long-term exposure to humid, high-temperature (exceeding 260℃) or corrosive environments, and prevent material performance degradation and insulation failure, which affects the use effect in power supply equipment.

- Insulation Inspection: It is recommended to inspect the product’s insulation performance every 3-5 months, using a multimeter to detect insulation resistance. If the insulation resistance is lower than 10¹²Ω·cm, stop using it immediately and replace it in time to avoid electrical leakage and short-circuit risks.

- Replacement & Maintenance Tips: When replacing the product, ensure that the new product’s specifications and insulation performance match the original equipment requirements. After replacement, conduct a transmission test and insulation test to ensure that the product operates normally, avoiding transmission jamming and electrical safety hazards.

FAQs

1. How long is the service life of this product in power supply equipment? Under normal use and regular maintenance, the service life of the product can reach 9-13 years, which is 3-4 times longer than that of ordinary plastic nuts and 1.3-1.9 times longer than that of traditional metal nuts, effectively reducing maintenance costs for power enterprises.

2. Can you customize non-standard products according to our power supply equipment design? Yes, we have a professional customization team, which can fully customize products according to your power supply equipment drawings, parameters, insulation requirements and installation space, including size, thread specification and insulation optimization, to ensure perfect matching with your equipment.

3. Is the product suitable for outdoor power supply equipment? Yes, the product is equipped with anti-corrosion, anti-dust and high-temperature resistance functions, which can adapt to harsh outdoor environments (such as high temperature, humidity, and dust), ensuring stable transmission of outdoor power supply equipment such as solar power inverters and wind power control systems.

4. Do I need to conduct regular insulation inspection on the product? Yes, it is recommended to inspect the Peek Trapezoidal Screw Nut for Power Supplies’ insulation performance every 3-5 months. If the insulation resistance is lower than the standard value, replace it in time to avoid electrical safety hazards, which is crucial for the safe operation of power supply equipment.
