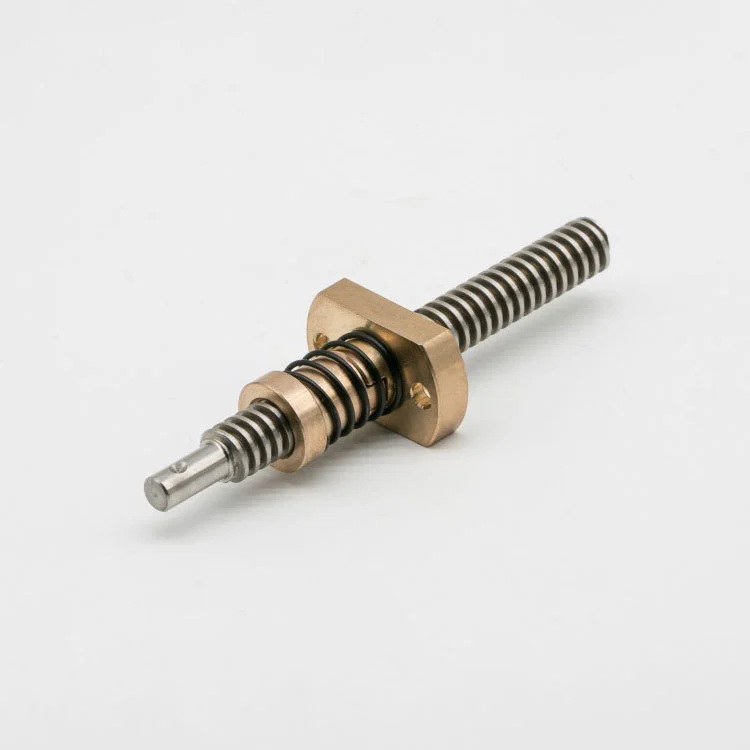

Anti-Backlash Trapezoidal Nut for Lab

Maitu is a professional Anti-Backlash Trapezoidal Nut for Lab manufacturer and supplier. Maitu provides personalized customization solutions according to the actual working requirements of your laboratory equipment. According to the instrument’s positioning precision, transmission speed, load range, installation size and working environment (such as clean laboratory, corrosive reagent environment, low-temperature test environment), we can flexibly customize key parameters such as trapezoidal thread specification (metric/imperial), nut volume, micro-preload force, surface treatment type and interface structure. The product adopts a miniaturized modular design, which is compatible with mainstream trapezoidal lead screws of laboratory precision instruments, and can be directly assembled without modifying the original instrument structure, effectively reducing the difficulty of instrument maintenance and transformation, and ensuring the consistency of instrument performance.

Product Technical Specifications

Core Functional Features & Lab Scenario Adaptability

1. Precision micro-elastic preload, ultra-high anti-backlash accuracy: Adopting the core design of precision micro-elastic preload combined with ultra-precision ground trapezoidal thread, different from the preload structures of previous products, it realizes stable preload control under low-speed and small-load operation, stably controlling axial backlash within 0.001-0.005mm, fundamentally solving the problems of positioning deviation, experimental data error and poor result repeatability caused by axial backlash in laboratory equipment, ensuring the accuracy and reliability of experimental operations.

2. Anti-corrosion & anti-pollution surface treatment, adapting to lab environment: The surface of the Anti-Backlash Trapezoidal Nut for Lab is treated with special anti-corrosion and anti-pollution technology, which can effectively resist the erosion of laboratory corrosive reagents (such as acid, alkali, organic solvents) and avoid dust and impurities adhering to the thread surface, ensuring the cleanliness of the product and preventing pollution to experimental samples, fully adapting to the clean and strict working environment of the laboratory.

3. Low-noise transmission design, avoiding experimental interference: Optimized thread tooth profile design and micro-elastic preload structure, combined with self-lubricating material matching, the transmission noise is controlled below 30dB, avoiding the interference of transmission noise on sensitive experimental instruments and experimental operations, creating a quiet experimental environment, which is especially suitable for precision analytical instruments and micro-manipulation equipment.

4. Miniaturized modular structure, easy to install and maintain: Adopting a miniaturized design, which is suitable for the limited installation space of laboratory precision instruments; the modular interface design is compatible with mainstream trapezoidal lead screws of laboratory equipment, and can be directly assembled without modifying the original instrument structure; the detachable preload adjustment component is convenient for precise adjustment of preload force and daily maintenance, reducing the maintenance cost and difficulty of laboratory equipment.

Performance Indicators & Lab-Grade Quality Control

1. High-purity material selection, meeting lab standards: Adopting high-purity stainless steel (316L) and corrosion-resistant engineering plastics (optional), which have excellent corrosion resistance, wear resistance and biocompatibility, no harmful substances are released during use, and they are in line with the environmental protection requirements of laboratory equipment. Among them, 316L stainless steel is suitable for laboratory equipment in corrosive environments, and corrosion-resistant engineering plastics are suitable for lightweight and low-noise experimental instruments, fully matching the material requirements of different laboratory scenarios, and can be flexibly adjusted in material selection according to the geometric design and use requirements of the instrument.

2. Ultra-high transmission precision, ensuring experimental accuracy: Thread precision reaches ISO 3 level, pitch error is less than ±0.001mm, positional repeatability is ≤±0.002mm, backlash is controllable within 0.001-0.005mm, which is fully in line with the transmission precision requirements of laboratory precision instruments, ensuring that laboratory equipment can achieve micro-precise positioning and stable transmission, improving the accuracy and repeatability of experimental results.

3. Stable environmental adaptability, adapting to diverse lab conditions: The Anti-Backlash Trapezoidal Nut for Lab can maintain stable performance in the temperature range of -10℃ to 100℃, has strong resistance to laboratory corrosive reagents, dust and humidity, and is suitable for various laboratory environments (such as clean laboratories, chemical laboratories, low-temperature laboratories). It can work stably for a long time under low-speed and continuous operation without performance degradation, ensuring the continuous and stable operation of experimental equipment.

4. High reliability, reducing experimental interruption: Equipped with a precise self-locking function, which can effectively prevent the laboratory equipment from slipping during static load and sudden power failure, ensuring the safety of experimental samples and equipment; the product has passed strict precision testing, corrosion resistance testing and noise testing, and can withstand long-term stable operation without structural damage, reducing the frequency of equipment failure and experimental interruption.

Maitu’s Core Strengths

1. Lab-oriented R&D capability: Our R&D team has 6 senior engineers with more than 10 years of experience in laboratory precision transmission components, focusing on the R&D and optimization of anti-backlash technology for laboratory scenarios, mastering core technologies such as precision micro-elastic preload design and anti-corrosion surface treatment, and optimizing the product structure according to the ultra-high precision, low-noise and clean requirements of laboratory equipment, ensuring perfect adaptation to various types of laboratory instruments.

2. Lab-grade production & strict precision testing: Equipped with ultra-precision production lines and professional laboratory precision testing equipment (such as ultra-precision measuring instrument, noise tester, corrosion resistance tester), each product undergoes strict backlash detection, precision testing, noise testing and corrosion resistance testing before leaving the factory, in line with GB/T 17587-2018 and laboratory precision instrument standards, with a qualification rate of 100%, ensuring that each nut meets the high-precision and high-reliability requirements of laboratory equipment. We also strictly control the production process to ensure that the product meets the cleanliness and pollution-free requirements of laboratory use.

3. Rich experience in lab scenario customization: Having provided customized anti-backlash solutions for more than 1,800 scientific research institutions, laboratories and laboratory equipment manufacturers, covering analytical instruments, precision testing equipment, experimental platforms, micro-manipulation equipment and other fields, we have rich experience in matching different laboratory instrument models, and can customize products according to the specific parameters and working conditions of your laboratory equipment, including geometric design, interface structure and material selection.

4. Authoritative certification & market recognition: Passed ISO 9001 quality management system certification, CE laboratory equipment certification and RoHS environmental protection certification, with a number of patents related to laboratory transmission anti-backlash technology, serving domestic and foreign well-known laboratory equipment brands and scientific research institutions, and the products have been highly recognized for their precision, stability and anti-corrosion performance, especially in the field of precision analytical instruments and micro-manipulation equipment.

Customization Process & Lab-Specific Service Support

1. Demand docking & scheme customization: Our professional laboratory technical team provides one-on-one consultation, deeply understands your laboratory equipment’s structural parameters, positioning precision, transmission speed, load range and working environment, and formulates targeted customization schemes, including material selection, micro-preload force adjustment, surface treatment type and structural design, and strictly refers to laboratory precision instrument transmission standards, to ensure the Anti-Backlash Trapezoidal Nut for Lab perfectly matches your laboratory equipment, and can be integrated with adjacent components of the instrument if needed.

2. Sample trial & performance verification: According to the confirmed customization scheme, we complete 2D/3D drawing design, carry out sample trial production, and test the sample on the corresponding laboratory equipment to verify the anti-backlash effect, transmission precision, noise level and installation compatibility, and adjust and optimize until it meets the actual working needs of laboratory equipment before mass production, ensuring that the product does not affect the accuracy of experimental data.

3. Clean packaging & safe transportation: Adopt lab-grade clean anti-collision packaging, which can effectively protect the product from damage during transportation, avoid thread deformation and preload structure damage, and ensure that the product is clean and free of pollution after unpacking, which can be directly installed and used in the laboratory, especially suitable for the transportation of precision laboratory equipment components.

4. Efficient delivery & inventory support: Standard models suitable for mainstream laboratory equipment are in stock, with a delivery time of 1-3 working days; customized products are delivered within 7-10 working days, effectively shortening your laboratory equipment maintenance and transformation cycle, ensuring the normal progress of experimental work.

5. After-sales service & technical guidance: Provide 36-month quality guarantee period, professional laboratory technical personnel provide 24-hour online and on-site technical support, timely solve the installation, debugging, maintenance and use problems of the Anti-Backlash Trapezoidal Nut for Lab; provide free replacement if there is a product quality problem within the guarantee period, and provide professional maintenance guidance to extend the service life of the product and laboratory equipment, and assist in instrument matching and debugging.

Installation & Daily Maintenance Guidelines for Lab Use

1. Standard installation procedures: Before installation, ensure that the operating environment is clean and free of dust; check the cleanliness of the nut and matching lead screw, and use laboratory-grade cleaning agents to remove surface dust, oil stains and other impurities to avoid polluting experimental samples; install the nut on the lead screw smoothly, avoid forced installation to prevent thread damage; adjust the micro-preload force according to the precision requirements of the laboratory equipment, and firmly fix the flange to the instrument’s moving part to avoid loose installation that affects transmission precision and experimental accuracy.

2. Regular maintenance & maintenance: It is recommended to check the backlash, preload status and thread cleanliness every 2 weeks (adjust according to the frequency of use); regularly add laboratory-grade non-polluting lubricating oil to the thread surface to reduce friction and protect the anti-corrosion surface treatment; clean the thread gap regularly with laboratory-specific cleaning tools to avoid foreign objects entering and causing transmission jamming, ensuring long-term stable operation of the product and laboratory equipment.

3. Storage requirements: Store in a clean, dry and dust-free laboratory storage cabinet (temperature 8-22℃, humidity ≤40%), avoid contact with corrosive substances, sharp objects and heavy pressure, prevent thread deformation, preload structure damage and surface corrosion, and ensure the anti-backlash performance and cleanliness of the product, which is especially important for the storage of laboratory equipment spare parts.

4. Usage precautions: During the operation of laboratory equipment, avoid excessive load, violent start and stop, and do not disassemble the nut at will to prevent damage to the preload structure and thread; avoid contact with experimental reagents to prevent corrosion of the Anti-Backlash Trapezoidal Nut for Lab surface; regularly check the self-locking performance to ensure the safety of experimental samples, equipment and operators; after use, clean the product surface in time to maintain cleanliness.

Applicable Laboratory Equipment & Scenarios

1. Precision analytical instruments: Applicable to chromatographs, spectrometers, mass spectrometers and other analytical instruments, with ultra-high precision and low-noise transmission, effectively eliminating axial backlash, ensuring the accuracy of sample analysis and detection, improving the reliability of experimental data, and suitable for chemical, biological, environmental and other scientific research fields.

2. Experimental platforms & micro-manipulation equipment: Suitable for precision experimental platforms, micro-injection instruments, micro-dissection instruments and other equipment, with micro-precise positioning and stable transmission, ensuring the accuracy of micro-operation, reducing experimental errors, and applicable to biological, medical, material science and other research fields.

3. Sample handling & testing equipment: Applicable to automatic sample feeders, precision testing platforms, material testing instruments and other equipment, with anti-corrosion and anti-pollution performance, adapting to the working environment of laboratory sample handling, ensuring stable transmission and accurate positioning, and applicable to various scientific research and testing fields.

4. Other laboratory equipment: Suitable for laboratory incubators, precision regulators, small experimental robots and other equipment, with miniaturized design and strong compatibility, meeting the precision and stability requirements of different laboratory scenarios, and applicable to various scientific research fields such as chemistry, biology, medicine and material science.

FAQs & Technical Support

1. What is the difference between this product and the previous anti-backlash trapezoidal nuts?

This lab-specific version adopts a precision micro-elastic preload structure combined with anti-corrosion and anti-pollution treatment, focusing on ultra-high precision, low noise and clean environmental adaptability, which is specially designed for the working characteristics of laboratory equipment.

2. Can this product be adapted to my existing laboratory equipment’s lead screw?

Yes, our standard models are compatible with mainstream trapezoidal lead screws of laboratory precision instruments, and we can also customize the thread specification, nut size, surface treatment and preload force according to your lead screw parameters and instrument requirements, ensuring direct assembly without modifying the original laboratory equipment structure, and matching the ultra-high precision and low-noise working characteristics of laboratory equipment. We can also adjust the installation interface and geometric design to match the adjacent components of your instrument.

3. How to adjust the preload force to match different laboratory equipment working conditions?

The Anti-Backlash Trapezoidal Nut for Lab is designed with an adjustable precision micro-preload structure, which can flexibly adjust the compression degree of the micro-elastic component according to the positioning precision, transmission speed and load range of your laboratory equipment, balancing anti-backlash effect and transmission smoothness, and adapting to different working conditions of laboratory equipment, ensuring that the transmission precision meets the experimental requirements.

4. How to judge whether the anti-backlash effect of the nut is normal during laboratory use?

After installation, start the laboratory equipment to run at normal speed, observe whether there is abnormal noise and motion jitter; use an ultra-precision measuring instrument to detect the positioning repeatability, if the repeatability error is within ±0.002mm, it indicates that the anti-backlash effect is normal, and the product meets the precision requirements of laboratory equipment.

5. What is the service life of the product under long-term laboratory operation?

The product adopts high-purity anti-corrosion materials and anti-pollution surface treatment, which can maintain stable performance for more than 5 years under long-term low-speed operation (200-500 times/hour) and standard maintenance, which is 40% longer than ordinary anti-backlash nuts, reducing the frequency of component replacement and experimental interruption loss.

6. Do you provide technical support for bulk orders of laboratory equipment?

Yes, for bulk orders, we will send professional laboratory technical personnel to provide on-site installation, debugging and maintenance guidance, and provide detailed installation and maintenance manuals that comply with laboratory equipment standards, ensuring that the product can play the best anti-backlash and transmission performance in your laboratory equipment, and assist in instrument matching and experimental accuracy verification.
