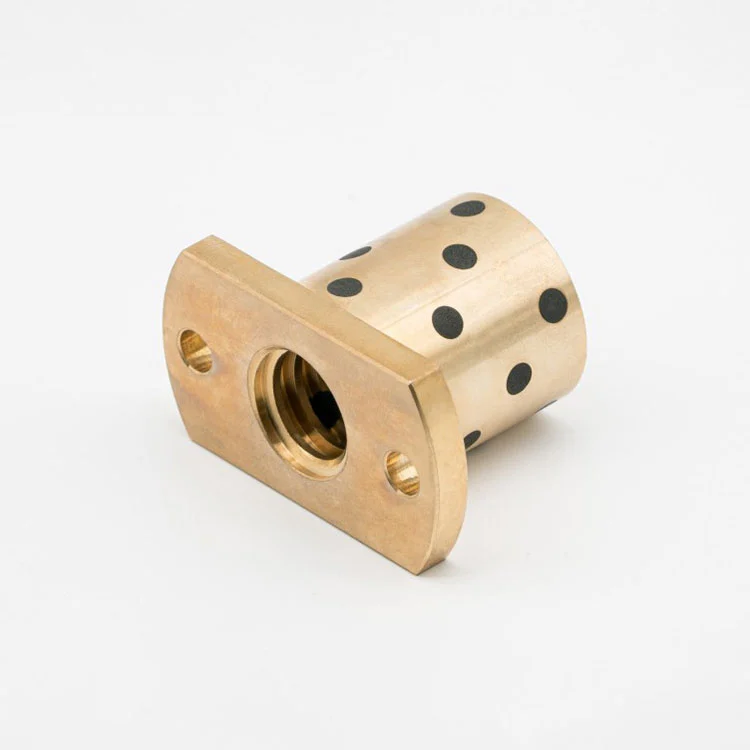

Oil-Free Trapezoidal Nut for Cleanroom Systems

The design of Maitu’s quality Oil-Free Trapezoidal Nut for Cleanroom Systems is rooted in a deep understanding of cleanroom operational constraints: minimizing human intervention, reducing particle generation and ensuring compatibility with cleanroom cleaning and sterilization protocols. Unlike oil-free nuts designed for food or pharmaceutical applications—where hygiene and chemical resistance are the primary focus—this product prioritizes low particle emission, static control (optional) and adaptability to the controlled temperature and humidity environments of cleanrooms.

What sets this nut apart is its optimized structural design, which reduces friction-induced particle generation to a minimum, while the solid lubricant embedding technology ensures consistent performance without the need for any liquid lubricants that could volatilize or leak, contaminating the cleanroom air. Additionally, the nut’s surface is treated with a special anti-static coating (optional) to prevent dust adsorption, further enhancing its suitability for high-precision cleanroom applications where even minute particles can compromise product quality or experimental results.

Key Specifications & Technical Parameters

Outstanding Features

- Low Particle Emission Design: Optimized structural and material selection minimizes friction-induced particle generation, with particle emission levels meeting ISO Class 1 cleanroom requirements, ensuring no contamination of the cleanroom environment or high-precision products/experiments.

- Lubricant-Free & Maintenance-Free Operation: Embedded graphite/PTFE solid lubricants enable continuous dry operation, eliminating the need for liquid lubrication and periodic maintenance—reducing human intervention in cleanrooms and avoiding the risk of lubricant volatilization or leakage.

- Cleanroom-Compatible Surface Treatment: TheOil-Free Trapezoidal Nut for Cleanroom Systems’ surface undergoes precision polishing and optional anti-static coating, preventing dust adsorption and facilitating easy cleaning with cleanroom-compatible cleaners, ensuring compliance with cleanroom hygiene protocols.

- Temperature & Humidity Adaptability: Engineered to maintain stable performance in the controlled temperature (18-24℃) and humidity (45-65%) environments of cleanrooms, with no performance degradation or particle generation under such conditions.

- High Precision & Stability: Precision machining ensures tight dimensional tolerance, enabling accurate motion control and stable transmission, which is critical for high-precision cleanroom equipment such as semiconductor lithography machines and optical polishing equipment.

Target Application Scenarios in Cleanroom Systems

Maitu’s Oil-Free Trapezoidal Nut for Cleanroom Systems is specifically tailored to integrate with various cleanroom systems, addressing the transmission needs of equipment operating in controlled, low-particle environments. Its design ensures compatibility with different cleanroom classes and operational demands, making it applicable across multiple high-precision industries:

- Semiconductor Cleanroom Equipment: Deployed in semiconductor wafer handling robots, lithography machines and wafer inspection equipment, the nut’s low particle emission and precise transmission ensure no contamination of sensitive semiconductor components, supporting the high-precision manufacturing of chips and microelectronics. It is particularly suitable for ISO Class 1-3 cleanrooms where even nanoscale particles can cause product failure.

- Aerospace Component Cleanroom Manufacturing: Applied in the transmission mechanisms of aerospace part assembly machines, precision measuring equipment and material testing devices in cleanrooms, it provides stable, lubricant-free motion control, ensuring the accuracy and cleanliness of aerospace components (such as aircraft engines, satellite parts) during manufacturing.

- Biomedical Cleanroom Systems: Used in cleanroom-equipped biodiagnostic equipment, cell culture workstations and medical device assembly lines, the nut’s zero-contamination design and low particle generation comply with biomedical cleanroom standards, avoiding cross-contamination of biological samples or medical devices.

- Optical Instrument Cleanroom Production: Suitable for the transmission of optical lens polishing machines, laser equipment and optical component assembly lines in cleanrooms, it minimizes particle generation to protect the precision of optical components, ensuring the performance of lenses, prisms and other optical products.

- Microelectronics Cleanroom Automation: Integrated into automated guided vehicles (AGVs), conveyor systems and robotic arms in microelectronics cleanrooms, it enables smooth, low-noise operation without lubricant leakage, supporting 24/7 continuous operation while maintaining the cleanroom’s particle control standards.

- Laboratory Cleanroom Equipment: Applicable to precision laboratory instruments (such as mass spectrometers, chromatographs) and experimental platforms in cleanrooms, the nut’s compact design and maintenance-free operation reduce experimental interference, ensuring the accuracy and reliability of experimental results.

Product Advantages

- Cleanroom Class Compliance: Unlike general oil-free nuts, our product is specifically calibrated for different ISO cleanroom classes (Class 1 to Class 100), with particle emission testing and compatibility validation to ensure seamless integration into various cleanroom systems, eliminating the risk of non-compliance.

- Minimized Operational Disruption: The maintenance-free design reduces the need for equipment disassembly and maintenance in cleanrooms, which can disrupt the controlled environment and generate particles. This ensures continuous operation of cleanroom equipment, improving production efficiency and experimental stability.

- Superior Adaptability to Cleanroom Protocols: The nut’s surface treatment and material selection are compatible with common cleanroom cleaning agents and sterilization methods (such as UV sterilization, wipe disinfection), avoiding material degradation or particle generation during cleaning.

- Customizable for Precision Demands: We offer customized solutions based on the specific cleanroom class, equipment dimensional constraints and load requirements, providing tailored transmission solutions for high-precision cleanroom equipment—from small laboratory instruments to large semiconductor manufacturing machines.

- Cost-Effective Long-Term Operation: The high-durability metallic matrix and solid lubricant design extend the nut’s service life, while the maintenance-free operation reduces labor and maintenance costs. When paired with hard-chrome plated or nitrided mating screws, the entire transmission system’s lifespan is further prolonged, reducing replacement costs.

Factory Services & Support

- Cleanroom-Specific Customization: Our engineering team, with expertise in cleanroom transmission solutions, provides customized nuts based on your cleanroom class, equipment parameters and operational needs. We offer CAD design support and precision machining to ensure perfect integration with your cleanroom systems.

- Free Cleanroom Compatibility Consultation: We provide free professional consultation on product selection, cleanroom class compatibility, particle emission control and maintenance, helping you select the optimal solution for your specific cleanroom environment and equipment.

- Cleanroom-Grade Production & Delivery: All products are manufactured in a clean production environment to avoid pre-delivery contamination. We maintain a stable inventory of standard models for common cleanroom classes, enabling delivery within 3-5 working days; customized products are delivered 30% faster than industry standards.

- Comprehensive After-Sales Support: All the Oil-Free Trapezoidal Nut for Cleanroom Systems come with a quality guarantee. In the event of non-human damage, our after-sales team provides professional maintenance and replacement services, with on-site support available for critical cleanroom equipment to minimize operational disruption.

Performance Metrics

- Particle Emission: ≤ 1 particle (≥0.1μm) per cubic foot, meeting ISO Class 1 cleanroom requirements for standard high-precision models; customizable for lower emission levels based on specific needs.

- Self-Lubricating Performance: Graphite/PTFE solid lubricants provide a stable lubricating film, with a friction coefficient of ≤ 0.15, ensuring smooth, low-noise transmission (≤ 45dB) in cleanroom environments.

- Load-Bearing Capacity: Dynamic allowable thrust ranges from 2.55kN to 33.83kN, meeting the load requirements of various cleanroom equipment—from small laboratory instruments to large semiconductor handling robots.

- Dimensional Precision: Dimensional tolerance of ±0.005mm, ensuring precise motion control and seamless integration with cleanroom equipment, critical for high-precision manufacturing and experimental applications.

- Service Life: Under normal cleanroom operation, the nut has a service life of ≥ 10,000 operating hours, significantly longer than conventional lubricated nuts, reducing replacement frequency and costs.

Maintenance Guidelines

- Cleaning Protocol: Clean the nut’s surface regularly with cleanroom-grade, non-corrosive cleaners (avoiding abrasive agents) using lint-free wipes, to remove any dust or debris without generating particles. Cleaning frequency can be adjusted based on cleanroom class (weekly for Class 1-3, monthly for Class 5-100).

- Avoid Overload Operation: Do not operate cleanroom equipment beyond the nut’s specified load limit, as this may cause structural damage, increase particle generation and affect transmission precision—compromising cleanroom product quality or experimental results.

- Periodic Inspection: Conduct quarterly inspections (in Class 1-3 cleanrooms) or semi-annual inspections (in Class 5-100 cleanrooms) to check thread wear, solid lubricant integrity and connection tightness. If abnormal noise or transmission deviation is detected, stop equipment operation immediately for inspection.

- Storage Requirements: When not in use for an extended period, store the nut in a clean, dry, dust-free container (compatible with cleanroom storage standards), avoiding dampness, corrosion and collision. Prior to reinstallation, clean and inspect the nut to ensure no contamination.

- Mating Screw Maintenance: Pair the nut with hard-chrome plated or nitrided trapezoidal screws to minimize friction and particle generation. Regularly inspect the screw’s surface condition and clean it with cleanroom-grade cleaners to ensure optimal matching performance.

- Professional Replacement: For complex faults such as thread damage or solid lubricant failure, engage professional technical personnel wearing cleanroom-compatible attire to perform replacement. Ensure the replaced nut undergoes particle emission testing before reinstallation in the cleanroom.

FAQ

1. What cleanroom classes is this nut compatible with?

Answer: Maitu’s Oil-Free Trapezoidal Nut for Cleanroom Systems is compatible with ISO Class 1 to Class 100 cleanrooms. Standard models are calibrated for specific classes, and we can customize products to meet the particle emission requirements of your unique cleanroom environment.

2. Does this nut generate particles during operation?

Answer: No. The nut is designed with low particle emission in mind—optimized friction control and material selection minimize particle generation, with emission levels meeting the requirements of the targeted cleanroom class, ensuring no contamination of the environment or products.

3. Can it be used in cleanrooms with strict temperature and humidity control?

Answer: Yes. The nut is engineered to maintain stable performance in the standard cleanroom environment (18-24℃, 45-65% humidity), with no performance degradation or particle generation under these controlled conditions. For extreme temperature/humidity cleanrooms, we offer customized material solutions.

4. Is the nut compatible with cleanroom cleaning and sterilization methods?

Answer: Absolutely. The nut’s surface treatment is compatible with common cleanroom cleaning agents and sterilization methods (UV sterilization, wipe disinfection with cleanroom-grade cleaners), avoiding material damage or particle generation during routine cleaning.

5. How to select the right model for my cleanroom equipment?

Answer: Provide our team with your cleanroom class, equipment’s dimensional parameters (P, D, L1, etc.), load requirements and operational scenario. Our engineers will conduct professional matching analysis and recommend the optimal standard or customized model, with CAD support for integration.

6. Does the nut require any maintenance in cleanrooms?

Answer: No. The embedded solid lubricant system enables maintenance-free operation, eliminating the need for periodic oiling or disassembly—reducing human intervention in cleanrooms and avoiding operational disruption.
