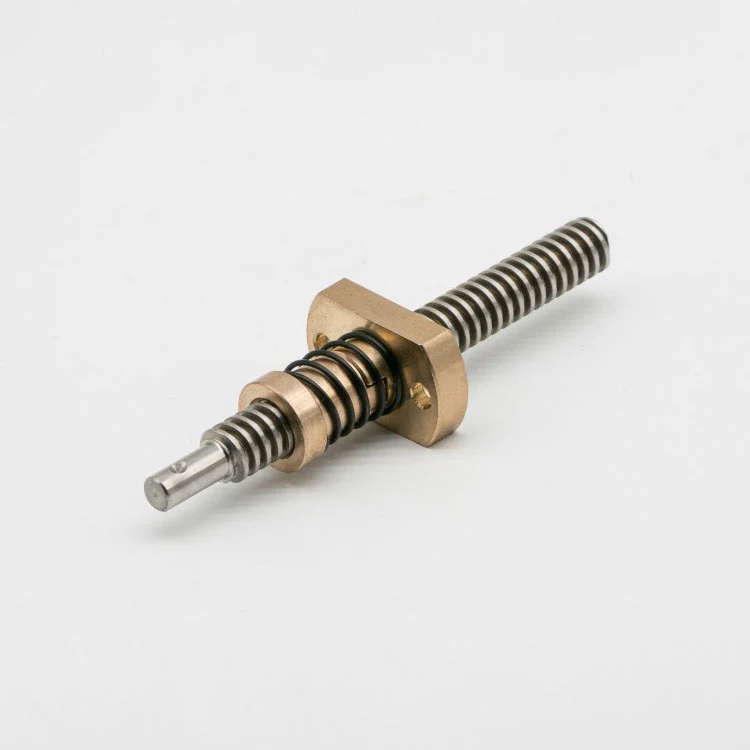

Anti-Backlash Trapezoidal Nut for Positioning Systems

As a high-quality Anti-Backlash Trapezoidal Nut for Positioning Systems factory, Maitu provides customized solutions tailored to specific positioning scenarios. According to your positioning system type (linear guide positioning, ball screw positioning, gear rack positioning), rated load, positioning repeatability requirements, working temperature range and installation space constraints, we can flexibly customize key parameters such as trapezoidal thread specification (metric/inch), nut structural size, O-ring preload intensity, material hardness and surface treatment process.

The product adopts a modular design, which is compatible with mainstream positioning system transmission components, and can be directly assembled with lead screws, guide rails and other parts without major modifications to the original system, effectively reducing the difficulty of system upgrade and transformation. It is specially designed to avoid 3D printing defects such as model layer misalignment, wall unevenness and dimensional deviation caused by nut backlash, and is widely applicable to various 3D printer transmission mechanisms, becoming a cost-effective precision component to enhance print stability and model quality.

Product Technical Specifications

Note: * indicates special specifications, which can be customized according to your positioning system type, load level, positioning precision and installation space. We can flexibly adjust the O-ring preload intensity and thread precision to match the low-speed, high-precision positioning needs of different systems, ensuring that the axial backlash is effectively controlled and the transmission stability is maintained, which is in line with the working principle of anti-backlash transmission in positioning systems.

Core Functional Advantages & Positioning System Adaptability

1. Dual-elastic O-ring preload for precise anti-backlash: Adopting the core design of dual-elastic O-ring preload combined with integrated trapezoidal thread, different from the split-type spring structure, it realizes circumferential and radial composite preload force to suppress axial backlash, which can stably control the backlash within 0.003-0.008mm, fundamentally solving the problem of positioning deviation and repeatability reduction caused by axial backlash in positioning systems, ensuring high-precision positioning of the system every time.

2. High load-bearing capacity & stable transmission: Targeting the high-load working characteristics of positioning systems, the Anti-Backlash Trapezoidal Nut for Positioning Systems is made of high-strength materials and precision machining, with strong static and dynamic load-bearing capacity, which can bear large axial thrust without deformation, and maintain stable transmission even under long-term low-speed operation (line speed ≤10mm/s), avoiding positioning drift caused by load change, which is suitable for low-speed high-precision positioning scenarios.

3. Low-noise & low-friction operation: The integrated thread structure and special surface lubrication treatment effectively reduce the friction between the nut and the lead screw, the operation noise is less than 45dB, which is suitable for the quiet operation requirements of precision positioning systems (such as laboratory positioning equipment, medical positioning instruments), and avoids noise interference affecting positioning accuracy.

4. Self-adjusting preload & long-term stability: The dual-elastic O-ring has excellent fatigue resistance and self-adjusting performance, which can automatically compensate for the tiny wear of the thread during long-term use, maintain stable preload force, and ensure that the anti-backlash effect is not attenuated after 12,000+ hours of continuous operation, realizing long-term stable positioning performance for the whole service life.

Key Performance Indicators & Quality Assurance System

1. Positioning-oriented material selection: Optional high-strength reinforced POM (self-lubricating, low-friction) and wear-resistant bronze alloy (high load-bearing, corrosion-resistant) materials, among which reinforced POM is suitable for light-load precision positioning systems (such as electronic component positioning), and bronze alloy is suitable for heavy-load positioning systems (such as mechanical arm positioning, warehouse shelf positioning), fully matching the load and precision requirements of different positioning scenarios.

2. Precision indicators for positioning: Thread precision reaches ISO 3 level, higher than the precision level of ordinary trapezoidal nuts, pitch error is less than ±0.003mm, positional repeatability is ≤±0.005mm, backlash is controllable within 0.003-0.008mm, which is better than the general repeat positioning precision of trapezoidal lead screws (±0.1~0.5mm), meeting the high-precision positioning requirements of most industrial and precision equipment.

3. Durability & service life: After special surface hardening treatment, the surface hardness of the Anti-Backlash Trapezoidal Nut for Positioning Systems reaches HRC 58-62, the wear resistance is 80% higher than that of ordinary trapezoidal nuts, and the service life can reach more than 5 years under normal use and regular maintenance, adapting to the long-term continuous operation needs of positioning systems, reducing the frequency of component replacement and maintenance cost.

4. Environmental adaptability: The product can maintain stable performance in the temperature range of -20℃ to 150℃, has strong resistance to dust, oil pollution and mild corrosion, and is suitable for various harsh positioning environments (such as industrial workshops, outdoor positioning equipment), avoiding performance degradation caused by environmental factors.

Maitu’s Professional Strength in Positioning System Components

1. Positioning system-specific R&D capability: Our R&D team has 9 senior engineers with more than 9 years of experience in precision positioning and transmission components, focusing on the R&D and optimization of anti-backlash technology for positioning scenarios, mastering core technologies such as dual-elastic O-ring preload design and thread precision machining, and optimizing the product structure according to the low-speed, high-precision characteristics of positioning systems to ensure perfect adaptation.

2. Strict quality testing system: Equipped with professional precision testing equipment (such as laser displacement sensor, torque tester), each product undergoes strict backlash detection, load-bearing test, noise test and high-temperature resistance test before leaving the factory, with a qualification rate of 100%, ensuring that each nut can meet the high-precision and high-stability requirements of positioning systems.

3. Rich customization experience for positioning systems: Having provided customized anti-backlash solutions for more than 3,200 positioning system manufacturers and users, covering linear positioning, rotary positioning, lifting positioning and other scenarios, we have rich experience in matching different types of positioning systems, and can customize products according to the specific parameters and working conditions of your system.

4. Authoritative certification & industry recognition: Passed ISO 9001 quality management system certification, RoHS environmental certification and ISO 13485 medical device quality management system certification, with a number of patents related to positioning system anti-backlash technology, serving domestic and foreign precision positioning equipment brands, and the products have been highly recognized for their precision and stability.

Customization Process & Full-Cycle Service Guarantee

1. Demand diagnosis & scheme customization: Our professional technical team provides one-on-one demand communication, deeply understands your positioning system type, load level, positioning precision, working environment and installation space, and formulates targeted customization schemes, including material selection, preload intensity adjustment and structural design, to ensure the Anti-Backlash Trapezoidal Nut for Positioning Systems perfectly matches your positioning system.

2. Sample development & performance verification: According to the confirmed customization scheme, we complete 2D/3D drawing design, carry out sample trial production, and test the sample on the corresponding positioning system to verify the anti-backlash effect, load-bearing capacity, positioning precision and operation stability, and adjust and optimize until it meets your requirements before mass production.

3. Packaging & transportation protection: Adopt shock-proof, moisture-proof and anti-corrosion packaging, which can effectively prevent the product from being damaged during transportation, avoid thread deformation and O-ring damage, and ensure that the product performance is not affected when it arrives at the destination.

4. Efficient delivery guarantee: Standard models suitable for mainstream positioning systems are in stock, with a delivery time of 1-3 working days; customized products are delivered within 8-12 working days, effectively shortening your system upgrade and maintenance cycle, ensuring the normal operation of the positioning system.

5. After-sales support & technical guidance: Provide 36-month quality guarantee period, professional technicians provide 24-hour online and on-site technical support, timely solve the installation, debugging and use problems of the product; provide free replacement if there is a product quality problem within the guarantee period, and provide regular maintenance guidance to extend the service life of the product.

Installation & Daily Maintenance Guidelines

1. Installation steps: Before installation, clean the thread surface of the nut and the matching lead screw with a lint-free cloth dipped in industrial alcohol to remove dust, oil stains and other impurities, ensuring tight meshing; install the nut on the lead screw smoothly, avoid forced installation, adjust the preload intensity according to the system positioning requirements, and firmly fix the flange to the positioning system’s moving part to avoid loose installation that affects positioning precision.

2. Regular maintenance: It is recommended to check the backlash, O-ring status and thread cleanliness every 4 months (adjust according to the operation frequency); if dust or oil stains are found, clean them in time; add a small amount of high-temperature resistant lubricating oil every 6 months to reduce friction, protect the thread and O-ring, and ensure long-term stable operation.

3. Storage requirements: Store in a clean, dry and low-temperature environment (temperature 5-20℃, humidity ≤35%), avoid contact with high temperature, corrosive substances and sharp objects, prevent thread deformation, O-ring aging and surface damage, and ensure the anti-backlash performance of the Anti-Backlash Trapezoidal Nut for Positioning Systems.

4. Usage precautions: During the operation of the positioning system, avoid excessive load, violent movement and sudden stop, and do not disassemble the nut at will to prevent damage to the O-ring and thread structure; avoid foreign objects entering the thread gap to prevent transmission jamming and positioning deviation.

Applicable Positioning System Types & Application Fields

1. Linear positioning systems: Applicable to linear guide positioning systems, linear module positioning systems (such as industrial linear slides, precision linear stages), effectively eliminating axial backlash, ensuring stable linear positioning precision, and suitable for electronic component assembly, precision measuring instruments, laser cutting positioning and other scenarios.

2. Rotary & lifting positioning systems: Suitable for rotary positioning platforms, lifting positioning mechanisms (such as mechanical arm lifting, warehouse shelf positioning), with high load-bearing capacity and stable anti-backlash performance, ensuring precise rotary and lifting positioning, and applicable to automated production lines, logistics warehousing positioning, mechanical processing equipment and other fields.

3. Precision medical positioning systems: Applicable to medical positioning equipment (such as medical imaging positioning, surgical robot positioning), with high precision, low noise and stable performance, meeting the strict positioning requirements of the medical field, ensuring the safety and accuracy of medical operations.

4. Industrial automation positioning systems: Suitable for industrial automation positioning equipment (such as CNC machine tool positioning, automatic loading and unloading positioning), adapting to the long-term continuous operation needs of industrial scenes, ensuring the consistency and precision of positioning, improving production efficiency and product quality.

Common Problems & Professional Technical Support

1. What is the difference between this product and the anti-backlash trapezoidal nut for 3D printers?

The 3D printer version adopts a split-type spring preload structure, focusing on cost-effectiveness and easy maintenance; this Anti-Backlash Trapezoidal Nut for Positioning Systems adopts a dual-elastic O-ring preload design, focusing on high precision, high load-bearing and long-term stability, which is specially adapted to the low-speed, high-precision and high-load characteristics of positioning systems, and can better suppress axial backlash.

2. Can this product be adapted to my existing positioning system’s lead screw?

Yes, our standard models are compatible with mainstream trapezoidal lead screws used in positioning systems, and we can also customize the thread specification and nut size according to your lead screw parameters, ensuring direct assembly without modifying the original system structure.

3. How to adjust the preload intensity to match different positioning precision requirements?

The product is designed with an adjustable preload structure, which can flexibly adjust the compression degree of the dual-elastic O-ring according to the positioning precision and load requirements of your system, balancing anti-backlash effect and transmission smoothness, and adapting to different positioning scenarios.

4. How to detect whether the anti-backlash effect of the nut is normal during use?

After installation, manually move the positioning system’s moving part, and there should be no obvious clearance or shaking; use a precision measuring instrument to detect the positioning repeatability, if the repeatability error is within ±0.005mm, it indicates that the anti-backlash effect is normal.

5. What is the service life of the dual-elastic O-ring?

The dual-elastic O-ring adopts high-temperature resistant and fatigue-resistant material, which can maintain stable performance for more than 5 years under normal use, and can be replaced independently when aging, which is convenient and quick, and reduces maintenance cost.

6. Do you provide on-site installation and debugging services for bulk orders?

Yes, for bulk orders, we will send professional technicians to the site to provide installation, debugging and maintenance guidance, and provide detailed operation manuals and maintenance plans, ensuring that the Anti-Backlash Trapezoidal Nut for Positioning Systems can play the best anti-backlash and positioning performance in your system.
