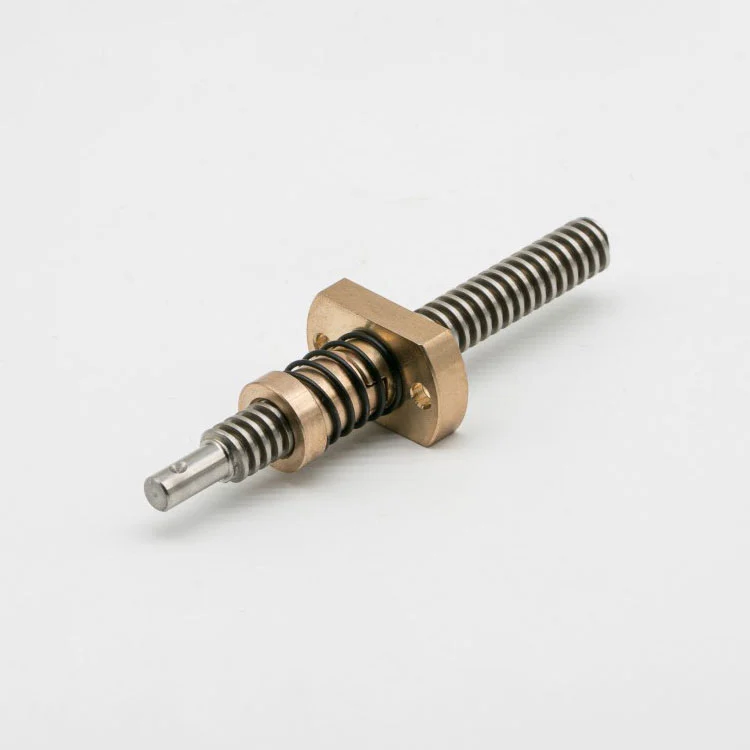

Anti-Backlash Trapezoidal Nut for Automation

As an Anti-Backlash Trapezoidal Nut for Automation manufacturer, Maitu adheres to the concept of scenario-based customization, and provides targeted customization solutions according to the actual working needs of your automation equipment. According to the equipment’s load range, transmission speed, positioning precision requirements, installation interface size and working environment (such as high dust, high temperature, high humidity), we can flexibly customize key parameters such as trapezoidal thread specification (metric/imperial), nut structure type, composite preload force, wear-resistant coating type and overall size. The product adopts a universal modular interface design, which is compatible with mainstream trapezoidal lead screws of automation equipment, and can be directly assembled without modifying the original equipment structure, effectively reducing the difficulty and cost of equipment transformation and upgrade.

Product Technical Specifications

Note: * indicates special specifications, which can be customized according to the structural design, load range, transmission speed and positioning precision requirements of your automation equipment. We can flexibly adjust the composite preload force, wear-resistant coating type and thread precision, and strictly follow GB/T 17587-2018 and industrial automation transmission standards for production, to match the high-frequency, high-load and high-efficiency working needs of different automation equipment, ensuring stable transmission, low wear and long service life. At the same time, we can provide large-size thread specifications and high-temperature resistant coating according to your requirements, further improving compatibility with heavy-duty automation equipment.

Key Functional Advantages & Adaptability to Automation Scenarios

Composite elastic preload, stable anti-backlash for high frequency: Adopting the core design of composite elastic preload combined with precision ground trapezoidal thread, different from the preload structures of previous products, it realizes stable preload control under high-frequency reciprocating motion, stably controlling axial backlash within 0.003-0.010mm, fundamentally solving the problems of positioning deviation, motion jitter and transmission efficiency reduction caused by axial backlash in automation equipment, ensuring the stability and consistency of automated production operations.

Wear-resistant coating reinforcement, long service life: The thread surface is coated with industrial-grade wear-resistant and self-lubricating coating, which effectively reduces friction between the nut and the lead screw, improves wear resistance and corrosion resistance, adapts to the high-frequency reciprocating and variable load working characteristics of automation equipment, and the service life is increased by more than 30% compared with ordinary anti-backlash nuts, reducing the frequency of component replacement and equipment downtime loss.

High load-bearing capacity, adapting to variable load operations: Optimized structural design, using high-strength alloy materials, with excellent load-bearing performance and impact resistance, can adapt to the variable load working conditions of automation equipment (dynamic allowable thrust up to 850N), ensuring stable transmission without deformation even under heavy load, and meeting the transmission requirements of heavy-duty automation equipment such as robotic arms and automatic handling equipment.

Modular universal design, easy to assemble and maintain: Adopting a modular interface design, which is compatible with mainstream trapezoidal lead screws of automation equipment, and this Anti-Backlash Trapezoidal Nut for Automation can be directly assembled without modifying the original equipment structure; the detachable preload adjustment component is designed to facilitate the adjustment of preload force and daily maintenance, reducing the maintenance difficulty and cost of automation equipment.

Performance Parameters & Industrial-Grade Quality Assurance

High-strength material selection: Adopting high-strength alloy steel (40Cr) and stainless steel (304) (optional), which have excellent mechanical properties, wear resistance and corrosion resistance. Among them, 40Cr alloy steel is suitable for heavy-duty automation equipment (such as robotic arms, CNC machine tools), and 304 stainless steel is suitable for automation equipment in high humidity, high corrosion environments (such as food processing automation lines), fully matching the material requirements of different automation scenarios, and referring to the material selection standards of industrial automation transmission components.

Efficient transmission precision: Thread precision reaches ISO 4 level, pitch error is less than ±0.003mm, positional repeatability is ≤±0.005mm, backlash is controllable within 0.003-0.010mm, which is fully in line with the transmission precision requirements of automation equipment, ensuring that automation equipment can achieve precise positioning and efficient transmission, improving production efficiency and product qualification rate.

Environmental adaptability & stability: The product can maintain stable performance in the temperature range of -20℃ to 150℃, has strong resistance to industrial dust, oil pollution and chemical reagents, and is suitable for various industrial automation environments (such as workshops, warehouses, high-temperature production lines). It can work stably for a long time under high-frequency reciprocating motion (1000+ times/hour) without performance degradation, ensuring the continuous and stable operation of automation equipment.

Safety & reliability: Equipped with a reliable self-locking function, which can effectively prevent the automation equipment from slipping during static load and sudden power failure, ensuring the safety of equipment operation and the safety of on-site operators; the Anti-Backlash Trapezoidal Nut for Automation has passed strict fatigue test and impact test, and can withstand long-term variable load operation without structural damage, with high reliability.

Maitu’s Core Advantages

1. Automation-oriented R&D capability: Our R&D team has 8 senior engineers with more than 12 years of experience in industrial automation transmission components, focusing on the R&D and optimization of anti-backlash technology for automation scenarios, mastering core technologies such as composite elastic preload design and wear-resistant coating, and optimizing the product structure according to the high-frequency, high-load and high-precision requirements of automation equipment, ensuring perfect adaptation to various types of automation equipment.

2. Industrial-grade production & strict quality testing: Equipped with advanced industrial production lines and professional precision testing equipment (such as precision measuring instrument, fatigue tester, wear tester), each product undergoes strict backlash detection, load test, wear test and environmental adaptability test before leaving the factory, in line with GB/T 17587-2018 and industrial automation standards, with a qualification rate of 100%, ensuring that each nut meets the high-performance and high-reliability requirements of automation equipment.

3. Rich experience in automation scenario customization: Having provided customized anti-backlash solutions for more than 2,300 automation equipment manufacturers, covering automated production lines, robotic arms, CNC machine tools, intelligent storage systems and other fields, we have rich experience in matching different automation equipment models, and can customize products according to the specific parameters and working conditions of your automation equipment.

4. Authoritative certification & market recognition: Passed ISO 9001 quality management system certification, CE industrial product certification and RoHS environmental protection certification, with a number of patents related to automation transmission anti-backlash technology, serving domestic and foreign well-known automation equipment brands, and the products have been highly recognized for their stability, durability and high efficiency, especially in the field of heavy-duty automation and high-precision automation.

Customization Process & Industrial-Grade Service Guarantee

1. Demand communication & scheme design: Our professional automation technical team provides one-on-one consultation, deeply understands your automation equipment’s structural parameters, load range, transmission speed, positioning precision requirements and working environment, and formulates targeted customization schemes, including material selection, preload force adjustment, wear-resistant coating type and structural design, and strictly refers to industrial automation transmission standards, to ensure the product perfectly matches your automation equipment.

2. Sample trial production & performance testing: According to the confirmed customization scheme, we complete 2D/3D drawing design, carry out sample trial production, and test the sample on the corresponding automation equipment to verify the anti-backlash effect, load-bearing capacity, transmission efficiency and installation compatibility, and adjust and optimize until it meets the actual working needs of automation equipment before mass production.

3. Industrial packaging & safe transportation: Adopt industrial-grade anti-collision packaging, which can effectively protect the product from damage during transportation, avoid thread deformation and preload structure damage, and ensure that the Anti-Backlash Trapezoidal Nut for Automation can be directly installed and used after unpacking, especially suitable for bulk transportation of automation equipment components.

4. Efficient delivery & inventory guarantee: Standard models suitable for mainstream automation equipment are in stock, with a delivery time of 1-3 working days; customized products are delivered within 7-10 working days, effectively shortening your automation equipment production and transformation cycle, ensuring the normal operation of production lines.

5. After-sales service & technical support: Provide 30-month quality guarantee period, professional automation technical personnel provide 24-hour online and on-site technical support, timely solve the installation, debugging, maintenance and use problems of the product; provide free replacement if there is a product quality problem within the guarantee period, and provide professional maintenance guidance to extend the service life of the product and automation equipment.

Installation & Daily Maintenance Guidelines

1. Standard installation steps: Before installation, check the cleanliness of the nut and matching lead screw, remove surface dust, oil stains and other impurities; install the nut on the lead screw smoothly, avoid forced installation to prevent thread damage; adjust the composite preload force according to the automation equipment’s load and precision requirements, and firmly fix the flange to the equipment’s moving part to avoid loose installation that affects transmission precision and equipment operation safety.

2. Regular maintenance & maintenance: It is recommended to check the backlash, preload status and thread wear every 1 month (adjust according to the frequency of use); regularly add industrial-grade lubricating oil to the thread surface to reduce friction and protect the wear-resistant coating; clean the thread gap regularly to avoid foreign objects entering and causing transmission jamming, ensuring long-term stable operation of the product and automation equipment.

3. Storage requirements: Store in a clean, dry and well-ventilated industrial warehouse (temperature 10-25℃, humidity ≤45%), avoid contact with high temperature, corrosive substances, sharp objects and heavy pressure, prevent thread deformation, preload structure damage and surface wear, and ensure the anti-backlash performance of the Anti-Backlash Trapezoidal Nut for Automation, which is especially important for the storage of automation equipment spare parts.

4. Usage precautions: During the operation of automation equipment, avoid excessive load, violent start and stop, and do not disassemble the nut at will to prevent damage to the preload structure and thread; avoid foreign objects entering the thread gap to prevent transmission jamming and damage to automation equipment; regularly check the self-locking performance to ensure the safety of equipment operation and on-site operators.

Applicable Automation Equipment & Industrial Scenarios

1. Automated production lines: Applicable to automated assembly lines, automatic feeding lines, automatic packaging lines and other equipment, with stable transmission and high efficiency, effectively eliminating axial backlash, ensuring the consistency of production operations, improving production efficiency and product qualification rate, and suitable for electronics, automobile, food, packaging and other industries.

2. Robotic arms & CNC machine tools: Suitable for industrial robotic arms, CNC lathes, CNC milling machines and other equipment, with high load-bearing capacity and high precision, ensuring precise positioning and stable movement of robotic arms and machine tool spindles, reducing processing errors, and applicable to machinery manufacturing, precision processing and other fields.

3. Intelligent storage & handling equipment: Applicable to automatic stackers, AGV trolleys, intelligent storage racks and other equipment, with strong environmental adaptability and durability, adapting to the high-frequency reciprocating motion of handling equipment, ensuring stable transmission and accurate positioning, and applicable to logistics, warehousing and other industries.

4. Other automation equipment: Suitable for automatic testing equipment, automatic adjustment equipment, linear modules and other equipment, with modular design and strong compatibility, meeting the precision and efficiency requirements of different automation scenarios, and applicable to various industrial fields such as electronics, instrumentation, and new energy.

Frequently Asked Questions

1. Can this product be adapted to my existing automation equipment’s lead screw?

Yes, our standard models are compatible with mainstream trapezoidal lead screws of automation equipment, and we can also customize the thread specification, nut size and wear-resistant coating according to your lead screw parameters, ensuring direct assembly without modifying the original automation equipment structure, and matching the high-load and high-frequency working characteristics of automation equipment.

2. How to adjust the preload force to match different automation equipment working conditions?

The Anti-Backlash Trapezoidal Nut for Automation is designed with an adjustable composite preload structure, which can flexibly adjust the compression degree of the composite elastic component according to the load range, transmission speed and positioning precision requirements of your automation equipment, balancing anti-backlash effect and transmission efficiency, and adapting to different working conditions of automation equipment.

3. How to judge whether the anti-backlash effect of the nut is normal during use?

After installation, start the automation equipment to run at normal speed, observe whether there is motion jitter or abnormal noise; use a precision measuring instrument to detect the positioning repeatability, if the repeatability error is within ±0.005mm, it indicates that the anti-backlash effect is normal, and the product meets the precision requirements of automation equipment.

4. What is the service life of the product under high-frequency operation?

The product adopts wear-resistant coating and high-strength material, which can maintain stable performance for more than 4 years under high-frequency reciprocating motion (1000+ times/hour) and normal maintenance, which is 30% longer than ordinary anti-backlash nuts, reducing the frequency of component replacement and equipment downtime loss.

5. Do you provide technical support for bulk orders of automation equipment?

Yes, for bulk orders, we will send professional automation technical personnel to provide on-site installation, debugging and maintenance guidance, and provide detailed installation and maintenance manuals that comply with industrial automation standards, ensuring that the product can play the best anti-backlash and transmission performance in your automation equipment, and improve production efficiency.
