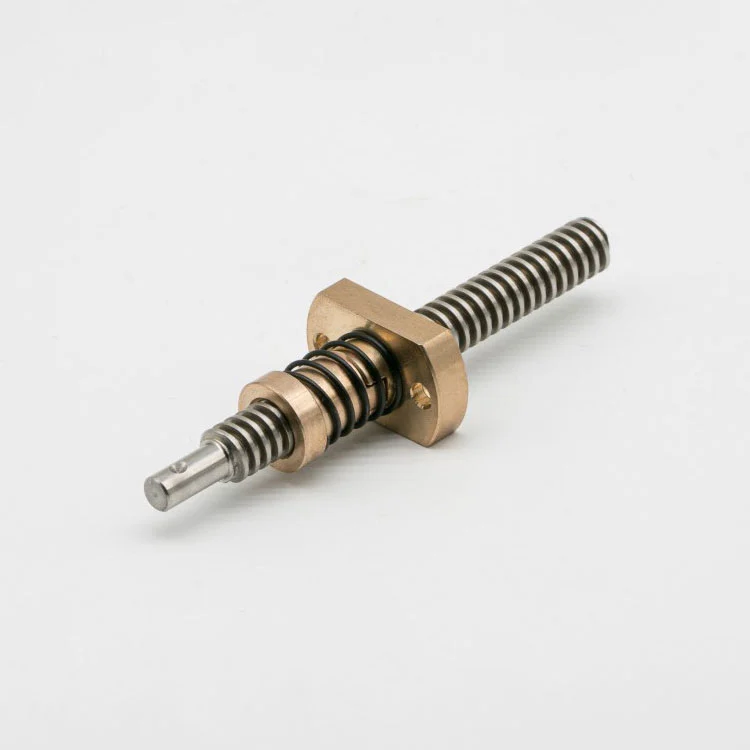

Zero Play Trapezoidal Nut for 3D Printer Builds

Maitu adheres to the "scene-adaptive customization" concept, providing targeted customization services for the Zero Play Trapezoidal Nut for 3D Printer Builds to match the diverse models and working characteristics of 3D printers. According to your 3D printer’s model (FDM, SLA, SLS), Z-axis load, print speed, layer thickness requirements, and installation space constraints, we can customize key parameters including trapezoidal thread specification (metric/inch), nut overall dimension, flange type (integrated/separate), preload intensity, and material type. The product features a lightweight and compact design, which can be directly adapted to the trapezoidal lead screws of mainstream 3D printers, without modifying the original transmission structure, effectively reducing the difficulty of equipment upgrade and maintenance.

Product Technical Specifications

Note: * indicates special specifications, which can be customized according to the 3D printer model, print precision requirements, Z-axis load and installation space. We can also adjust the preload intensity to match the different print speeds and layer thickness needs of FDM, SLA and SLS 3D printers, ensuring optimal zero-play performance.

Core Features & 3D Printing Adaptation Advantages

1. True zero-play precision meshing: Our Zero Play Trapezoidal Nut for 3D Printer Builds adopts dual-section trapezoidal thread meshing structure combined with adaptive preload technology, realizing 0μm axial and radial clearance, fundamentally eliminating the positioning deviation caused by nut backlash in 3D printer Z-axis lifting and X/Y axis feed, avoiding layer shifting and step lines in printed models, and ensuring consistent layer thickness accuracy (≤±0.005mm) throughout the printing process.

2. Low-noise & smooth transmission: Optimized tooth profile design combined with self-lubricating coating technology, the friction coefficient is as low as 0.07-0.10, ensuring smooth and quiet operation during high-speed feed of 3D printers (up to 100mm/s), avoiding vibration and noise that affect print precision, and reducing the load of 3D printer stepping motors.

3. Heat-resistant & dust-proof performance: Targeting the high-temperature environment of 3D printer hot beds (up to 120℃) and the dust generated during printing, the product is treated with high-temperature resistant and dust-proof surface coating, which can maintain stable zero-play performance in the temperature range of -10℃ to 150℃, and effectively prevent dust from entering the thread gap, avoiding transmission jamming.

4. Lightweight & load-adaptive design: Made of high-strength lightweight engineering materials, the weight is reduced by 30% compared with ordinary trapezoidal nuts, adapting to the lightweight demand of 3D printer transmission mechanisms; the adaptive preload structure can automatically adjust the preload intensity according to the Z-axis load change during printing, ensuring stable meshing without excessive torque, protecting the 3D printer lead screw and motor.

Key Performance Indicators & Quality Assurance

1. Material selection for 3D printing scenarios: Optional high-strength engineering plastic (lightweight, self-lubricating) and reinforced bronze alloy (high load-bearing, heat-resistant) materials, among which the reinforced composite material can resist the erosion of 3D printing consumable residues (such as PLA, ABS) and hot bed radiation, ensuring long-term stable use, fully matching the working characteristics of different types of 3D printers.

2. Precision indicators: Thread precision reaches ISO 4 level, pitch error is less than ±0.003mm, zero-play effect is maintained for a long time (no obvious backlash after 10,000+ hours of continuous operation), meeting the high-precision print requirements of small parts, complex structures and prototype manufacturing, and effectively controlling cumulative error during long-distance transmission.

3. Durability & wear resistance: After special surface strengthening treatment, the wear resistance is 70% higher than that of ordinary trapezoidal nuts, and the service life can reach more than 4 years under normal use and regular maintenance, adapting to the long-term continuous printing needs of 3D printers, reducing the frequency of part replacement.

4. Universal compatibility: The standardized flange and interface design of the Zero Play Trapezoidal Nut for 3D Printer Builds is compatible with mainstream 3D printer models (such as Creality, Prusa, Anycubic), and can be directly installed and replaced without modifying the original lead screw and transmission structure, improving the convenience of equipment upgrade and maintenance, and reducing downtime.

Maitu’s Strength in 3D Printer Precision Components

1. 3D printer-specific R&D capability: Our R&D team has 8 senior engineers with more than 8 years of experience in 3D printer transmission components, focusing on solving the zero-play and precision problems of nuts in 3D printing scenarios, mastering core technologies such as adaptive preload calibration and low-noise tooth profile design, and continuously optimizing product adaptability to 3D printers.

2. Strict quality inspection system: Equipped with professional 3D printer component production lines and precision testing equipment, each Zero Play Trapezoidal Nut undergoes zero-play detection, torque test, high-temperature resistance test and wear test before leaving the factory, with a qualification rate of 100%, ensuring that each product meets the high-precision requirements of 3D printing.

3. Customization experience for 3D printers: Having provided customized solutions for more than 3,000 3D printer manufacturers and users, we have rich experience in matching different types of 3D printers (FDM, SLA, SLS), and can customize products according to the specific parameters and print requirements of your 3D printer, ensuring perfect adaptation.

4. Authoritative quality certification: Passed ISO 9001 quality management system certification and RoHS environmental certification, with a number of patents related to zero-play transmission technology, and the products have been highly recognized by domestic and foreign 3D printer manufacturers and professional users, becoming a trusted supplier of 3D printer precision components.

Customization Process & Whole-Process Support

1. Demand docking: Our professional technical team provides one-on-one consultation, deeply understands your 3D printer model, print precision, layer thickness requirements, Z-axis load and installation space, and provides targeted product suggestions and customization plans, ensuring the product matches your equipment perfectly.

2. Customization design & sample testing: According to the confirmed demand, we complete 2D/3D drawing design, select appropriate materials and preload intensity, carry out sample trial production, and test the sample on the corresponding 3D printer to ensure that the zero-play effect and transmission performance meet the print requirements before mass production.

3. Packaging & transportation: Adopt anti-static, moisture-proof and anti-collision packaging, which can effectively prevent the product from being damaged during transportation and avoid static electricity affecting the 3D printer’s electronic components, ensuring the product performance is not affected.

4. Efficient delivery: Standard models suitable for mainstream 3D printers are in stock, with a delivery time of 1-3 working days; customized products are delivered within 7-12 working days, effectively shortening your equipment maintenance and upgrade cycle, ensuring the normal operation of 3D printing work.

5. After-sales service guarantee: Provide 24-month quality guarantee period, professional technicians provide online and on-site technical support, timely solve the installation, debugging and use problems of the product, and provide free replacement if there is a product quality problem within the guarantee period, ensuring worry-free use.

Installation & Daily Maintenance Guide

1. Installation steps: Before installation, clean the thread surface of the nut and the matching lead screw with a lint-free cloth dipped in anhydrous ethanol to remove dust and oil stains, ensuring tight meshing; install the nut on the lead screw smoothly, avoid forced installation, and ensure that the flange is firmly fixed to the 3D printer’s moving part, avoiding loose installation that affects positioning precision.

2. Regular maintenance: It is recommended to check the zero-play effect, thread meshing status and surface cleanliness every 3 months (adjust according to the printing frequency). If dust or consumable residues are found, clean them in time; add a small amount of special lubricating oil every 6 months to ensure smooth transmission and extend the service life of the product and lead screw.

3. Storage requirements: Store in a clean, dry and anti-static environment (temperature 10-25℃, humidity ≤40%), avoid contact with high temperature, corrosive substances and 3D printing consumables, prevent thread deformation and surface damage, and ensure the zero-play performance of the product.

4. Usage precautions: During the operation of the 3D printer, avoid excessive load on the Z-axis and violent movement of the X/Y axis, and do not disassemble the nut at will, so as not to damage the adaptive preload structure and thread, ensuring the long-term stable zero-play performance of the Zero Play Trapezoidal Nut for 3D Printer Builds; avoid foreign objects entering the thread gap to prevent transmission jamming.

Applicable 3D Printer Types & Scenarios

1. FDM 3D printers: Applicable to the Z-axis lifting mechanism and X/Y axis feed mechanism of desktop and industrial FDM 3D printers, eliminating backlash in bidirectional movement, ensuring stable layer thickness and precise positioning, improving the surface finish and dimensional accuracy of printed models (such as PLA, ABS, PETG consumable printing).

2. SLA/SLS 3D printers: The Zero Play Trapezoidal Nut for 3D Printer Builds is suitable for the precision feed mechanism of SLA (stereolithography) and SLS (selective laser sintering) 3D printers, with high positional repeatability and zero-play performance, adapting to the high-precision requirements of resin and powder material printing, ensuring the integrity of complex structural models.

3. Professional 3D printing equipment: Applicable to professional-grade 3D printers for prototype manufacturing, small-batch production, and medical model printing, providing stable zero-play transmission support, ensuring the consistency and precision of printed parts, meeting the high-standard requirements of industrial and medical fields.

4. Customized 3D printers: Suitable for customized 3D printers with special requirements (such as large-format printing, high-speed printing), can be customized according to the specific structure and performance requirements of the equipment, ensuring optimal transmission performance and print quality.

Common Questions & Technical Support

1. What is the difference between this zero-play trapezoidal nut and ordinary trapezoidal nuts for 3D printers?

Ordinary trapezoidal nuts have inherent axial backlash (0.1-0.3mm), which easily causes layer shifting and step lines; our product adopts adaptive preload and dual-section thread meshing design, achieving true zero-play, ensuring consistent positioning precision during printing, and effectively solving common 3D printing defects caused by backlash.

2. Can this product be adapted to my desktop 3D printer (such as Creality Ender series)?

Yes, our standard models are compatible with mainstream desktop 3D printers, and we can also customize the size, flange type and thread specification according to your 3D printer model, ensuring direct installation without modifying the original equipment structure.

3. Will the zero-play design increase the load of the 3D printer’s stepping motor?

No, the adaptive preload structure can automatically adjust the preload intensity according to the load change, balancing zero-play precision and transmission torque, ensuring smooth operation without increasing the motor load, and avoiding motor overheating or damage.

4. How to detect whether the product maintains zero-play performance during use?

You can manually move the 3D printer’s Z-axis and X/Y axis after installation, and there should be no obvious shaking or clearance; during printing, observe the layer thickness consistency and model surface smoothness, which can directly reflect the zero-play effect of the nut.

5. What is the service life of the product in long-term 3D printing operation?

Under normal use and regular maintenance, the service life of the Zero Play Trapezoidal Nut for 3D Printer Builds is more than 4 years, which is 70% longer than that of ordinary trapezoidal nuts, adapting to the long-term continuous printing needs of 3D printers, reducing the frequency of part replacement.

6. Do you provide technical guidance for installation and debugging?

Yes, we provide detailed installation instructions, and our professional technicians can provide online and on-site installation and debugging guidance, especially for bulk orders, we will send technicians to assist in debugging to ensure the product plays the best zero-play performance.
