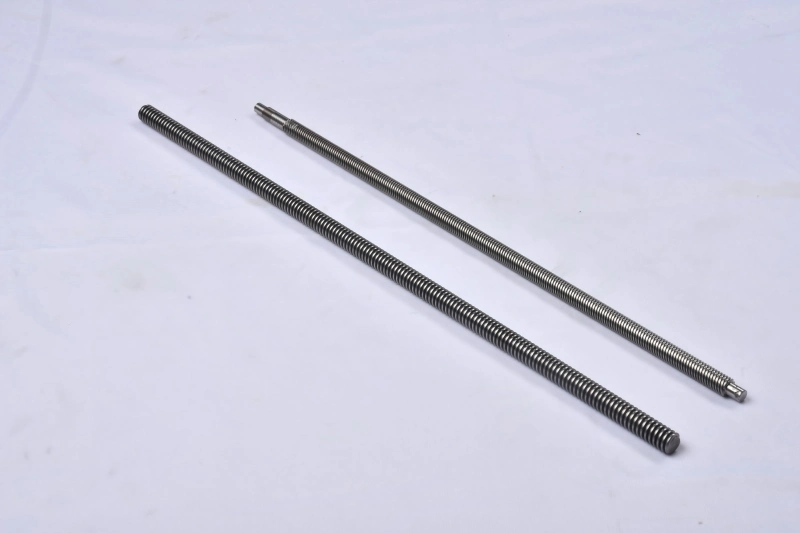

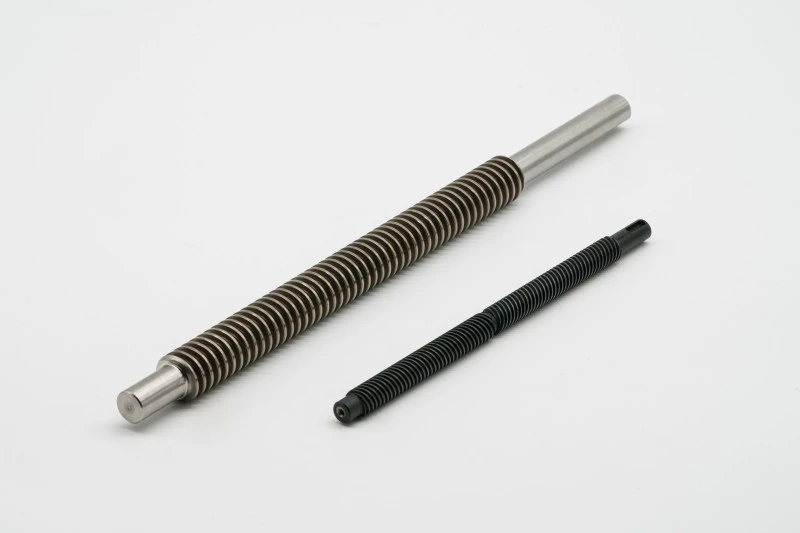

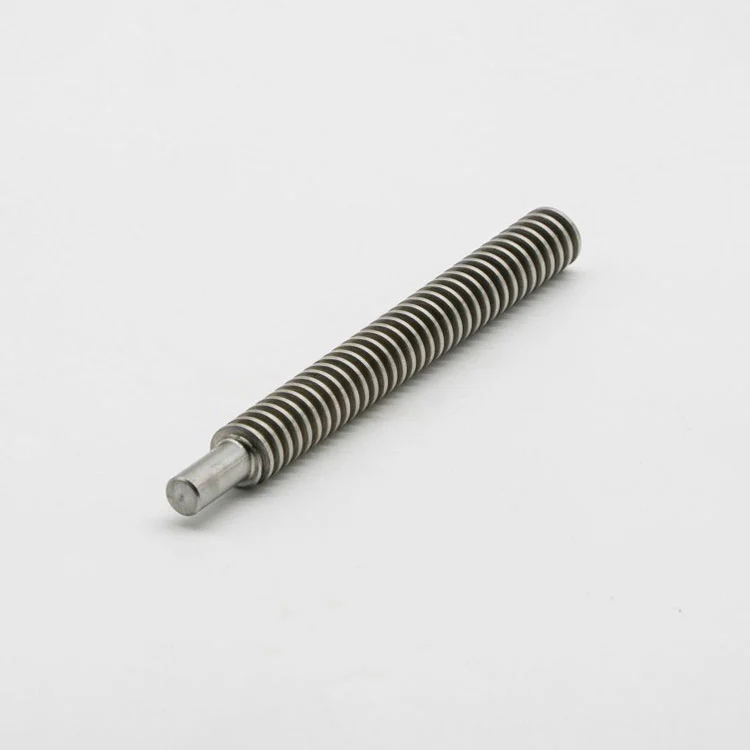

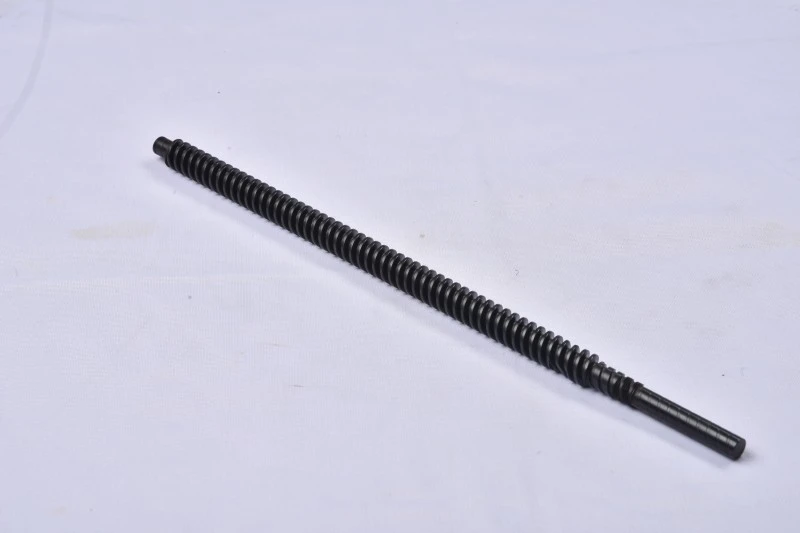

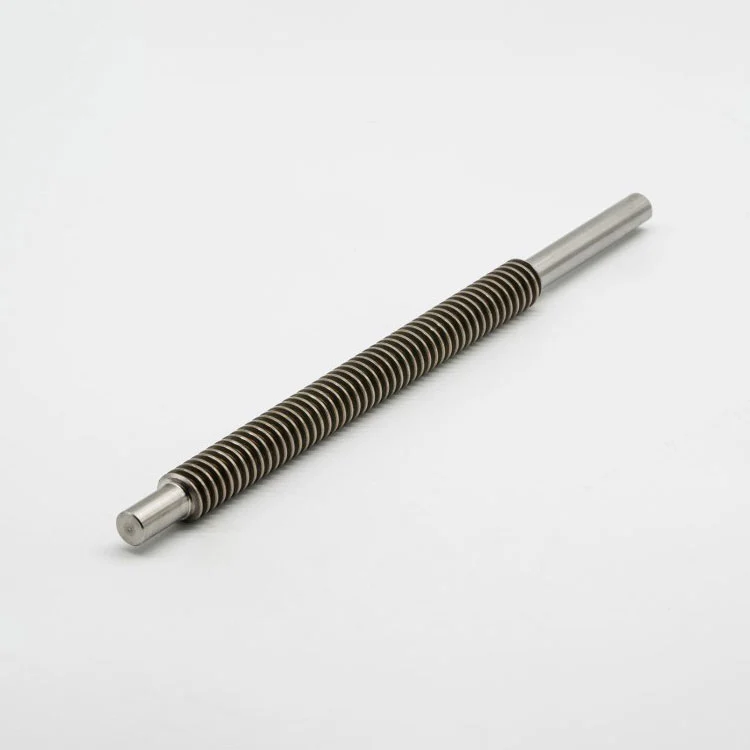

Carbon Steel ACME Trapezoidal Screw

Suzhou Maitu Carbon Steel ACME Trapezoidal Screw made in China represents a robust and cost-effective solution for power transmission in demanding industrial applications. Distinguished from the standard 30° metric trapezoidal screw, the ACME thread features a 29° included thread angle and standardized primarily within the American system. This specific geometry is engineered to deliver enhanced strength and more efficient load distribution, particularly suited for applications involving heavier loads and higher stress levels.

Product Highlights

① Balanced Strength & Cost-Efficiency: Crafted from high-grade carbon steel (e.g., S45C, S50C) with precision forging and heat treatment, the product integrates the 29° ACME thread’s load-bearing superiority with carbon steel’s cost advantage—delivering reliable heavy-load transmission without the premium price of stainless steel, perfectly fitting buyers’ cost-control needs.

② Wear-Resistant Thread Optimization: On the basis of ACME thread’s wide root design, we optimize the thread profile and surface finish, reducing friction between the screw and nut, minimizing wear during high-frequency operation, and ensuring long-term stable transmission in heavy-load scenarios.

③ Global Compatibility & Easy Replacement: Fully compliant with American ACME standards, the product is compatible with most international American-style equipment, and its standardized dimensions enable quick replacement of worn parts, reducing equipment downtime and maintenance costs for global buyers.

④ Environmental Adaptability Enhancement: Targeting carbon steel’s corrosion vulnerability, we adopt customized surface treatment processes (enhanced zinc plating, passivation, etc.) that are more durable than conventional treatments, enabling stable operation in moderate humidity and industrial dust environments.

⑤ Consistent Batch Performance: Through strict raw material screening and precision machining control, each batch of screws maintains consistent dimension accuracy, thread fit, and load-bearing capacity, avoiding performance deviations that affect equipment operation.

Product Characteristic

A significant inherent characteristic of the ACME thread form is its improved fatigue life under repetitive loads. The broader root design of the ACME thread, compared to the standard trapezoidal profile, reduces stress concentration and provides greater durability. However, especially for carbon steel as the base material, the inherent strength of the ACME screw can be significantly compromised by environmental factors like corrosion and wear. Thus, advanced surface treatments are critical as a post-manufacturing process that applies a protective layer, substantially enhancing the Carbon Steel ACME Trapezoidal Screw's longevity and operational reliability.

Customization Services

① Carbon Steel Grade Customization: According to customers’ specific load, temperature, and durability requirements, we provide customized carbon steel grade selection (e.g., S45C for general heavy-load, S50C for high-strength scenarios) and heat treatment customization (quenching, tempering) to optimize mechanical properties.

② Thread & Dimension Customization: Beyond standard parameters, we support non-standard thread design (custom pitch, lead, start number) and end machining customization (threaded ends, chamfering, keyway processing) according to customers’ equipment drawings and installation requirements.

③ Surface Treatment Personalization: Based on application environments, we offer tailored surface treatment solutions—enhanced zinc plating for humid workshops, passivation treatment for light chemical environments, and anti-rust oil coating for long-term storage, ensuring optimal corrosion resistance.

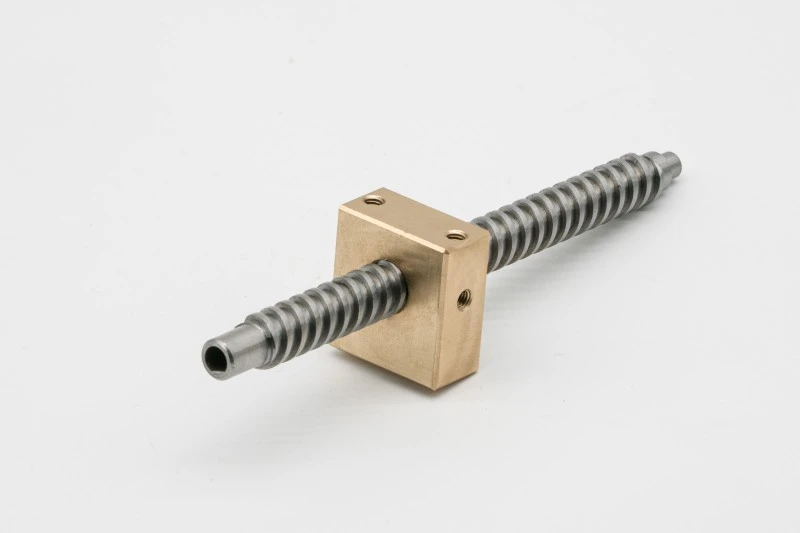

④ Nut-Screw Matching Customization: We customize nut materials (brass, engineering plastic, bronze) and inner thread precision according to the carbon steel screw’s specifications and working conditions, achieving perfect fit and reducing wear, extending the overall service life of the assembly.

⑤ Small-Batch Customization Support: Unlike most manufacturers, we support small-batch customization (MOQ 1 PC) with no extra customization fees, meeting your prototype testing and small-scale production needs.

Factory Advantages

① 12+ Years of Carbon Steel ACME Screw Specialization: We focus exclusively on carbon steel ACME trapezoidal screw R&D and production, with accumulated experience in solving key pain points (e.g., thread precision, surface treatment durability) that other general screw manufacturers cannot match.

② Integrated Production Capacity: From raw material forging, thread rolling, heat treatment to surface treatment, we achieve one-stop in-house production, avoiding quality risks caused by external cooperation and ensuring stable production lead times.

③ Strict Quality Inspection System: Equipped with a 6-person professional QC team and advanced testing equipment (thread gauge, hardness tester, salt spray tester), we implement 3-stage inspection (raw material, semi-finished product, finished product) to ensure each screw meets ISO 9001 standards and customer requirements.

④ Large-Scale Production & Flexible Supply: With 10 professional production lines and two factories (Suzhou, Dongguan), we can handle bulk orders (10,000+ pieces/month) while supporting flexible small-batch production, ensuring on-time delivery for both large and small buyers.

⑤ Professional Technical Support Team: Our 10 senior engineers have rich experience in carbon steel ACME screw customization, providing one-stop technical consultation (scheme design, material selection, installation guidance) and solving customer application problems in real time.

FAQs

1. Can the screws be used in outdoor industrial scenarios with occasional rain?

Yes. We recommend our enhanced zinc plating + passivation surface treatment, which forms a double protective layer that effectively resists rainwater corrosion and outdoor dust erosion; we also provide a 12-month quality guarantee, and can provide salt spray test reports to verify corrosion resistance performance.

2. What is the lead time for small-batch customized carbon steel ACME screws (less than 100 pieces)?

For small-batch customization with standard carbon steel grade and surface treatment, the lead time is 5-7 working days; for non-standard thread or special surface treatment, it is 7-10 working days, and we will feedback the production progress daily.

3. How can ensure the thread precision of customized ACME screws matches our equipment?

Our engineering team will first confirm your equipment drawings and thread parameters, then use high-precision thread rolling machines and GO/NO-GO gauges to control thread precision; we will also send 1-2 samples for your test and verification before bulk production, ensuring perfect matching with your equipment.

4. Do you provide after-sales technical support, such as installation guidance?

Yes. We provide lifelong technical support to the Carbon Steel ACME Trapezoidal Screw: our professional team will provide detailed installation guidelines, and if you encounter installation or operation problems, we can arrange technical personnel to provide online guidance or on-site support (if needed), helping you avoid installation errors and extend product service life.
