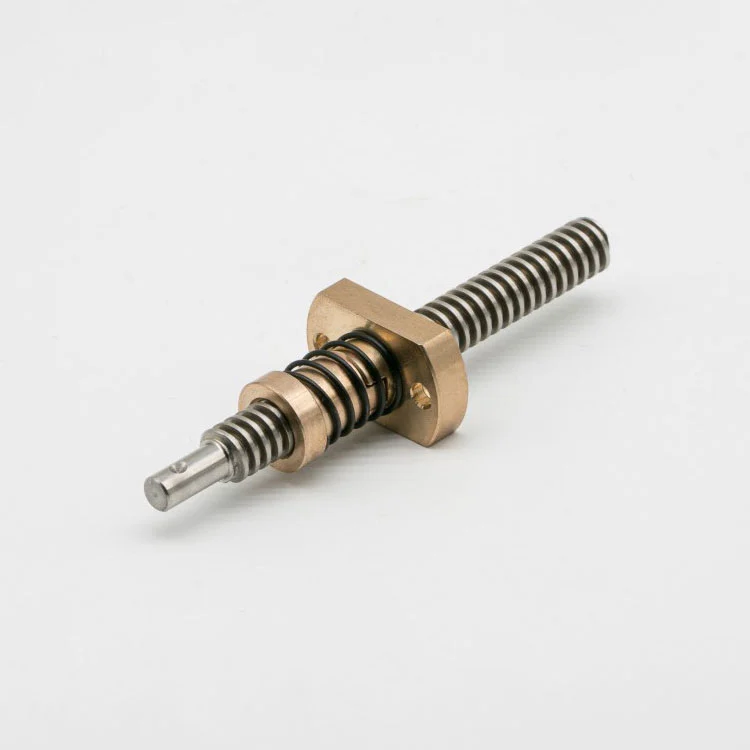

Anti-Backlash Trapezoidal Nut for CNC Machine

Maitu adheres to the concept of "customization for precision matching" and provides comprehensive customization solutions for the Anti-Backlash Trapezoidal Nut for CNC Machine, fully adapting to the diverse models and working conditions of CNC equipment. According to your CNC machine’s load-bearing capacity, machining accuracy grade, working temperature range and installation space, we can customize key parameters including trapezoidal thread specification (30-degree standard trapezoidal or 29-degree ACME), nut overall size, flange structure, preload grade and material selection. The product adopts a compact integrated structure, which can be directly matched with the existing trapezoidal screw of CNC machines, reducing installation modification costs and improving equipment upgrade efficiency.

Product Technical Specifications

Note: * indicates special specifications, which can be customized according to the model, load requirements and positional accuracy demands of your CNC machines. We can also adjust the preload grade (C1/C2/C3) according to your actual application needs to achieve optimal precision and torque balance.

Product Highlights & CNC Adaptation Advantages

1. Integrated trapezoidal anti-backlash design: Adopts one-piece trapezoidal thread structure combined with precision preload calibration, which eliminates axial clearance without additional spring mechanisms, ensuring stable backlash elimination effect, simple structure and strong reliability, and avoiding spring fatigue failure in long-term operation of CNC machines.

2. High-rigidity thread engagement: The trapezoidal thread is processed by precision thread rolling technology, and the tooth profile half-angle is controlled within ±10′, with tooth side straightness up to ±2μm, realizing tight thread engagement with the trapezoidal screw, improving transmission rigidity and resisting cutting reaction force in CNC machining.

3. Precision-Machined Thread Profiles for Smooth Transmission: Equipped with a specialized workshop dedicated to thread tooling, the Anti-Backlash Trapezoidal Nut for CNC Machine utilizes advanced thread profile modification techniques and a precision nut lapping process. This results in a nut surface roughness (finish) of ≤ Ra0.2 and a reduced friction coefficient of 0.09–0.13, ensuring smooth transmission free from jamming or abnormal noise, while effectively lowering energy consumption in CNC motors.

4. Exceptional Environmental Adaptability: The product undergoes specialized surface treatments for corrosion resistance and wear resistance, effectively shielding it from the corrosive effects of cutting fluids, metal chips, and other contaminants prevalent in CNC machining environments. Furthermore, it maintains stable performance across a wide temperature range of -15°C to 250°C, fully meeting the demands for long-term, continuous operation in CNC equipment.

Performance Index & Quality Standards

1. Material selection & performance: Optional high-strength bronze alloy (excellent load-bearing capacity and heat dissipation) and engineering plastic (self-lubricating, lightweight) materials, among which the rare earth alloy material can achieve 3 times the service life of ordinary tin bronze nuts, fully matching the load requirements of different CNC machines.

2. Precision indicators: Thread precision reaches ISO 3 level, pitch error is less than ±0.002mm, backlash can be controlled within 0.008mm, and preload grade can be customized according to needs (C1/C2/C3), meeting the high-precision positioning needs of CNC precision machining such as mold manufacturing and aerospace parts processing.

3. Wear resistance & durability: After surface strengthening treatment, the surface hardness reaches HRC 52-58, the wear resistance is 60% higher than that of ordinary trapezoidal nuts, and the service life can reach more than 6 years under normal use and regular maintenance, adapting to the high-frequency operation characteristics of CNC machines.

4. Installation compatibility: The product adopts standardized flange design, which is compatible with most CNC machine feed mechanisms, and can be directly installed and replaced without modifying the original equipment structure, improving installation efficiency and reducing equipment downtime.

Maitu’s Core Strength in CNC Nut Manufacturing

1. Professional R&D team: Equipped with 10 senior technical engineers with more than 10 years of experience in CNC transmission components, focusing on the R&D and optimization of trapezoidal anti-backlash technology, mastering core technologies such as tooth profile modification and precision preload calibration, and continuously improving product adaptability to CNC machines.

2. Strict quality control system: With 10 professional production lines, advanced thread rolling machines, high-precision CNC lathes and dedicated precision testing workshops, each Anti-Backlash Trapezoidal Nut for CNC Machine undergoes strict thread precision detection, backlash test and wear test before leaving the factory, with a qualification rate of 100%.

3. Rich customization experience: Having produced more than 16,000 types of precision transmission components, we have accumulated rich customization experience for CNC machine-specific nuts, which can be customized according to the specific models of CNC lathes, milling machines and engraving machines, as well as thread types and precision requirements.

4. Authoritative qualification certification: Passed ISO 9001 quality management system certification, with a number of related patents, serving more than 5,000 domestic and foreign customers, including many well-known CNC machine manufacturers, and the products have been highly recognized in the industry.

Customization Process & Full-Process Service

1. Demand communication: Our professional technical team provides one-on-one consultation, deeply understands your CNC machine model, machining accuracy requirements, load parameters and installation space, and provides professional technical suggestions and product solutions.

2. Customization design & sample trial production: According to the confirmed demand, we complete 2D/3D drawing design, select appropriate materials and preload grade, carry out sample trial production, and conduct precision testing to ensure that the sample meets your requirements before mass production.

3. Packaging & transportation guarantee: Adopt moisture-proof, dust-proof and anti-collision packaging, and cooperate with professional logistics companies to ensure that the products are not damaged during transportation, and the product performance is not affected.

4. Efficient delivery commitment: Standard models suitable for common CNC machines are in stock, with a delivery time of 2-5 working days; customized products are delivered within 8-15 working days, which effectively shortens your equipment maintenance and upgrade cycle.

5. After-sales support service: Provide 24-month quality guarantee period, professional technicians provide on-site installation guidance, debugging and maintenance services for bulk orders, and timely solve various problems encountered in product use, ensuring the stable operation of your CNC equipment.

Usage Guidance & Daily Maintenance Tips

1. Installation preparation: Before installation, clean the thread surface of the nut and the matching trapezoidal screw with high-purity alcohol and lint-free cloth to remove dust and oil stains, ensuring tight thread engagement and avoiding precision reduction caused by impurities.

2. Regular inspection: It is recommended to check the thread meshing status, backlash and wear degree every 4 months (adjust according to the operation frequency of CNC machines). If abnormal wear or increased backlash is found, timely maintenance or replacement is required to avoid affecting machining accuracy.

3. Storage requirements: Store in a clean, dry and ventilated environment (temperature 8-22℃, humidity ≤35%), avoid contact with corrosive substances, cutting fluid and metal chips, and prevent thread corrosion and structural damage.

4. Usage precautions: During the operation of CNC machines, avoid excessive load and impact, and do not disassemble the nut at will, so as not to damage the thread structure and preload calibration effect, ensuring the long-term stable operation of the Anti-Backlash Trapezoidal Nut for CNC Machine.

Applicable CNC Equipment & Scenarios

1. CNC lathes: Applicable to the tool rest feed mechanism and spindle positioning mechanism of CNC lathes, eliminating backlash in bidirectional movement, ensuring stable and accurate tool feeding, reducing machining errors, and improving the surface finish of turned parts.

2. CNC milling machines: Used in the workbench feed and spindle lifting mechanisms of vertical and horizontal CNC milling machines, ensuring high-precision positioning during complex curve interpolation and micro-feed, adapting to the needs of precision mold manufacturing and aerospace parts processing.

3. CNC engraving & milling machines: Suitable for the X/Y/Z axis transmission mechanisms of CNC engraving and milling machines, with high positional repeatability and smooth transmission, ensuring the precision and efficiency of fine engraving and milling, and adapting to the processing of small and precise parts.

4. Other precision CNC equipment: Applicable to CNC boring machines, CNC grinding machines, EDM machines and other precision CNC equipment, providing reliable anti-backlash transmission support for linear motion mechanisms, ensuring the stability and accuracy of machining operations.

FAQ & Technical Support

1. What is the difference between this anti-backlash trapezoidal nut and the spring-loaded anti-backlash nut for CNC machines? This product adopts an integrated trapezoidal thread + precision preload calibration design, without additional spring mechanisms, which has simpler structure, stronger reliability and longer service life, and is more suitable for CNC machines that require long-term continuous operation and high rigidity transmission.

2. Can the preload grade of the product be adjusted according to the CNC machining accuracy requirements? Yes, we can provide preload grade customization (C1/C2/C3) according to your CNC machining accuracy and load requirements, realizing the optimal balance between positioning precision and transmission torque, and avoiding excessive torque increase.

3. What is the advantage of tooth profile modification technology adopted by your product? The tooth profile modification technology can effectively solve the problems of thread jamming and abnormal noise caused by inaccurate tooth profile processing, reduce the friction coefficient, improve the smoothness of transmission, and reduce the energy consumption of CNC motors while ensuring precision.

4. How to ensure the consistency of product precision in bulk orders? We rely on self-developed ERP system and strict quality control process, and each batch of Anti-Backlash Trapezoidal Nut for CNC Machine undergoes unified precision testing and preload calibration, ensuring that the precision of each nut is consistent, and the performance of the 1000th nut is the same as that of the first one.

5. Do you provide after-sales maintenance services for bulk orders? Yes, we provide 24-month quality guarantee period. For bulk orders, we will send professional technicians to provide on-site installation, debugging and maintenance guidance, and solve your use problems in a timely manner to ensure the stable operation of your CNC equipment.

6. Can the product be matched with the existing trapezoidal screw of our CNC machine? Yes, we can customize the thread specification, inner diameter and flange size of the nut according to the parameters of your existing trapezoidal screw, ensuring direct matching and installation without modifying the original equipment structure.
